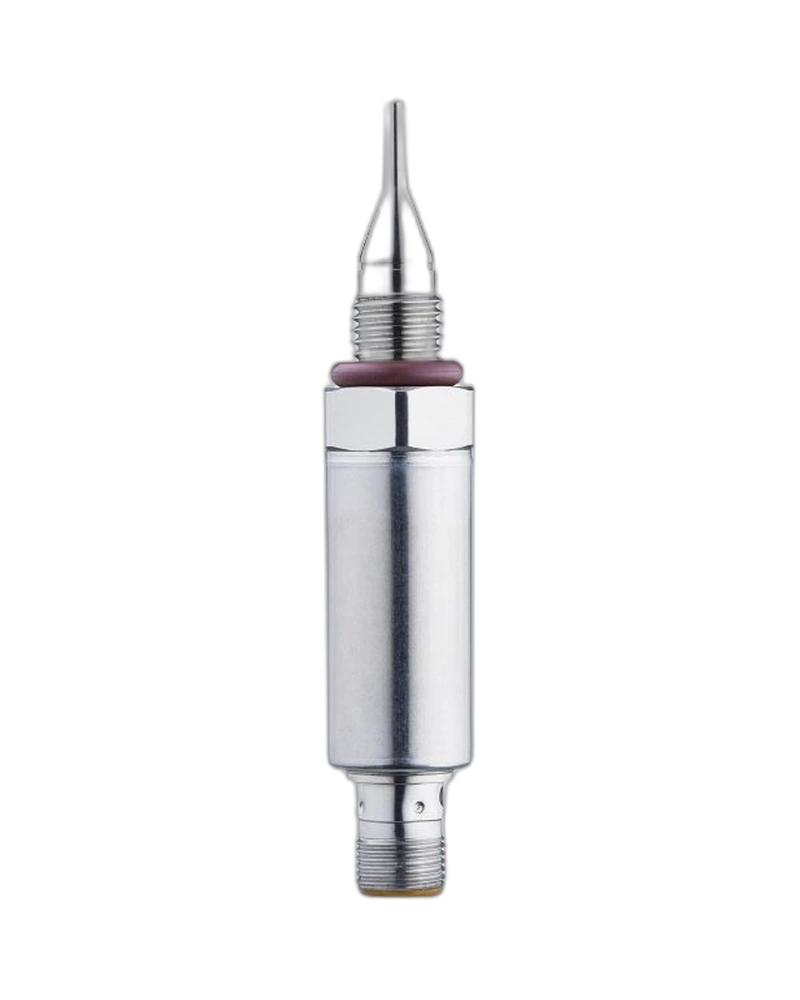

The TA1101 is a compact temperature transmitter designed for hygienic and industrial process applications. It uses a Pt 1000 Class A measuring element according to DIN EN 60751. The transmitter provides a configurable 4...20 mA analogue output together with IO-Link communication. Its M12 × 1.5 external thread and 17 mm installation length allow compact installation in restricted spaces. The -50...200 °C measuring range and 100 bar pressure rating support demanding temperature-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA1101 uses a Pt 1000 Class A sensing element for accurate process-temperature measurement. It supports a -50...200 °C measuring range. The factory setting is -10...150 °C. Analogue output accuracy is specified at ±0.3 K + ±0.1% of the set measuring span. The fast T05/T09 response is below 0.25/1 second.
The transmitter provides one configurable analogue output. The current output is 4...20 mA. IO-Link communication enables remote parameterisation and process-data access. The analogue output resolution is 0.04 K. Short-circuit and overload protection improve operational reliability.
The 17 mm installation length makes the transmitter suitable for compact process installations. Its M12 × 1.5 external thread with sealing cone provides secure process mounting. The device supports liquids and gases. It is rated for up to 100 bar and vacuum resistance down to -1000 mbar. M12 electrical connectivity simplifies industrial integration.
Pt 1000 Class A
-50...200 °C range
Factory setting -10...150 °C
4...20 mA output
IO-Link communication
17 mm installation length
M12 × 1.5 external thread
100 bar pressure rating
Vacuum resistance
0.04 K output resolution
Fast response
Short-circuit protection
Overload protection
IP67/IP68/IP69K
M12 electrical connector
Hygienic processing
Food and beverage equipment
Process pipelines
Liquid temperature monitoring
Gas temperature monitoring
Cooling systems
Heating systems
Process skids
PLC automation
Industrial IoT
Temperature control
Process monitoring
Machine protection
Equipment diagnostics
Industrial automation
| Specification | Details |
|---|---|
| Product Model | TA1101 |
| Type Code | TA-017C1EM12-A-ZVG/US |
| Sensor | Pt 1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50...200 °C |
| Factory Setting | -10...150 °C |
| Installation Length | 17 mm |
| Probe Length | 10.8 mm |
| Probe Diameter | 3 mm |
| Process Connection | M12 × 1.5 external thread |
| Sealing | Sealing cone |
| Pressure Rating | 100 bar |
| Vacuum Resistance | -1000 mbar |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Maximum Load | 250/300 Ω |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Output Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | <0.25 s |
| Response T09 | <1 s |
| Supply | 18...32 V DC |
| Protection | IP67/IP68/IP69K |
