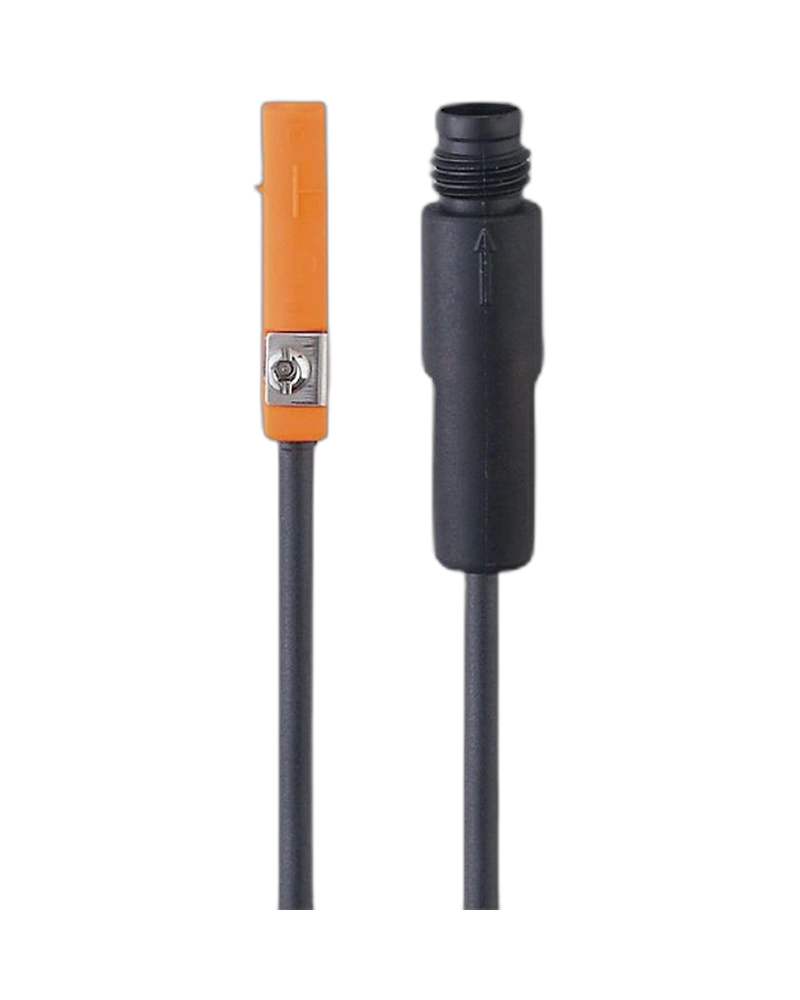

The IFM MK5101 T-slot cylinder sensor provides reliable magnetic position detection for pneumatic cylinders and automated linear movements. The compact sensor can be installed directly into a T-slot and positioned for accurate piston detection. Its 0.3 m PUR cable and connector configuration supports convenient electrical connection in machine installations. The sensor is well suited for packaging, handling, assembly and special-purpose machinery where dependable cylinder feedback is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5101 is designed for compact T-slot pneumatic cylinders where reliable piston position feedback is required. Its magnetic sensing principle detects the piston magnet without physical contact. The sensor can be moved within the slot to establish the required switching position. This provides flexibility during machine setup. Its compact dimensions allow convenient integration into pneumatic equipment.
The sensor uses a 10…30 V DC supply and provides a normally open switching output. The PNP output configuration allows direct integration with many industrial control systems. The sensor supports a high switching frequency for fast repetitive movements. Short-circuit and reverse-polarity protection contribute to reliable operation. These characteristics make it suitable for automated production environments.
The MK5101 uses a 0.3 m PUR cable with an M8 connector arrangement according to the referenced product information. This configuration supports straightforward connection to machine wiring. The cable provides flexibility around the cylinder and sensor installation area. The integrated retention and strain-relief arrangement supports secure mounting. It is suitable for compact pneumatic automation systems.
T-slot cylinder sensor
GMR sensing principle
PNP output
Normally open switching function
10…30 V DC operation
2.8 mT response sensitivity
Travel speed above 10 m/s
High switching frequency
0.3 m PUR cable
Compact sensor design
Packaging machinery
Handling equipment
Assembly machines
Pneumatic automation
Pick-and-place systems
Special-purpose machines
Linear actuator monitoring
Machine sequencing
Industrial production lines
Cylinder position feedback
| Specification | Details |
|---|---|
| Product Code | MK5101 |
| Model | MKT3028BBPKG/G/0,3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Operating Principle | GMR cell |
| Cylinder Type | T-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms max. |
| Voltage Drop | 2.5 V max. |
| Output Current | 100 mA max. |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Dimensions | 25 x 5 x 6.5 mm family design |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Connection | M8 connector |
| Brand | IFM |
