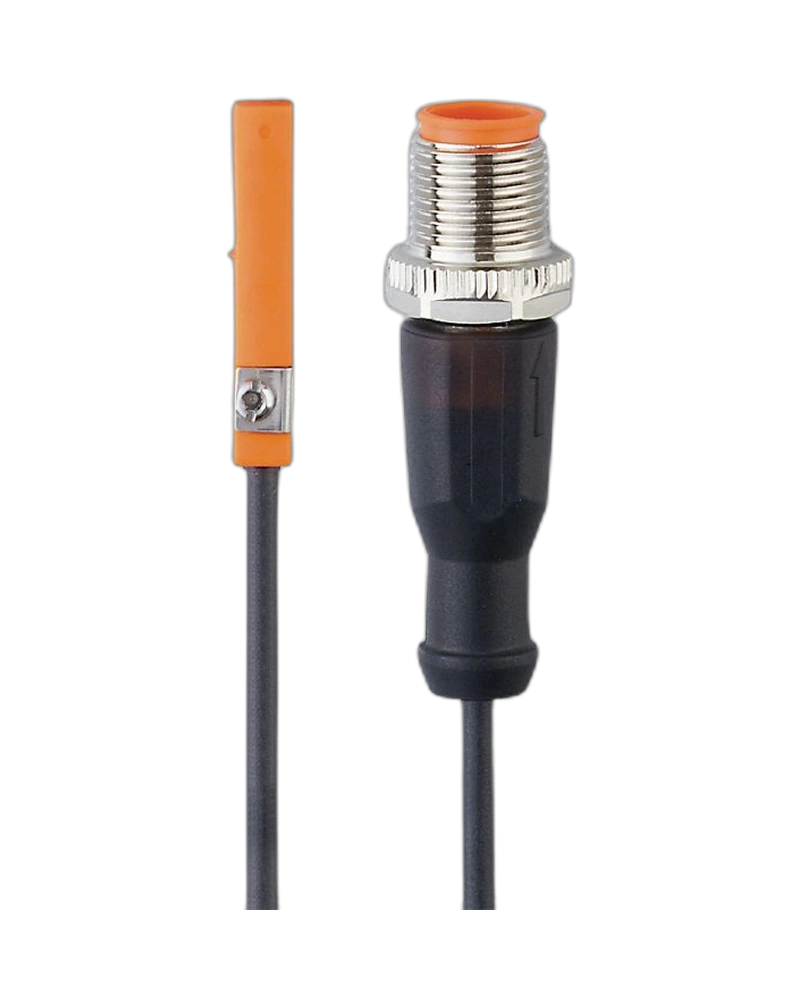

The IFM MR0129 T-slot cylinder sensor with reed contact is designed for dependable magnetic piston-position detection in pneumatic cylinders. The MRT3038BBKOA/R/0,3M/ZH/AS configuration includes a 0.3 m cable and compact T-slot installation. It provides reliable switching feedback for automated pneumatic systems and is suitable for assembly machines, packaging equipment, material handling, production automation and industrial cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0129 is designed for monitoring the position of magnetic pistons in compatible T-slot cylinders. Its reed-contact sensing element provides a switching response when the piston reaches the sensor's detection area. The compact construction supports direct installation into the cylinder slot. This makes the sensor suitable for machines requiring dependable pneumatic-position feedback.
The sensor operates without mechanical contact with the moving piston. The magnetic field generated by the piston activates the reed contact and changes the output state. The controller can use the signal to confirm cylinder extension or retraction. This provides a simple and practical solution for conventional pneumatic automation systems.
The 0.3 m cable provides a compact connection arrangement for machines where the control connection is located close to the cylinder. The sensor is designed for T-slot installation and can be positioned at the desired switching point. Its compact construction reduces the requirement for external mounting hardware. This helps simplify machine assembly.
The MR0129 is suitable for automated assembly, packaging and handling equipment. It can monitor repetitive pneumatic cylinder movements and provide position feedback for machine sequencing. The sensor is appropriate for conventional PLC-based automation systems. Its compact cable configuration is especially useful for closely arranged pneumatic actuators.
T-slot cylinder sensor
Reed contact
0.3 m cable
MRT3038BBKOA/R/0,3M/ZH/AS
Magnetic piston detection
Compact installation
Direct T-slot mounting
Switching feedback
Reliable position monitoring
Industrial automation compatibility
Pneumatic cylinder monitoring
Assembly automation
Packaging machinery
Material handling
Machine sequencing
Pneumatic control
Production automation
Factory equipment
Pick-and-place machines
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | MR0129 |
| Model | MRT3038BBKOA/R/0,3M/ZH/AS |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Technology | Reed contact |
| Sensing Principle | Magnetic |
| Target | Magnetic piston |
| Cylinder Type | T-slot |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Connection | Integrated cable |
| Output | Switching signal |
| Installation | Cylinder-slot mounting |
| Display | LED |
| Housing | Compact |
| Fastening | Integrated fastening |
| Protection | Industrial sensor protection |
| Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Cable Protection | Strain relief |
| Application | Pneumatic position detection |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
