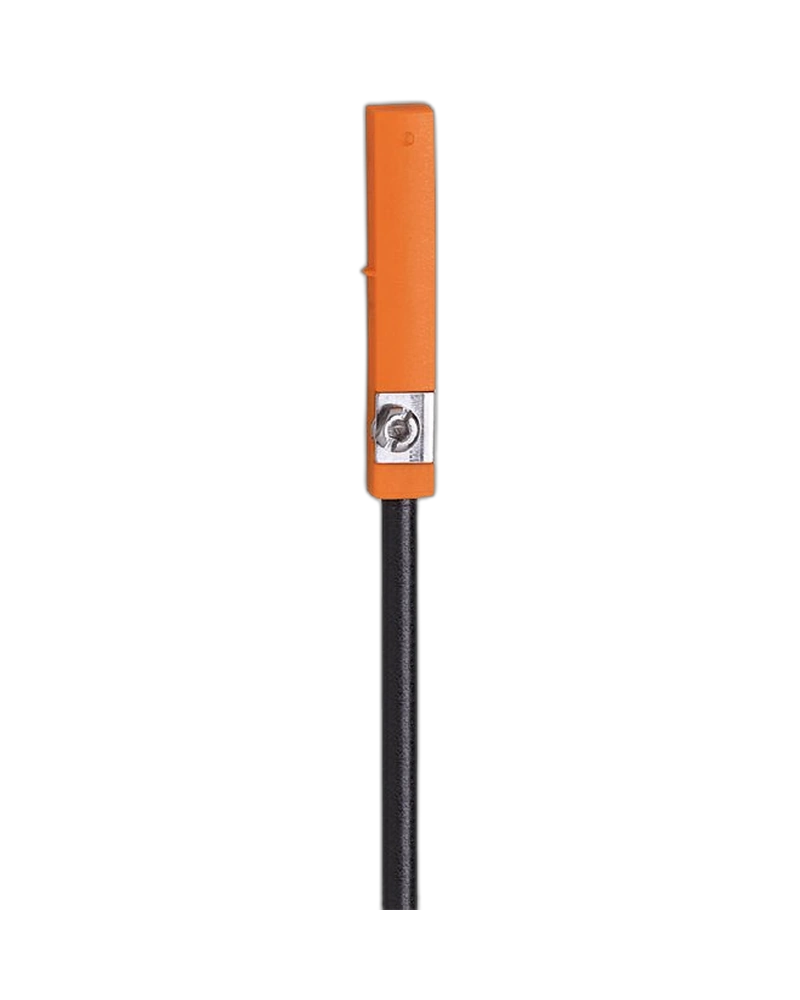

IFM MR501A is a T-slot cylinder sensor with reed contact designed for dependable detection of pneumatic cylinder piston positions. The MRT2021BAKOG/R/6,0M/ZH/3G/3D configuration is intended for integration with compatible T-slot cylinders and provides a switching signal when the magnetic piston reaches the sensing position. Its compact cylinder-mounted construction helps save installation space, while the 6 m cable provides convenient connection to machine control equipment. It is suitable for automated pneumatic systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MR501A provides position feedback for pneumatic cylinders by detecting the magnetic field produced by the cylinder piston. The integrated reed contact responds when the piston reaches the sensor's detection area, allowing the automation controller to determine the cylinder position. Its T-slot mounting arrangement is designed for compatible cylinder profiles and provides a neat installation. This makes the sensor suitable for applications requiring dependable pneumatic motion confirmation.
The sensor combines T-slot mounting with reed-contact sensing technology to provide straightforward piston-position detection. As the magnetic piston moves through the sensing area, the reed contact changes state and produces a switching signal. The signal can be used by a PLC or machine controller to sequence operations or confirm actuator movement. The integrated cable arrangement supports practical electrical installation in industrial machinery.
MR501A is suitable for pneumatic automation equipment where cylinder position must be monitored during machine operation. Typical applications include assembly systems, packaging machines, material-handling equipment and automated production machinery. By providing direct switching feedback, the sensor helps controllers verify actuator movement before starting the next machine sequence. Its cylinder-specific mounting design supports convenient integration into compatible pneumatic systems.
The T-slot mounting arrangement allows MR501A to be installed directly into compatible cylinder profiles. The sensor can be positioned along the cylinder to establish the required switching point for piston detection. Its 6 m cable provides flexibility when connecting the sensor to a remote control cabinet or machine controller. This helps simplify pneumatic position monitoring and supports organized installation in automated machinery.
T-slot cylinder sensor
Reed contact technology
Magnetic piston detection
MRT2021BAKOG configuration
6.0 m cable
Cylinder-integrated mounting
Compact sensor construction
Reliable switching feedback
Suitable for pneumatic automation
Easy control-system integration
Pneumatic cylinder monitoring
Machine automation
Assembly systems
Packaging equipment
Conveyor machinery
Material handling
Pick-and-place systems
Production machinery
Actuator position feedback
Automated manufacturing lines
| Specification | Details |
|---|---|
| Brand | IFM |
| Product code | MR501A |
| Product type | Cylinder sensor |
| Model | MRT2021BAKOG/R/6,0M/ZH/3G/3D |
| Sensor technology | Reed contact |
| Sensor family | Cylinder sensors |
| Mounting | T-slot |
| Detection principle | Magnetic field detection |
| Target | Magnetic piston |
| Application | Pneumatic cylinders |
| Switching technology | Reed contact |
| Cable length | 6.0 m |
| Electrical connection | Integrated cable |
| Mounting location | Cylinder T-slot |
| Sensor design | Compact |
| Output | Switching output |
| Communication | Not specified |
| Housing | Industrial sensor housing |
| Protection rating | Refer to manufacturer datasheet |
| Supply voltage | Refer to manufacturer datasheet |
| Current rating | Refer to manufacturer datasheet |
| Switching frequency | Refer to manufacturer datasheet |
| Operating temperature | Refer to manufacturer datasheet |
| Installation | Direct cylinder mounting |
| Product category | Sensors / Cylinder Sensors |
