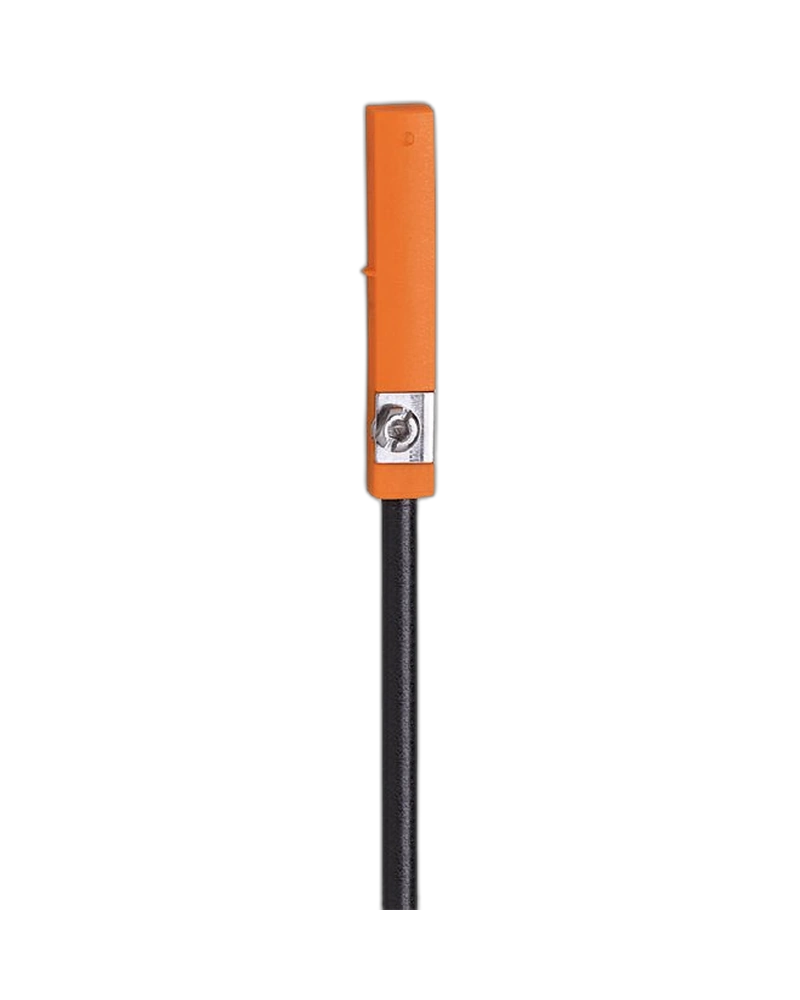

The IFM MR0122 T-slot cylinder sensor with reed contact is designed for reliable magnetic piston-position detection in pneumatic cylinders. The MRT3021BBKOA/R/ZH configuration provides a compact sensor solution with a three-wire design intended for applications requiring higher load capacity. Its self-locking mounting concept and easy slot installation make it suitable for assembly, packaging, material handling and industrial pneumatic automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0122 is a T-slot cylinder sensor designed to detect magnetic piston positions using reed-contact technology. It provides switching feedback for pneumatic automation systems. The compact sensor construction allows installation directly in compatible cylinder slots. This makes it useful for machine builders who require reliable piston-position monitoring without external mounting brackets.
IFM identifies the MR0122 as a three-wire variant intended for applications with higher load currents. This configuration provides a practical switching interface for industrial automation. The reed contact responds to the piston magnet and changes its output state when the piston reaches the sensing zone.
The sensor uses a T-slot mounting concept with a self-locking fixture designed to support quick installation and adjustment. Its top-down installation arrangement simplifies sensor placement in suitable cylinders. The compact design also helps maintain a clean machine layout. This is useful during both initial machine assembly and maintenance.
The MR0122 is suitable for pneumatic cylinders in assembly, packaging, handling and production machinery. It can provide position feedback to a PLC or control system and support machine-sequence decisions. Its three-wire configuration makes it suitable for applications with higher load requirements. The sensor is designed for repetitive industrial switching applications.
T-slot cylinder sensor
Reed contact
Three-wire design
Higher load-current applications
MRT3021BBKOA/R/ZH
Self-locking fixture
Top-down installation
Magnetic piston detection
High switching frequency
Compact cylinder mounting
Pneumatic automation
Assembly machinery
Packaging equipment
Material handling
Machine sequencing
Pneumatic actuator monitoring
Production systems
Factory automation
Industrial control
Automated handling
| Specification | Details |
|---|---|
| Product Code | MR0122 |
| Model | MRT3021BBKOA/R/ZH |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Type | Reed contact |
| Sensing Principle | Magnetic |
| Cylinder Type | T-slot |
| Target | Magnetic piston |
| Mounting | T-slot |
| Wiring | Three-wire |
| Output | Switching signal |
| Connection | Model-specific |
| Cable | Model-specific |
| Installation | Top-down slot installation |
| Fastening | Self-locking |
| Switching Frequency | High |
| Display | LED |
| Housing | Compact |
| Protection | Industrial sensor protection |
| Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Application | Pneumatic cylinder monitoring |
| Category | Cylinder Sensors |
