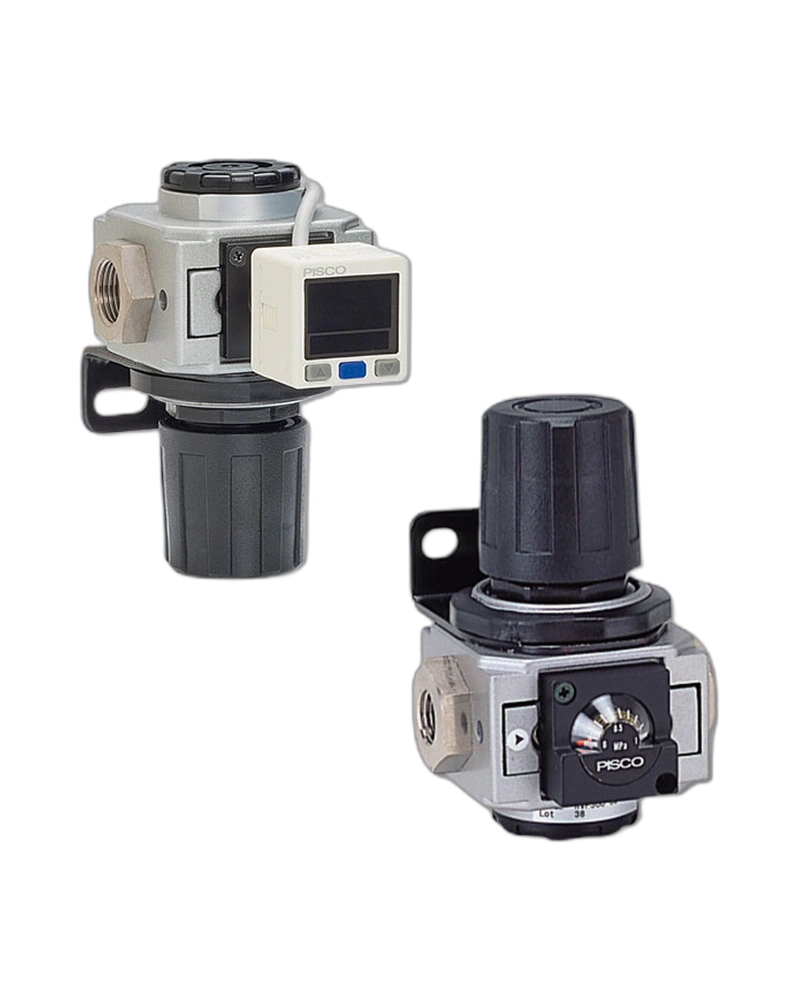

The Regulator is a compact pressure control device designed to maintain consistent output pressure in air systems. It features a push-lock knob for quick and reliable adjustment of outlet pressure, allowing users to set precise values directly within the piping system without requiring tools or disassembly.
The main resin components are manufactured from PBT (polybutylene terephthalate), a standard engineering plastic suitable for general environmental conditions. The primary metal parts are constructed from brass with an electroless nickel plating, providing durability and corrosion resistance in typical industrial settings.
The regulator connects via multiple interface options including metric male thread M5x0.8, taper pipe male threads R1/8 and R1/4, and UNF (Unified National Fine) thread 10-32UNF. It also supports NPT threads in sizes NPT1/8 and NPT1/4, enabling compatibility with a wide range of piping systems.
The regulator operates within an air medium and is rated for an operating pressure range of 0 to 1.0MPa (0 to 145psi). The pressure setting range is from 0.1 to 0.8MPa (14.5 to 116psi), with a gauge display indicating values up to 116psi. It functions reliably within an operating temperature range of 0 to 60℃, where freezing is not expected.
Available in multiple sizes, the regulator offers φ4, φ6, and φ8 mm (equivalent to φ5/32, φ3/16, and φ1/4 inch) diameters. These size variations allow for integration into different system designs and pipe configurations while maintaining consistent performance.
The push-lock knob provides secure pressure adjustment and prevents the lock nut from loosening due to machine oscillation or vibration, ensuring long-term stability during operation. This design supports in-line installation and pressure regulation at any point along a pipeline.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0 to 1.0MPa | 0 to 145psi |
| Pressure setting range | 0.1 to 0.8MPa | 14.5 to 116psi |
| Indicated pressure range | 0 to 0.8MPa |
| Operating temperature range | 0 to 60℃ (No freezing) |
| Gauge display range | 0 to 116psi |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ4, φ6, φ8 |
| inch size | φ5/32, φ3/16, φ1/4, φ5/16 |
| Metric male thread | M5x0.8 |
| Taper pipe male thread | R1/8, R1/4 |
| UNF Thread | 10-32UNF |
| NPT Thread | NPT1/8, NPT1/4 |
| Main resin material | PBT |
| Main metal material | Brass with electroless nickel plating |
| Performance | The new design provides 1.3 times higher flow than the previous models. The set pressure fluctuation range has been reduced |
