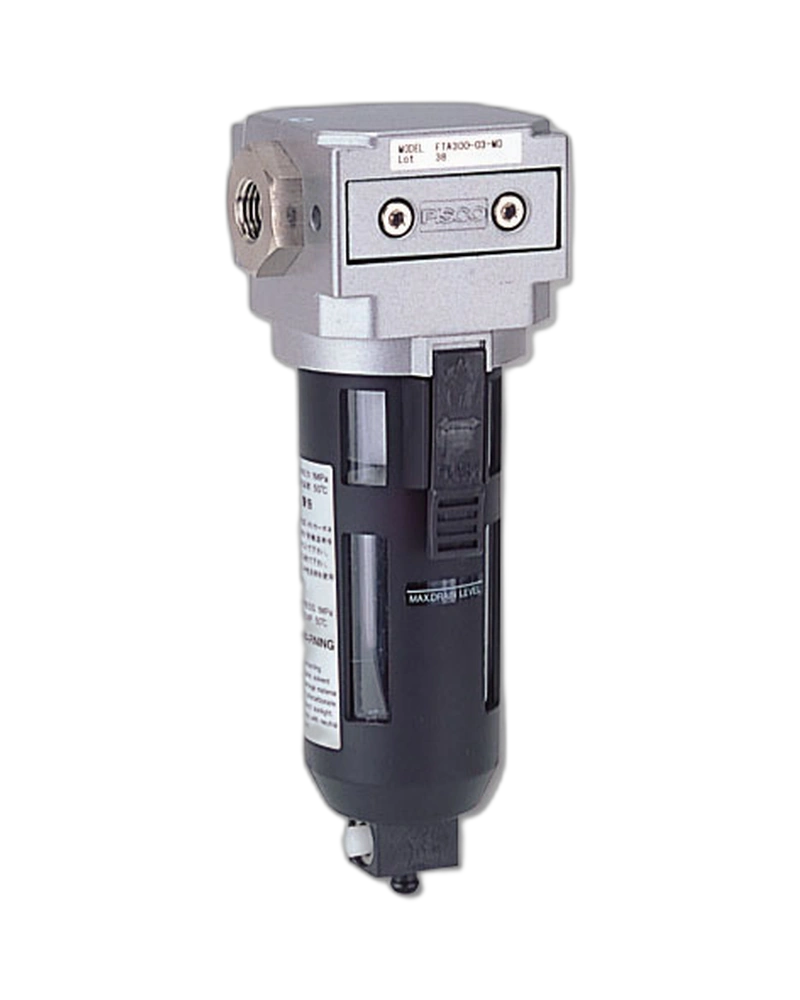

The Mist Filter is a precision filtration component designed to remove fine particulates from compressed air streams, ensuring clean and consistent mist delivery in industrial applications. It provides reliable performance by capturing contaminants that could otherwise degrade product quality or damage downstream equipment.
Constructed from durable plastic with corrosion-resistant properties, the bowl guard ensures long-term reliability in harsh environments. This material selection offers resistance to chemical exposure and environmental degradation while maintaining structural integrity under operational conditions.
The Mist Filter features two drainage options: manual and auto draining, allowing users to select the most suitable method based on application requirements. The filter is designed with standard taper pipe female threads (Rc1/4, Rc3/8) for secure and compatible connections to existing air systems.
Operational performance is optimized within a pressure range of 0.05MPa to 1.0MPa, with a minimum operating pressure of 0.15MPa specified in some configurations. The unit is rated for maximum operating pressure of 1.0MPa and can withstand a pressure resistance of up to 1.5MPa. It operates effectively within a temperature range of 5°C to 50°C.
Available with standard Rc1/4 and Rc3/8 taper pipe female threads, the Mist Filter is designed for compatibility across a wide range of industrial air systems. No color variants are specified; all units are supplied in standard finish suitable for industrial environments.
The Mist Filter integrates directly into compressed air lines via its Rc1/4 or Rc3/8 threaded port, enabling straightforward installation without additional fittings. The manual and auto-drain options provide flexibility during system setup and maintenance.
| Specification | Details |
|---|---|
| Port size | Rc1/4, Rc3/8 |
| Fluid medium | Air |
| Max. operating pressure | 1.0MPa |
| Min. operating pressure | 0.05MPa | 0.15MPa |
| Pressure resistance | 1.5MPa |
| Operating temp. range | 5 to 50℃ |
| Taper pipe female thread | Rc1/4, Rc3/8 |
