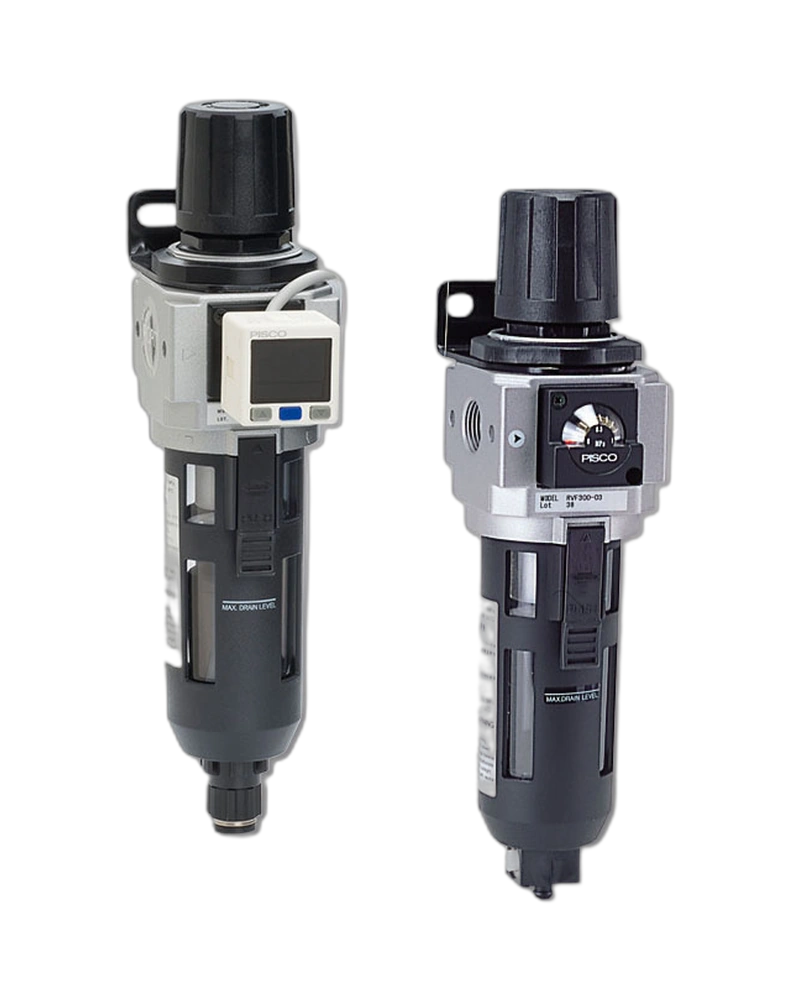

The Filter Regulator is PISCO's modular FRF configuration, combining the filtration function of the air-preparation family with a pressure regulator in one unit. The 300 series is intended for compact pneumatic circuits where filtration and downstream pressure adjustment are required together.
The FRF family uses modular filter/regulator construction with Rc1/4 or Rc3/8 ports and a built-in drain arrangement. Pressure indication is available as a gauge or digital-pressure-gauge configuration depending on the selected model.
PISCO's filter/regulator catalog identifies a 300L/min [ANR] flow-rate class, Rc1/4 and Rc3/8 ports, left-to-right or right-to-left flow direction and pressure-indication options. Automatic drain is standard for FRF type configurations.
Mount the unit in the air-preparation section and set the regulator with the handle after the supply line is connected. Choose the exact FRF model code for port size, flow direction and pressure-indication configuration.
| Specification | Details |
|---|---|
| Type | FRF Filter Regulator |
| Flow-rate class | 300L/min (ANR) |
| Port size | Rc1/4, Rc3/8 |
| Flow direction | Left to Right / Right to Left |
| Drain | Automatic drain, standard for FRF |
| Pressure indication | No indication / pressure gauge / digital pressure gauge by model |
| Module type | Modular filter and regulator unit |
