Explore performance details, construction highlights, applications, and technical information in one clear overview.

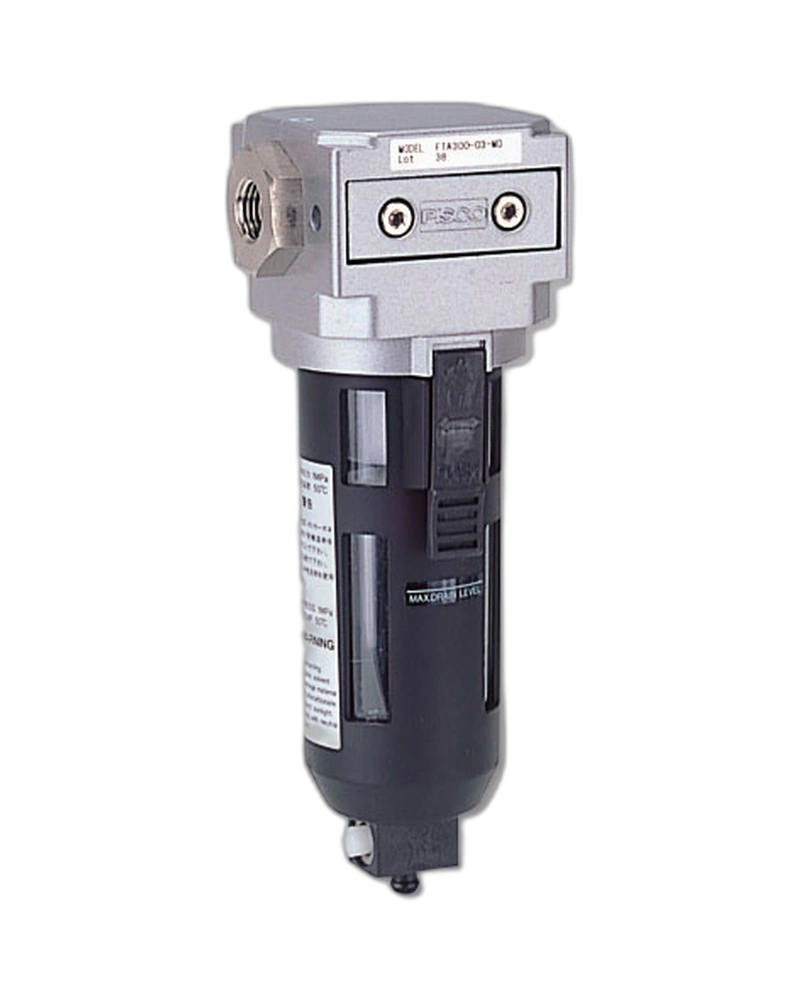

The Micromist Filter is a precision filtration component designed to ensure clean, consistent airflow in industrial misting and aerosol systems. It effectively removes particulates from compressed air streams, protecting downstream equipment and maintaining optimal performance by filtering out fine contaminants that could otherwise degrade system efficiency or cause damage.
Constructed with a plastic body and corrosion-resistant materials, the bowl guard provides durable protection against environmental exposure while maintaining structural integrity under operational conditions. This combination ensures long-term reliability in harsh industrial environments where moisture and chemical exposure are common.
The filter features two drainage options: manual and auto-draining, allowing users to select the most suitable method based on application requirements. Manual drainage enables controlled release of accumulated condensate, while auto-draining facilitates continuous operation with minimal maintenance intervention.
The Micromist Filter is rated for operation within a pressure range of 0.05MPa to 1.0MPa, with a maximum operating pressure of 1.0MPa and a pressure resistance capability up to 1.5MPa. It operates effectively in temperature ranges from 5℃ to 50℃, making it suitable for a wide range of ambient conditions.
Available with threaded connections in Rc1/4 or Rc3/8 taper pipe female thread configurations, the filter offers compatibility with standard industrial air lines and fittings. These port sizes ensure seamless integration into existing systems without requiring custom adapters.
The Micromist Filter integrates directly into compressed air systems via its Rc1/4 or Rc3/8 threaded ports, allowing for straightforward installation in both fixed and mobile applications. Its design supports direct connection to air supply lines, enabling immediate deployment in misting, cooling, or pneumatic control systems.
| Specification | Details |
|---|---|
| Port size | Rc1/4, Rc3/8 |
| Fluid medium | Air |
| Max. operating pressure | 1.0MPa |
| Min. operating pressure | 0.05MPa | 0.15MPa |
| Pressure resistance | 1.5MPa |
| Operating temp. range | 5 to 50℃ |
| Taper pipe female thread | Rc1/4, Rc3/8 |
