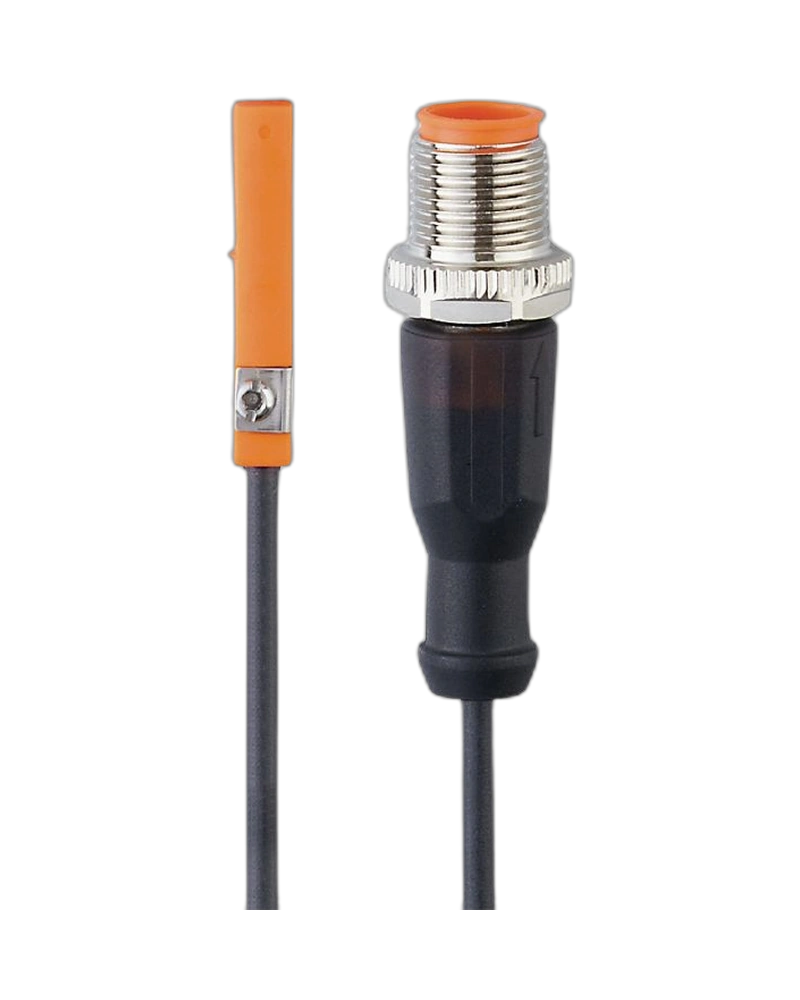

The IFM MR0120 T-slot cylinder sensor with reed contact provides reliable magnetic piston-position detection for pneumatic cylinders. Its MRT3021BBKOA/R/0,3M/ZH/ASR configuration includes a 0.3 m cable and is designed for compact T-slot installation. The sensor is suitable for automated machinery, pneumatic handling, assembly systems and production equipment requiring dependable switching feedback and convenient cylinder-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0120 is designed to detect piston movement in compatible T-slot pneumatic cylinders. Its reed contact responds to the magnetic field produced by the piston and provides a switching signal. The compact housing supports direct installation within the cylinder slot. This makes the sensor suitable for machines requiring straightforward and repeatable cylinder-position feedback.
The sensor detects the magnetic piston without requiring mechanical contact with the moving cylinder component. When the piston reaches the sensing zone, the reed contact switches and communicates the position to the control system. The 0.3 m cable supports convenient wiring in compact equipment. Its three-wire configuration provides a practical interface for automation systems.
The MR0120 can be installed into a suitable T-slot and adjusted to the required switching point. The self-locking mounting concept used in this product family helps simplify fitting and adjustment. Its moulded cable arrangement provides strain relief and supports reliable cable handling during machine operation. Proper mounting ensures stable piston detection.
The MR0120 is suitable for pneumatic cylinders in assembly, packaging, handling and production machinery. It can provide position feedback for machine sequencing and actuator control. The compact design helps maintain a clean machine layout while the cable configuration supports convenient connection. It is appropriate for repetitive industrial automation operations.
T-slot cylinder sensor
Reed contact
0.3 m cable
Three-wire design
MRT3021BBKOA/R/0,3M/ZH/ASR
Magnetic piston detection
Compact mounting
Self-locking fastening family
Cable strain relief
High switching capability
Pneumatic automation
Cylinder end-position detection
Assembly machinery
Packaging equipment
Material handling
Production systems
Machine sequencing
Pneumatic actuator monitoring
Factory automation
Industrial handling
| Specification | Details |
|---|---|
| Product Code | MR0120 |
| Model | MRT3021BBKOA/R/0,3M/ZH/ASR |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Contact | Reed |
| Sensing Principle | Magnetic |
| Target | Magnetic piston |
| Cylinder Type | T-slot |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Wiring | Three-wire |
| Output | Switching signal |
| Connection | Integrated cable |
| Installation | Slot mounting |
| Fastening | Self-locking family design |
| Cable Strain Relief | Moulded |
| Display | LED |
| Housing | Compact |
| Protection | Industrial protection |
| Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Application | Pneumatic position detection |
| Category | Cylinder Sensors |
