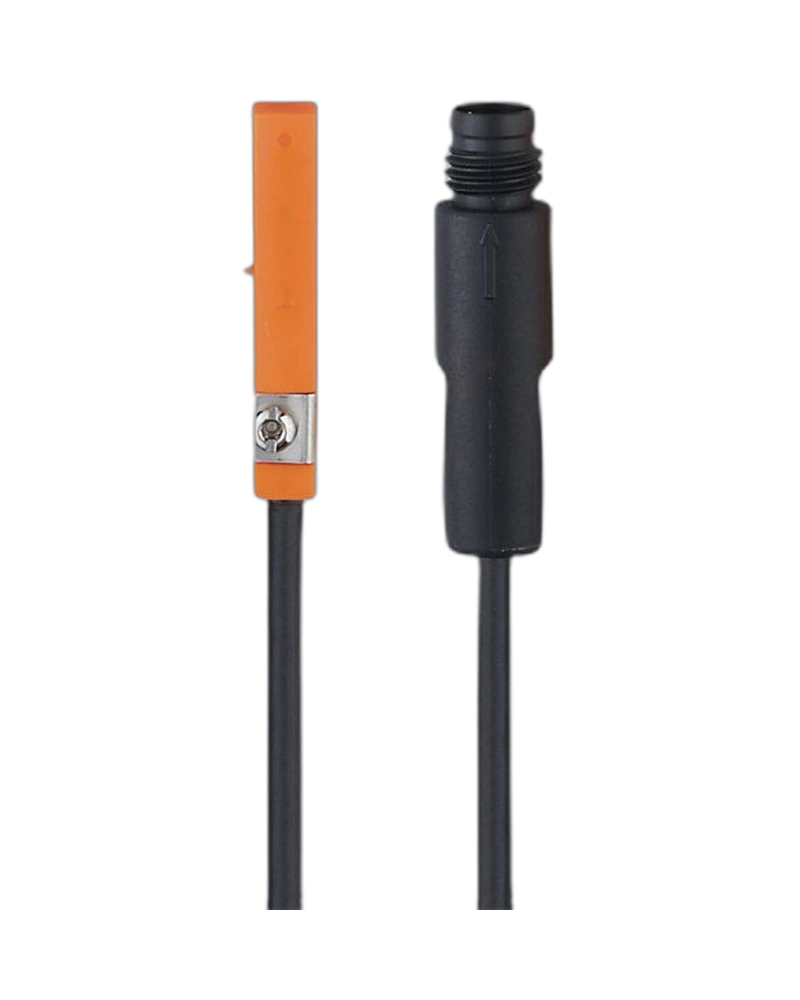

The IFM MR0119 T-slot cylinder sensor with reed contact is designed for dependable piston-position detection in pneumatic cylinders. The MRT3021BBKOA/R/0,3M/ZH/AS version uses a 0.3 m cable and is designed for T-slot mounting. IFM highlights its self-locking fastening, easy slot installation, moulded cable strain relief and three-wire version for applications requiring higher load capacity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0119 is a T-slot cylinder sensor designed for reliable magnetic piston-position feedback. Its reed-contact technology provides a switching signal when the piston enters the sensing zone. The sensor's compact design allows direct installation into compatible cylinder slots. It is suitable for industrial pneumatic systems where reliable position feedback is required.
The MR0119 uses a three-wire configuration designed for applications requiring higher load capacity. IFM also specifies a self-locking mounting concept and moulded cable arrangement for improved strain relief. These features support efficient installation and reliable cable handling during repetitive machine operation.
The sensor can be fitted into the cylinder slot and adjusted to the required switching position. Its magnetic sensing element detects the piston magnet without physical contact. When the piston reaches the sensing zone, the switching output changes state. This provides the automation controller with a clear indication of cylinder position.
The MR0119 is suitable for assembly machines, pneumatic handling equipment, packaging machinery and industrial production systems. Its three-wire configuration can support applications with higher load requirements. The compact T-slot installation helps reduce external mounting hardware. It is suitable for repetitive pneumatic motion where reliable switching feedback is required.
T-slot cylinder sensor
Reed contact
0.3 m cable
Three-wire version
MRT3021BBKOA/R/0,3M/ZH/AS
Self-locking fastening
Moulded cable strain relief
Magnetic piston detection
High switching frequency
Compact installation
Pneumatic cylinder monitoring
Assembly automation
Packaging machines
Material handling
Pneumatic actuators
Machine sequencing
Industrial automation
Production machinery
Factory automation
Handling systems
| Specification | Details |
|---|---|
| Product Code | MR0119 |
| Model | MRT3021BBKOA/R/0,3M/ZH/AS |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Type | Reed contact |
| Sensing Principle | Magnetic |
| Cylinder Type | T-slot |
| Target | Magnetic piston |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Wiring | Three-wire |
| Output | Switching signal |
| Connection | Integrated cable |
| Installation | Slot mounting |
| Fastening | Self-locking |
| Cable Protection | Moulded strain relief |
| Switching Frequency | High |
| Display | LED |
| Housing | Compact |
| Protection | Industrial sensor protection |
| Temperature | Model-specific |
| Application | Cylinder position feedback |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
