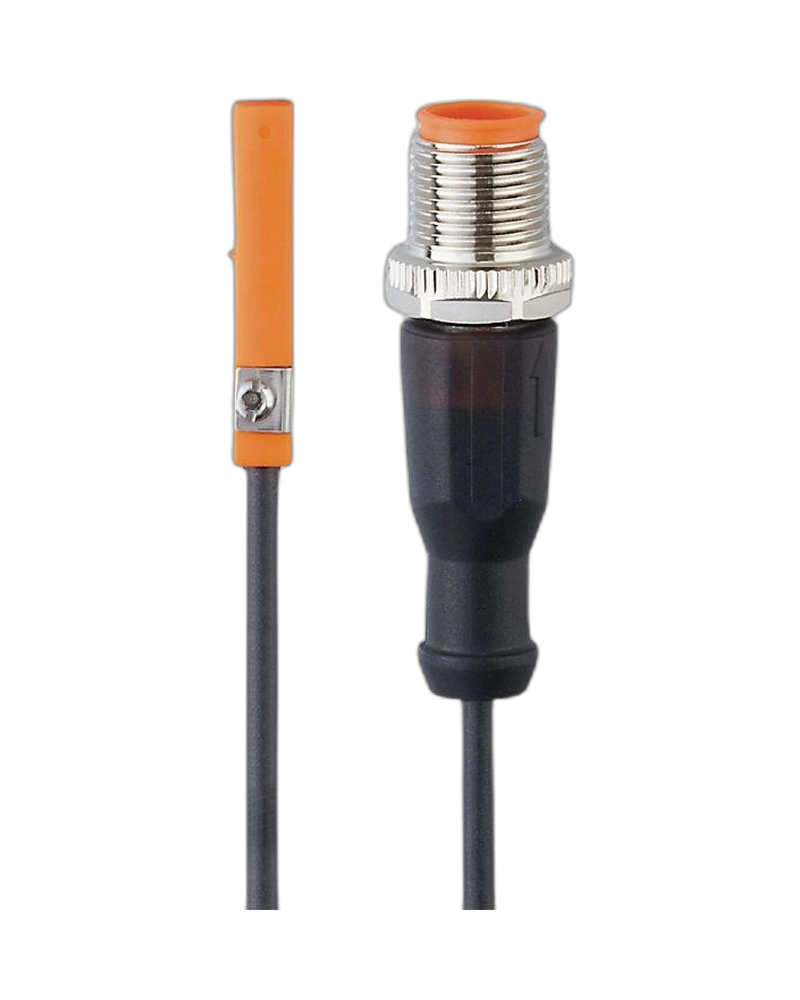

The IFM MR0107 T-slot cylinder sensor with reed contact is designed for reliable pneumatic cylinder position detection. The MRT2021BAKOA/R/0,3M/ZH/US version provides a compact 0.3 m cable configuration for direct T-slot installation. Its self-locking fastening arrangement supports quick mounting and adjustment, while the reed contact provides dependable switching feedback for automated machinery, pneumatic systems and industrial production equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0107 is a T-slot cylinder sensor designed to detect the magnetic piston position of compatible pneumatic cylinders. It uses a reed contact to provide a switching signal when the piston enters the sensing area. The compact construction supports direct installation within the cylinder slot. This provides an efficient solution for conventional pneumatic automation.
IFM specifies a self-locking fixture for quick mounting and adjustment and a drop-from-the-top installation method for this sensor family. These features help simplify installation during machine assembly and maintenance. The integrated cable arrangement also supports convenient connection in compact pneumatic equipment.
The reed contact responds to the magnetic field produced by the cylinder piston. When the piston reaches the detection area, the sensor changes switching state. This information can be used by a PLC, relay or automation controller to determine cylinder position. The sensor is suitable for repeated position detection in automated pneumatic processes.
The MR0107 is suitable for assembly machines, packaging equipment, handling systems and pneumatic production machinery. It can confirm whether an actuator has reached a required position before the controller initiates the next operation. Its compact T-slot mounting reduces installation space and supports clean machine construction. The 0.3 m cable is useful for nearby connection points.
T-slot cylinder sensor
Reed contact
0.3 m cable
MRT2021BAKOA/R/0,3M/ZH/US
Self-locking fastening
Drop-from-top installation
Magnetic piston detection
Compact design
Switching feedback
Industrial automation use
Pneumatic cylinder monitoring
Assembly automation
Packaging machinery
Material handling
Pick-and-place equipment
Machine sequencing
Production automation
Pneumatic actuator control
Factory automation
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | MR0107 |
| Model | MRT2021BAKOA/R/0,3M/ZH/US |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Type | Reed contact |
| Sensing Principle | Magnetic |
| Target | Magnetic piston |
| Cylinder Type | T-slot |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Connection | Integrated cable |
| Output | Switching signal |
| Installation | Drop-from-top |
| Fastening | Self-locking fixture |
| Display | Switching-status LED |
| Housing | Compact |
| Protection | IP65/IP67 family |
| Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Application | Cylinder position detection |
| Category | Sensors |
| Manufacturer | IFM |
| Brand Family | IFM cylinder sensors |
