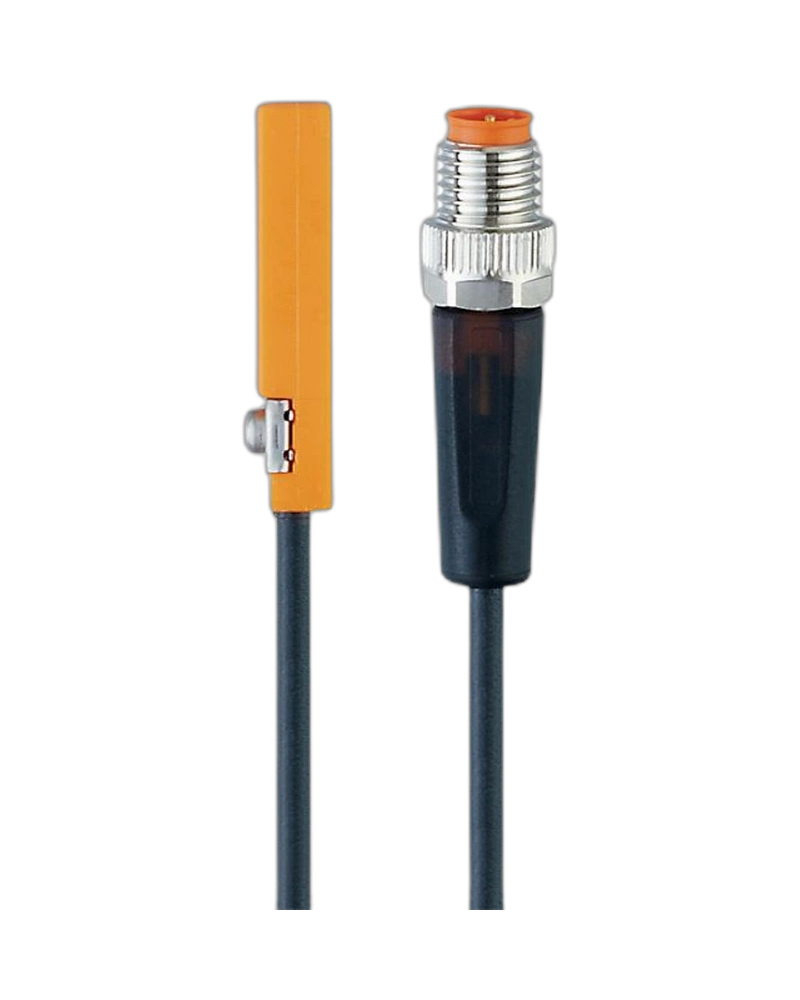

The IFM MR0102 T-slot cylinder sensor with reed contact provides dependable magnetic piston-position detection for pneumatic cylinders. Its MRT2021BAKOA/R/0,3M/ASR configuration uses a 0.3 m cable and compact T-slot installation. The sensor is designed for reliable switching feedback in industrial automation and can be used for pneumatic cylinder monitoring, machine sequencing, assembly equipment and automated handling applications. IFM specifies IP65/IP67 protection for this model.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0102 is a compact T-slot cylinder sensor using reed-contact technology. It detects the magnetic field of a pneumatic-cylinder piston and changes its switching state when the piston enters the sensing zone. Its compact housing is designed for direct cylinder-slot installation. This provides a simple and practical solution for conventional pneumatic position monitoring.
The MR0102 provides a defined magnetic response characteristic and switching behaviour suitable for cylinder-position detection. IFM documentation lists a response sensitivity of 2.1 mT, a hysteresis range and switching response specifications for this model. These characteristics support repeatable detection during pneumatic cylinder movement.
The sensor is designed for T-slot cylinders and uses a compact housing with a fastening element. IFM specifies IP65/IP67 protection and an ambient temperature range of -25 to 70 °C for this model. The 0.3 m cable provides a practical connection for compact machine layouts.
The MR0102 is suitable for pneumatic automation systems where dependable cylinder end-position feedback is required. It can be used in assembly machinery, handling equipment, packaging systems and automated production lines. Its reed-contact output provides a straightforward switching signal for conventional control systems. Proper cylinder compatibility and installation ensure reliable position detection.
Reed contact sensor
T-slot cylinder mounting
0.3 m cable
MRT2021BAKOA/R/0,3M/ASR model
Magnetic piston detection
IP65/IP67 protection
-25 to 70 °C ambient range
Yellow switching-status LED
Compact housing
Reliable pneumatic position sensing
Pneumatic cylinder monitoring
Assembly automation
Packaging equipment
Material handling
Machine sequencing
Pneumatic actuator feedback
Production machinery
Industrial automation
Factory control systems
Automated handling equipment
| Specification | Details |
|---|---|
| Product Code | MR0102 |
| Model | MRT2021BAKOA/R/0,3M/ASR |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Contact | Reed |
| Sensing Principle | Magnetic |
| Response Sensitivity | 2.1 mT |
| Hysteresis | Approx. 1 mm |
| Cylinder Type | T-slot |
| Mounting | Flush-mountable T-slot |
| Cable Length | 0.3 m |
| Output | Switching signal |
| Display | Yellow LED |
| Protection | IP65 / IP67 |
| Ambient Temperature | -25...70 °C |
| Housing Material | PA |
| Fastening Material | Stainless steel |
| Dimensions | 30.5 × 5 × 6.5 mm |
| Weight | Approx. 14.5 g |
| Connection | Cable |
| Required Protection | Miniature fuse ≤0.175 A fast acting |
| Application | Pneumatic position detection |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
