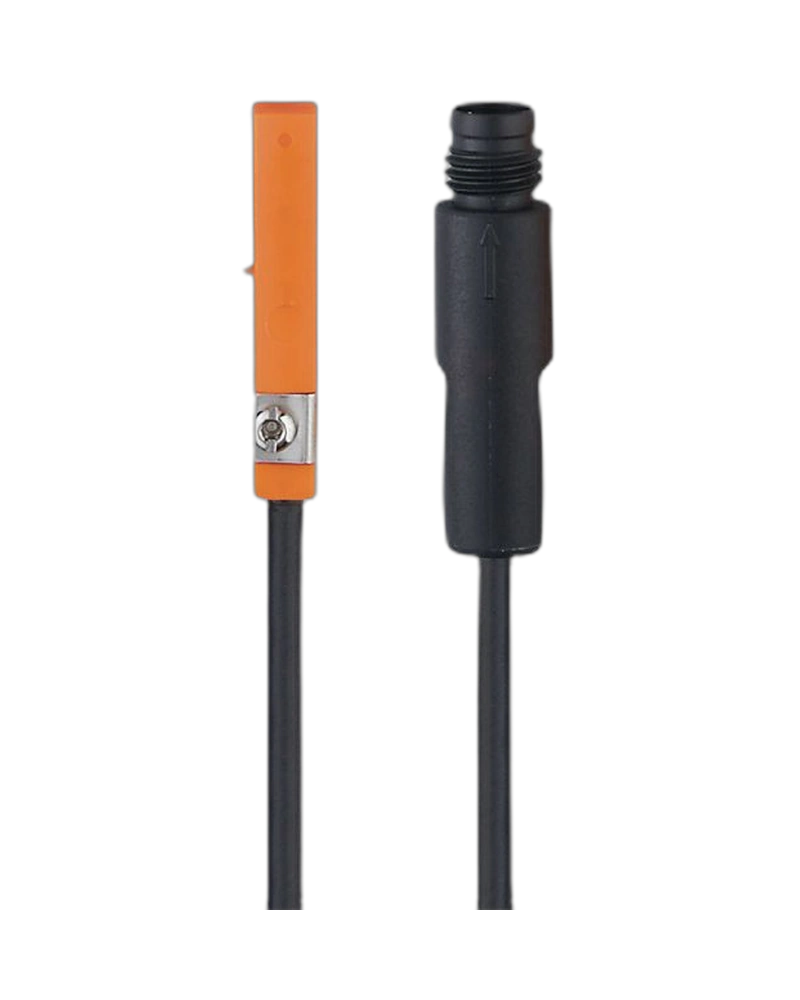

The IFM MR0101 T-slot cylinder sensor with reed contact is designed for reliable magnetic piston-position detection in pneumatic cylinders. The MRT2021BAKOA/R/0,3M/ZH/AS configuration includes a 0.3 m cable and provides convenient direct installation into compatible T-slot cylinders. It is suitable for automated assembly, packaging, material handling and pneumatic machine-control systems requiring dependable cylinder-position feedback.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0101 provides a practical solution for monitoring pneumatic-cylinder positions. Its reed-contact sensing principle responds to the magnetic field of the cylinder piston. The sensor is designed for T-slot installation and provides a compact arrangement that can be positioned according to the required switching point. This makes it suitable for conventional PLC-controlled pneumatic automation.
When the magnetic piston enters the sensor's detection zone, the reed contact changes its state and provides a switching indication. The 0.3 m cable provides a convenient connection arrangement for compact machines. The sensor can be positioned directly within the cylinder slot, reducing the need for external brackets. This supports efficient machine construction and straightforward commissioning.
IFM's T-slot reed sensor design includes a self-locking fastening concept and top-down slot installation in the product family. This supports quick fitting and adjustment. The compact sensor construction is suitable for repetitive pneumatic operations and can provide dependable feedback when installed correctly on compatible cylinders.
The MR0101 is suitable for cylinder end-position monitoring in automated assembly and handling equipment. It can confirm actuator movement and provide a switching signal to a PLC or relay system. The compact installation is valuable where space around the pneumatic cylinder is limited. The 0.3 m cable is suitable for short connection paths within compact machine assemblies.
T-slot cylinder sensor
Reed contact technology
0.3 m cable
MRT2021BAKOA/R/0,3M/ZH/AS model
Self-locking mounting concept
Top-down slot installation
Magnetic piston detection
Switching-state indication
Compact construction
Suitable for pneumatic automation
Pneumatic cylinder position sensing
Assembly machines
Packaging systems
Material handling
Pneumatic automation
Machine sequencing
Production machinery
Pick-and-place systems
Factory automation
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MR0101 |
| Model | MRT2021BAKOA/R/0,3M/ZH/AS |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Type | Reed contact |
| Cylinder Type | T-slot |
| Sensing Principle | Magnetic |
| Target | Magnetic piston |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Connection | Integrated cable |
| Output | Switching signal |
| Contact Technology | Reed |
| Switching Indication | LED |
| Housing | Compact |
| Fastening | Self-locking fastening concept |
| Installation | Top-down slot insertion |
| Protection | IP65/IP67 family |
| Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Application | Cylinder position detection |
| Category | Sensors |
| Manufacturer | IFM |
