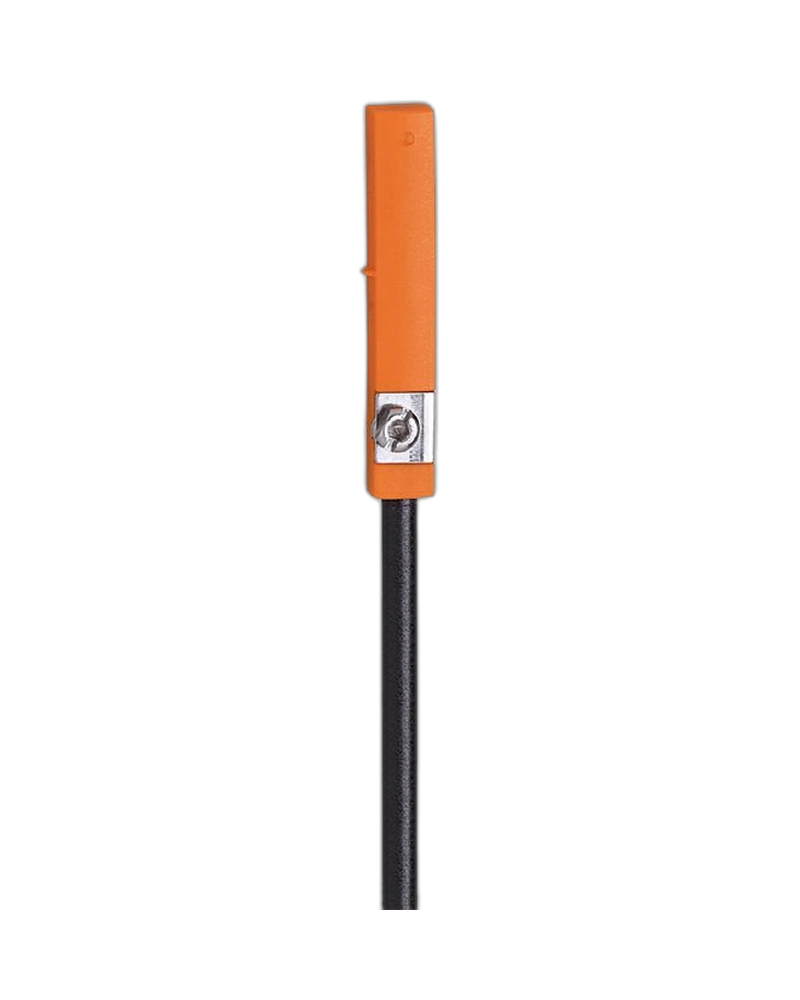

The IFM MR0100 T-slot cylinder sensor with reed contact is designed for reliable position detection on pneumatic cylinders. The MRT2021BAKOA/R/ZH configuration provides a compact solution for detecting the magnetic piston position in T-slot cylinders. It is suitable for automated machinery, pneumatic actuators, assembly systems and industrial control applications where dependable cylinder-position feedback and straightforward installation are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MR0100 is a T-slot cylinder sensor using a reed contact for detecting magnetic piston movement. Its compact design allows installation on compatible pneumatic cylinders and provides switching feedback when the piston reaches the sensing area. The sensor is intended for practical industrial automation applications where simple and dependable cylinder-position detection is required.
The reed contact responds to the magnetic field generated by the piston magnet. As the piston moves into the sensing zone, the reed contact changes its switching state. This provides the connected controller with a clear indication of cylinder position. The technology is well suited to basic pneumatic position monitoring and machine-sequence control.
The MR0100 is designed for T-slot cylinders and can be installed directly into the cylinder slot. The compact design helps reduce external brackets and simplifies sensor positioning. IFM's T-slot reed-sensor family uses convenient fastening concepts for quick installation and adjustment. This makes the sensor suitable for machine builders who need repeatable cylinder feedback.
The MR0100 can be used for pneumatic cylinder end-position detection in assembly, packaging, material handling and production equipment. It helps controllers verify cylinder movement before the next operation begins. Its straightforward switching concept makes it suitable for conventional automation systems. The sensor can support reliable repetitive operation when correctly installed on compatible cylinders.
T-slot cylinder sensor
Reed contact technology
MRT2021BAKOA/R/ZH model
Magnetic piston detection
Compact housing
Direct T-slot installation
Reliable switching feedback
Suitable for pneumatic cylinders
Industrial automation design
Easy position monitoring
Pneumatic cylinder monitoring
Assembly machinery
Packaging machines
Material handling
Machine sequencing
Pneumatic automation
Production equipment
Pick-and-place systems
Factory automation
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | MR0100 |
| Model | MRT2021BAKOA/R/ZH |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Contact Type | Reed contact |
| Cylinder Type | T-slot cylinder |
| Sensing Principle | Magnetic |
| Target | Magnetic piston |
| Mounting | T-slot |
| Installation | Direct slot mounting |
| Output | Switching signal |
| Electrical Technology | Reed switching |
| Connection | Model-specific |
| Cable Length | Model-specific |
| Connector | Model-specific |
| Display | Switching-state LED |
| Housing | Compact |
| Fastening | Integrated mounting element |
| Protection | IP65/IP67 family |
| Ambient Temperature | Model-specific |
| Dimensions | Model-specific |
| Weight | Model-specific |
| Application | Pneumatic position detection |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
