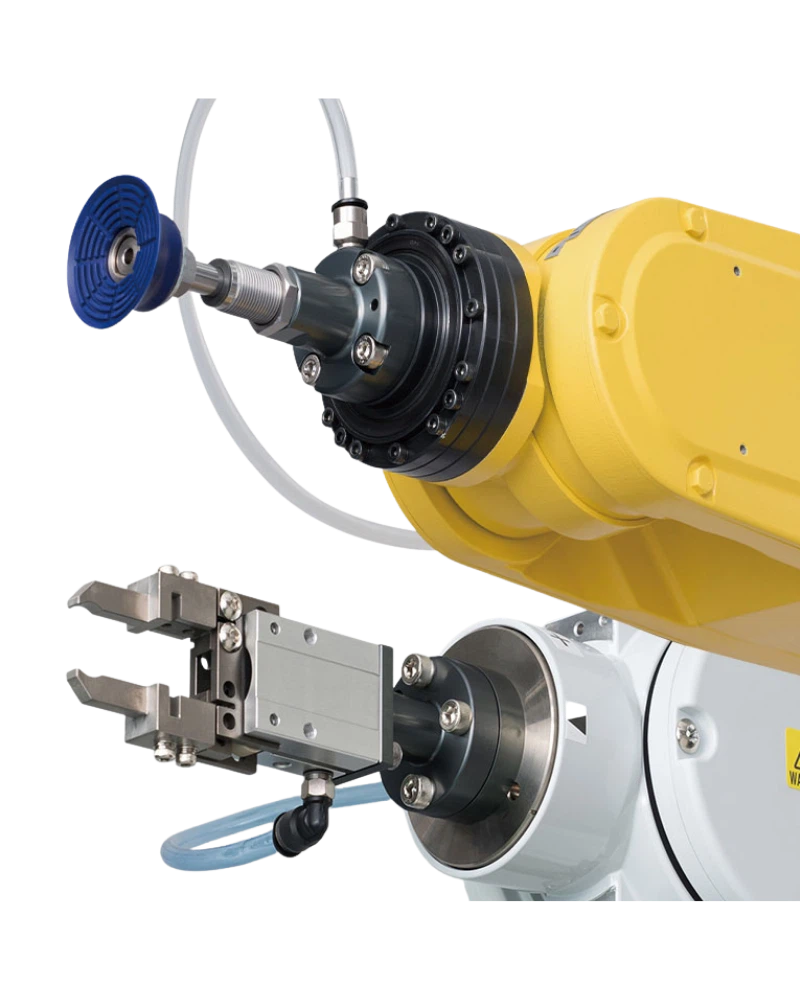

The Mounting Flange HS for EOAT is a specialized component designed to securely attach end-of-arm tooling (EOAT) such as vacuum pads or grippers to robotic systems. It provides a reliable and standardized interface, enabling precise positioning and stable operation of tools at the robot’s end effector.
The flange is constructed from durable materials suitable for industrial environments. It features a P.C.D. 31.5 M5 mounting hole, allowing direct attachment to EOAT systems with compatible threaded interfaces. The design ensures mechanical strength and long-term reliability under operational stress.
Available in two types—HSP for vacuum pads and HSC for grippers—the flange offers flexibility in tool selection. Additionally, the configuration supports either a top port or side port for air piping connections, enabling users to choose based on their specific robot architecture and application requirements.
The flange is designed for direct mounting using a P.C.D. 31.5 M5 thread, ensuring secure alignment with standard EOAT components. When connected to SCARA robots equipped with hollow shafts, air piping can be routed through the top port, providing a compatible and efficient solution for pneumatic tooling systems.
This mounting flange is available in both HSP and HSC variants to match different tool types. Port selection (top or side) is configurable depending on system design, allowing integration with various robot platforms including SCARA models that use hollow shafts.
Installation is straightforward—simply align the flange’s P.C.D. 31.5 M5 hole with the EOAT mounting point and secure it using standard threaded fasteners. Compatible conversion attachments are available for integration with robots from different manufacturers, ensuring broad compatibility across robotic systems.
| Specification | Details |
|---|---|
| Technical detail | Can be directly mounted to EOAT with P.C.D. 31.5 M5 |
