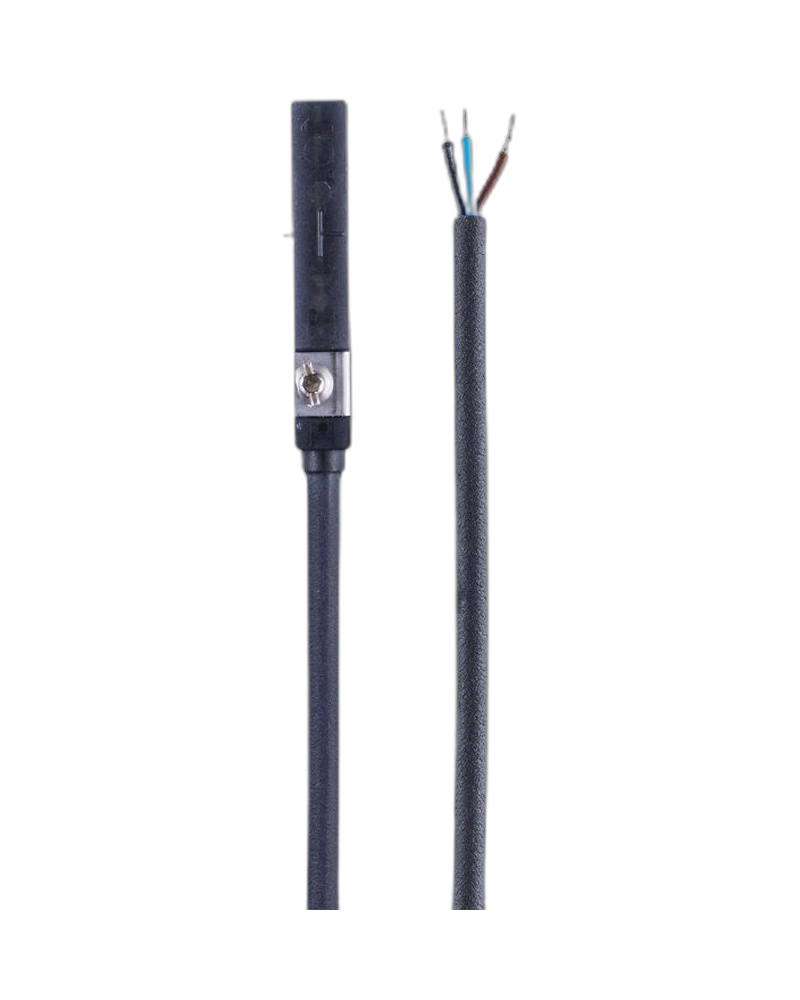

The IFM MK5909 cylinder sensor with IO-Link is designed for intelligent pneumatic cylinder position monitoring where a longer connection cable is required. The MKT4028BFRKG/H/6,0M/IO/ZH version features a 6.0 m cable and provides the same intelligent cylinder-monitoring concept used across the MK5900 IO-Link family. It supports end-position detection, parameterisation, diagnostics and switching-cycle monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5909 provides an intelligent solution for monitoring pneumatic cylinder positions in industrial automation. Its 6.0 m cable configuration is useful where the sensor is installed at a distance from the control or connection point. The sensor combines magnetic position detection with IO-Link communication. This enables both machine-control feedback and access to additional sensor information.
The MK5909 supports IO-Link communication for sensor parameterisation and diagnostic information. IFM describes the product family as supporting switching-cycle monitoring and fast fault localisation through diagnostic functions. These capabilities can help users monitor actuator operation and integrate sensor information into machine-maintenance systems.
The 6.0 m cable is a key configuration feature of the MK5909. It allows the sensor to be installed on pneumatic equipment where the connection point is farther away from the cylinder. The cable arrangement can simplify routing in larger machines while maintaining the intelligent IO-Link sensing concept. Proper cable routing should be considered during machine installation.
The MK5909 is suitable for larger automated machines, production lines, handling systems and pneumatic equipment where extended sensor wiring is required. It provides position feedback while allowing diagnostic and parameterisation data to be exchanged through IO-Link. The longer cable makes it useful where compact machine-level connection points are not immediately beside the cylinder.
IO-Link cylinder sensor
MKT4028BFRKG/H/6,0M/IO/ZH model
6.0 m cable
Magnetic piston detection
Two end-position monitoring
50 mm detection range
IO-Link parameterisation
Diagnostic functions
Switching-cycle monitoring
Suitable for extended machine layouts
Large pneumatic machines
Production lines
Assembly systems
Packaging equipment
Material handling
Pneumatic actuator monitoring
Machine diagnostics
Factory automation
Maintenance monitoring
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5909 |
| Model | MKT4028BFRKG/H/6,0M/IO/ZH |
| Brand | IFM |
| Product Type | Cylinder sensor with IO-Link |
| Communication | IO-Link |
| Sensor Principle | Hall/magnetic |
| Cylinder Type | Short-stroke compatible |
| Detection Range | 50 mm family specification |
| End Positions | 2 |
| Output | Switching / IO-Link |
| Output Design | PNP/NPN parameterisable |
| Output Function | NO/NC parameterisable |
| Digital Outputs | 2 |
| Supply Voltage | 10...30 V DC family specification |
| Cable Length | 6.0 m |
| Connection | Integrated cable |
| Display | LED |
| Diagnostics | Yes |
| Cycle Monitoring | Yes |
| Mounting | Cylinder slot |
| Housing | Compact |
| Protection | Industrial sensor protection |
| Application | Pneumatic position monitoring |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
