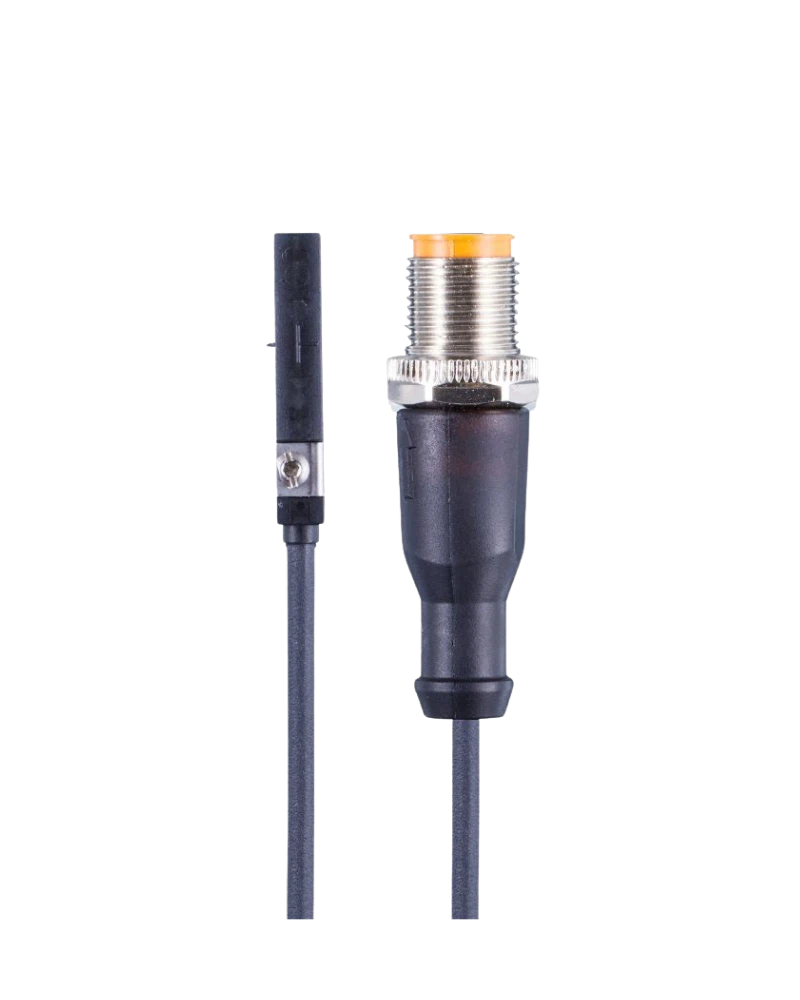

The IFM MK5908 cylinder sensor with IO-Link is designed for intelligent monitoring of pneumatic cylinder positions. Its MKT4028BFRKG/H/0,3M/IO/ZH/US configuration includes a 0.3 m cable and supports advanced IO-Link communication. The sensor is designed for short-stroke cylinder applications and provides end-position detection, diagnostic information and switching-cycle monitoring for reliable industrial automation and pneumatic machine control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5908 combines magnetic cylinder-position sensing with IO-Link communication. It is designed for applications where pneumatic position information and diagnostic data need to be available to the machine controller. The sensor can monitor suitable cylinder end positions and supports a compact installation arrangement. Its intelligent design makes it appropriate for modern automated production equipment.
IO-Link enables communication between the sensor and automation controller for parameterisation and diagnostics. The sensor family supports switching-cycle monitoring and diagnostic functions, allowing users to obtain additional information about pneumatic actuator operation. This can improve maintenance visibility and help identify abnormal cylinder behaviour before it causes machine downtime.
The 0.3 m cable provides a convenient electrical connection for compact machine layouts. The sensor uses a second LED as an end-position setting aid and provides a 50 mm detection range within the product family. Its compact cylinder mounting allows installation close to the pneumatic actuator. This supports reliable and space-efficient cylinder monitoring.
The MK5908 is suitable for assembly machines, packaging systems, handling equipment and automated pneumatic mechanisms. It can provide position feedback to the PLC while also communicating diagnostic information through IO-Link. The combination of position sensing and machine data makes it suitable for intelligent factory automation. It can also support maintenance strategies based on actuator usage.
IO-Link communication
MKT4028BFRKG/H/0,3M/IO/ZH/US
0.3 m cable
Magnetic piston detection
Two end-position capability
50 mm detection range
End-position setting aid
Diagnostic functions
Switching-cycle monitoring
Suitable for pneumatic automation
Pneumatic cylinder monitoring
Assembly automation
Packaging equipment
Material handling
Machine condition monitoring
Automated production lines
Pneumatic actuator control
Pick-and-place machinery
Factory automation
Maintenance systems
| Specification | Details |
|---|---|
| Product Code | MK5908 |
| Model | MKT4028BFRKG/H/0,3M/IO/ZH/US |
| Brand | IFM |
| Product Type | IO-Link cylinder sensor |
| Sensor Technology | Hall/magnetic |
| Communication | IO-Link |
| Cylinder Application | Short-stroke cylinders |
| Detection Range | 50 mm family specification |
| End Positions | 2 |
| Output | Switching / IO-Link |
| Output Design | PNP/NPN parameterisable |
| Output Function | NO/NC parameterisable |
| Digital Outputs | 2 |
| Supply Voltage | 10...30 V DC family specification |
| Cable Length | 0.3 m |
| Connection | Integrated cable |
| Display | LED |
| Diagnostics | Yes |
| Cycle Counter | Yes |
| Mounting | Cylinder slot |
| Housing | Compact |
| Protection | Industrial sensor protection |
| Application | Pneumatic position feedback |
| Category | Cylinder Sensors |
| Manufacturer | IFM |
