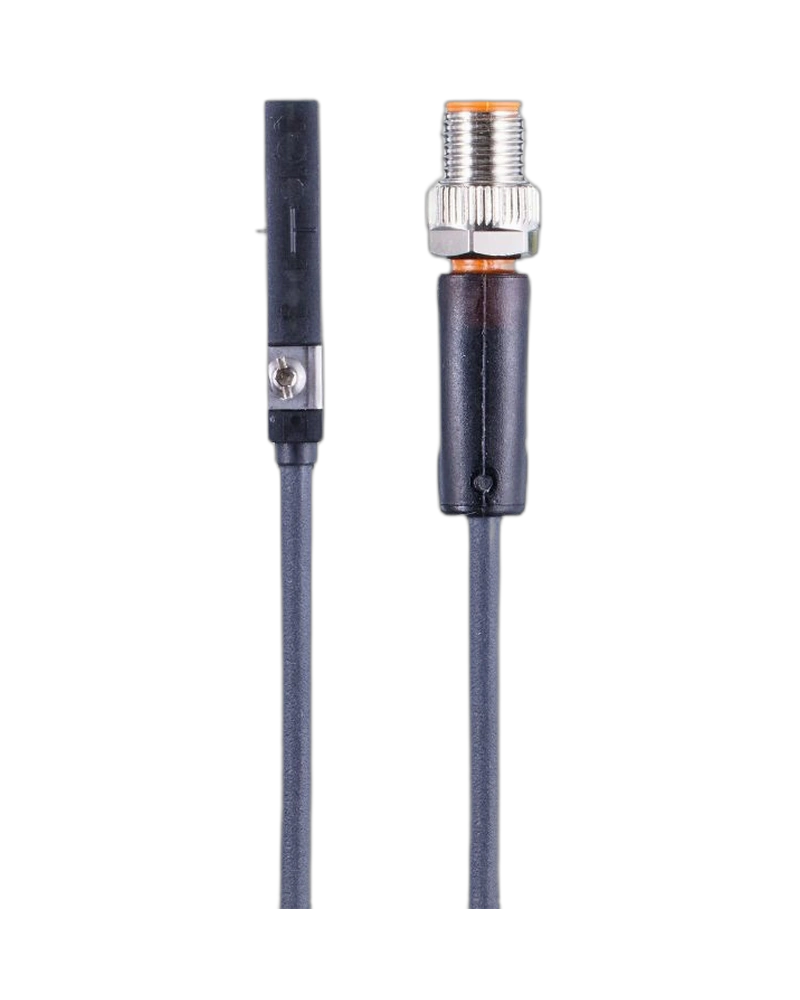

The IFM MK5906 is an intelligent cylinder sensor with IO-Link designed for position monitoring on short-stroke pneumatic cylinders. The MKT3028BFRKG/H/0,3M/IO/ZH/ASR configuration provides a 0.3 m cable and advanced communication capability. It supports two end-position detection, parameterisation, diagnostic functions and switching-cycle monitoring, helping automation systems achieve dependable pneumatic control and improved maintenance visibility
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5906 is designed to provide intelligent feedback from pneumatic cylinders. Its IO-Link interface allows the sensor to exchange configuration and diagnostic information with the automation system. The sensor can monitor two end positions with one sensing device in suitable applications. This provides a compact solution for machines requiring both position detection and additional sensor data.
IO-Link provides a digital communication path between the sensor and control system. This allows parameters to be configured efficiently and provides access to diagnostic information. The MK5906 family is designed for monitoring critical pneumatic cylinders through switching-cycle counting. This information can help users understand actuator usage and support maintenance planning.
The sensor is designed for compatible cylinder installations and provides a 50 mm detection range. The second LED supports convenient end-position adjustment during commissioning. Its 0.3 m cable version allows the electrical connection to be routed conveniently in compact machine layouts. The compact sensor format helps reduce the space required around pneumatic actuators.
The MK5906 is suitable for automated assembly, handling, packaging and production machinery. It can detect piston positions and communicate additional information through IO-Link. This supports improved machine sequencing and diagnostic visibility. The sensor is particularly useful where pneumatic actuator monitoring must be integrated into a modern industrial communication architecture.
IO-Link cylinder sensor
MKT3028BFRKG/H/0,3M/IO/ZH/ASR
0.3 m cable
Two end-position detection
50 mm detection range
End-position adjustment aid
Diagnostic functions
Switching-cycle counter
Parameterisation through IO-Link
Industrial pneumatic monitoring
Pneumatic automation
Assembly machines
Packaging systems
Handling equipment
Short-stroke actuators
Machine diagnostics
Condition monitoring
Production automation
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK5906 |
| Model | MKT3028BFRKG/H/0,3M/IO/ZH/ASR |
| Brand | IFM |
| Product Type | IO-Link cylinder sensor |
| Communication | IO-Link |
| Sensor Principle | Hall/magnetic sensing |
| Cylinder Type | Short-stroke |
| Detection Range | 50 mm |
| End Position Detection | Two positions |
| Output | Switching + IO-Link |
| Electrical Design | PNP/NPN parameterisable |
| Output Function | NO/NC parameterisable |
| Digital Outputs | 2 |
| Supply Voltage | 10...30 V DC |
| Cable Length | 0.3 m |
| Display | LED indicators |
| Diagnostics | Available |
| Cycle Counter | Available |
| Mounting | Cylinder slot |
| Housing | Compact |
| Protection | Industrial protection |
| Application | Cylinder monitoring |
| Category | Sensors |
| Manufacturer | IFM |
