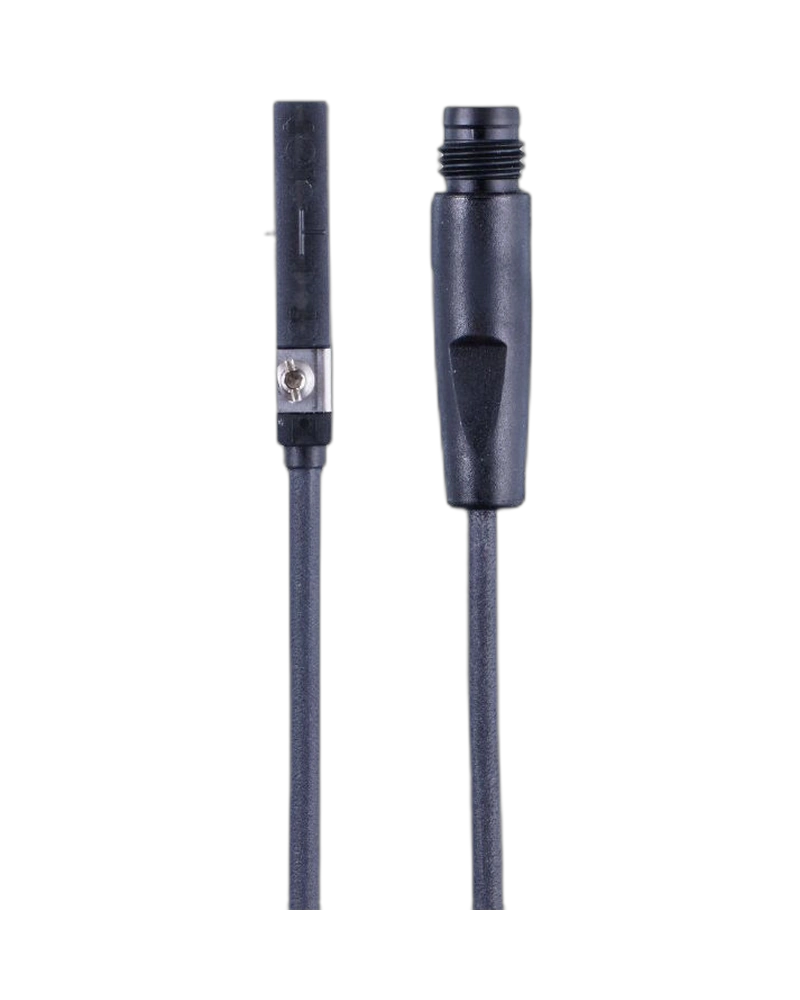

The IFM MK5905 cylinder sensor with IO-Link is designed for intelligent position monitoring of short-stroke pneumatic cylinders. Its MKT3028BFRKG/H/0,3M/IO/ZH/AS configuration combines magnetic cylinder detection, a 0.3 m cable and IO-Link communication. The sensor supports end-position detection, parameterisation, diagnostic monitoring and switching-cycle counting, making it suitable for advanced pneumatic automation and machine-condition monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5905 combines cylinder-position sensing with intelligent IO-Link communication. It is designed to detect two end positions of suitable short-stroke cylinders using one sensor. This reduces the need for separate sensors in appropriate installations. The sensor provides position information while also allowing additional parameters and diagnostic information to be exchanged with the automation system.
The sensor supports IO-Link communication for convenient parameterisation and machine-level data access. IFM describes this family as providing switching-cycle monitoring and extensive diagnostic functionality. Such features can help maintenance teams monitor pneumatic-cylinder usage and identify potential faults earlier. The sensor therefore supports both automation control and machine-condition monitoring.
The MK5905 uses a compact cylinder-sensor design with a 0.3 m cable configuration. The sensor is intended for suitable pneumatic cylinder slots and can be positioned to detect the required piston locations. The second LED provides an end-position setting aid, making commissioning more convenient. Its compact installation is suitable for machines with limited space around pneumatic actuators.
The MK5905 is suitable for assembly lines, packaging machines, material handling systems and automated pneumatic equipment. It can provide reliable position feedback while supplying diagnostic information through IO-Link. The switching-cycle counter can be useful for tracking actuator usage. This combination makes the sensor suitable for applications where pneumatic position feedback and maintenance information are both important.
IO-Link communication
MKT3028BFRKG/H/0,3M/IO/ZH/AS model
0.3 m cable
Two end-position detection capability
50 mm detection range
Second LED setting aid
Switching-cycle counter
Extensive diagnostic functions
Compact cylinder mounting
Suitable for short-stroke cylinders
Pneumatic cylinder monitoring
Assembly automation
Packaging systems
Material handling
Machine diagnostics
Pneumatic actuator control
Factory automation
Production machinery
Condition monitoring
Predictive maintenance
| Specification | Details |
|---|---|
| Product Code | MK5905 |
| Model | MKT3028BFRKG/H/0,3M/IO/ZH/AS |
| Brand | IFM |
| Product Type | Cylinder sensor with IO-Link |
| Communication | IO-Link |
| Sensor Principle | Hall/magnetic sensing |
| Cylinder Type | Short-stroke cylinder |
| Detection Range | 50 mm |
| End Positions | Two |
| Output | Switching + IO-Link |
| Output Design | PNP/NPN parameterisable |
| Output Function | NO/NC parameterisable |
| Digital Outputs | 2 |
| Operating Voltage | 10...30 V DC |
| Cable Length | 0.3 m |
| Connection | Integrated cable |
| Display | LED |
| Diagnostic Function | Yes |
| Cycle Monitoring | Switching-cycle counter |
| Mounting | Cylinder slot |
| Housing | Compact |
| Protection | Industrial sensor protection |
| Application | Pneumatic position monitoring |
| Category | Cylinder Sensors |
