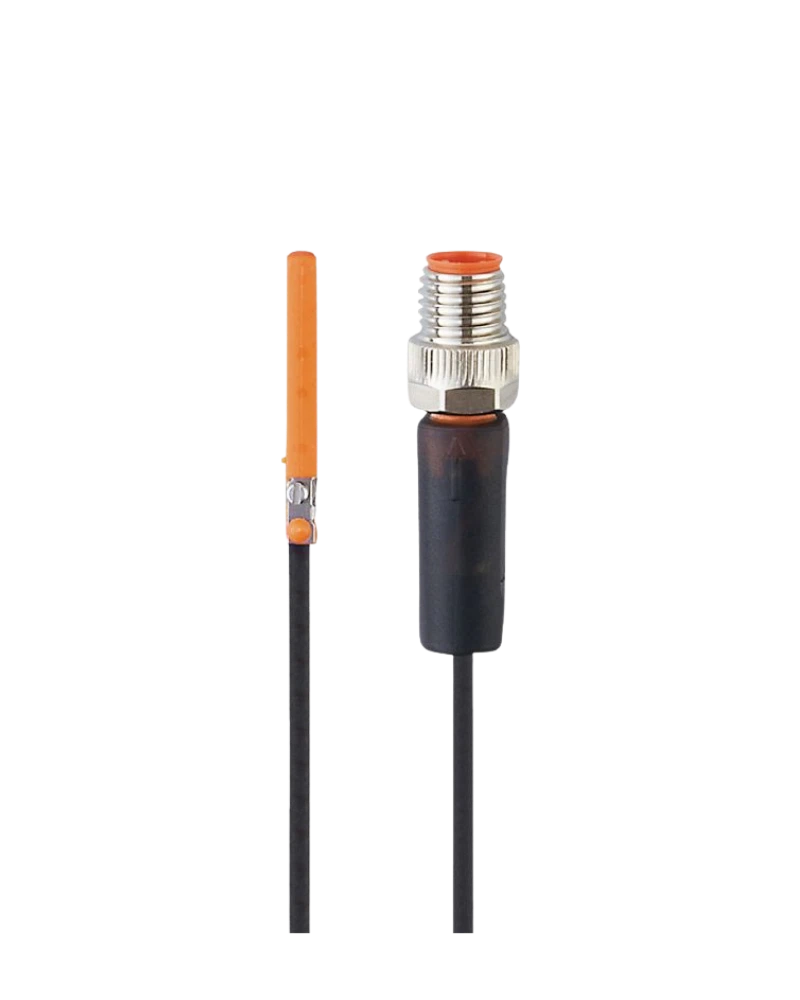

The MK5373 is a compact cylinder sensor designed to detect the position of magnetic pistons in pneumatic cylinders. Its GMR cell provides dependable magnetic-field detection while the compact construction supports convenient installation in suitable cylinder slots. The sensor is particularly useful where reliable cylinder-position feedback is required for automated sequencing and machine control. Its 0.3 m cable provides a practical connection arrangement for compact installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The sensor uses GMR-based magnetic detection to identify the position of the piston inside a compatible cylinder. When the piston magnet reaches the sensing zone, the sensor generates a corresponding switching signal for the connected control system. The compact housing supports installation close to the cylinder body without unnecessarily increasing the machine footprint. This makes the MK5373 suitable for repeated position monitoring in automated pneumatic equipment.
The MK5373 is intended for industrial automation environments where repeatable cylinder-position detection is important. Its compact design, integrated cable and suitable mounting arrangement help simplify machine installation. The GMR sensing principle provides stable magnetic detection and supports dependable feedback during pneumatic movement. The sensor can therefore contribute to reliable sequencing, positioning and monitoring of automated machinery.
The MK5373 can be used for end-position monitoring, pneumatic actuator feedback, pick-and-place equipment and automated handling systems. It helps controllers determine whether a pneumatic cylinder has reached the required position before the next machine operation begins. This supports coordinated machine sequences and reduces dependence on manual position checking. Its compact construction is particularly useful where installation space around pneumatic cylinders is limited.
GMR cell for magnetic cylinder position detection
Compact cylinder sensor construction
Designed for compatible pneumatic cylinders
0.3 m integrated cable connection
Reliable magnetic piston detection
Suitable for automated position feedback
Space-saving installation concept
Fast switching-state indication
Suitable for industrial automation systems
IFM industrial sensor design
Pneumatic cylinder end-position detection
Automated material handling equipment
Pick-and-place machines
Pneumatic automation systems
Assembly machinery
Packaging equipment
Machine sequencing applications
Industrial motion monitoring
Robotic pneumatic mechanisms
Factory automation systems
| Specification | Details |
|---|---|
| Product Code | MK5373 |
| Model | MKC3028BAPKG/G/0,3M/ZH/ASR |
| Brand | IFM |
| Product Type | Cylinder sensor |
| Sensor Technology | GMR cell |
| Application | Cylinder position detection |
| Target | Magnetic piston |
| Cylinder Compatibility | Compatible pneumatic cylinders |
| Mounting Style | Cylinder-slot mounting |
| Housing Design | Compact industrial housing |
| Connection | Integrated cable |
| Cable Length | 0.3 m |
| Cable Variant | 0,3M |
| Sensor Principle | Magnetic sensing |
| Output | Switching signal |
| Installation | Direct cylinder installation |
| Sensing Element | GMR |
| Status Indication | LED switching indication |
| Housing Material | Industrial-grade sensor housing |
| Protection | Designed for industrial environments |
| Operating Environment | Industrial automation |
| Position Detection | Piston/end-position detection |
| Product Family | IFM cylinder sensors |
| Category | Sensors / Cylinder Sensors |
| Manufacturer | IFM |
