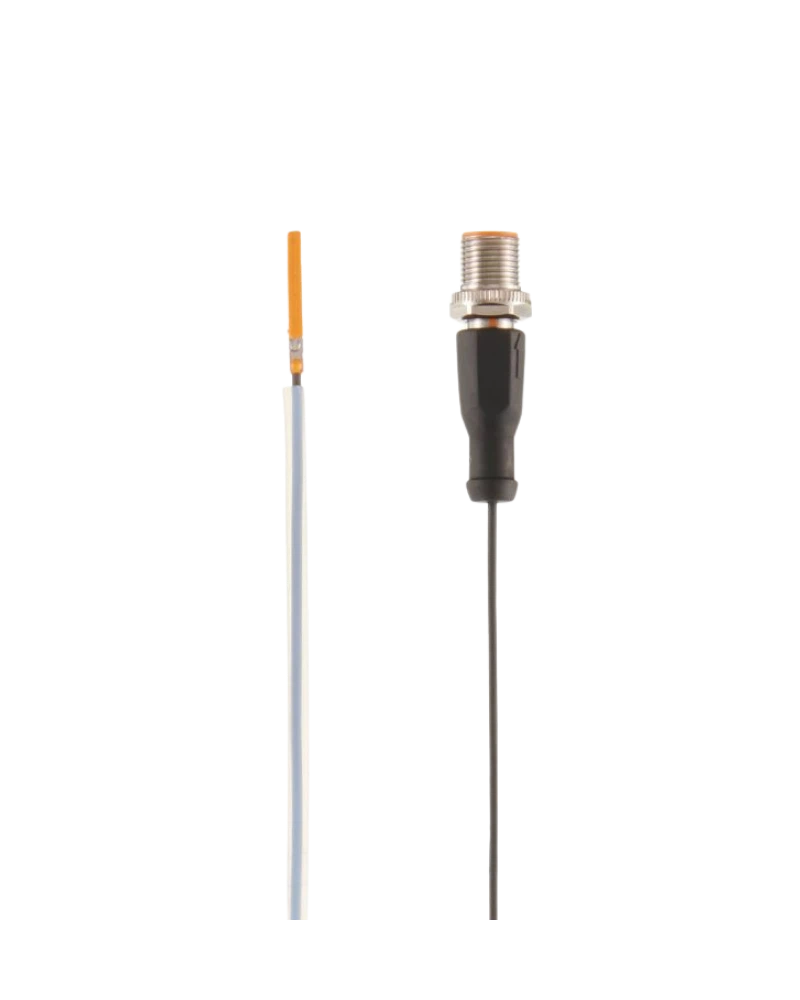

The IFM MK5372 C-slot cylinder sensor is designed for fast and reliable piston-position detection in pneumatic cylinders. Its magnetic sensing system provides approximately 2.8 mT sensitivity and supports piston travel speeds above 10 m/s. The sensor uses an NPN normally-open output and operates from 10–30 V DC. Its compact 17.5 × 2.8 × 7.7 mm housing, 0.3 m cable and IP65/IP67 protection provide reliable performance in industrial automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5372 is a compact C-slot cylinder sensor designed for non-contact magnetic detection of pneumatic piston positions. Its compact housing is suitable for automated machinery where available installation space is restricted. The sensor detects the magnetic field of the piston and provides a reliable switching output. Its design supports integration into PLC-based machine-control systems.
The sensor provides 2.8 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its NPN normally-open output can switch at frequencies up to 10 kHz. The sensor operates from a 10–30 V DC supply and includes electrical protection functions. This combination makes it suitable for fast and repetitive pneumatic actuator applications.
The MK5372 uses a compact C-slot design and a quick mounting arrangement. Its 0.3 m cable provides convenient connection to control wiring. The sensor can be used in packaging, assembly, material handling and robotic pneumatic systems. Its IP65/IP67 protection supports reliable operation in industrial automation environments.
C-slot cylinder sensor
Magnetic sensing
NPN normally-open output
10–30 V DC
2.8 mT sensitivity
10 kHz switching frequency
Travel speed above 10 m/s
0.3 m cable
Compact housing
Quick mounting
17.5 × 2.8 × 7.7 mm dimensions
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinder monitoring
Packaging machines
Assembly systems
Robotic actuators
Material handling
Pick-and-place systems
Conveyor automation
Production equipment
Machine control
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5372 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028-ANKG/G/0,3M/ZH/US |
| Sensor Principle | Magnetic |
| Sensor Technology | GMR-type magnetic sensing |
| Cylinder Profile | C-slot |
| Electrical Design | NPN |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Housing Dimensions | 17.5 × 2.8 × 7.7 mm |
| Hysteresis | Low |
| Repeatability | Model-specific |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | C-slot |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
