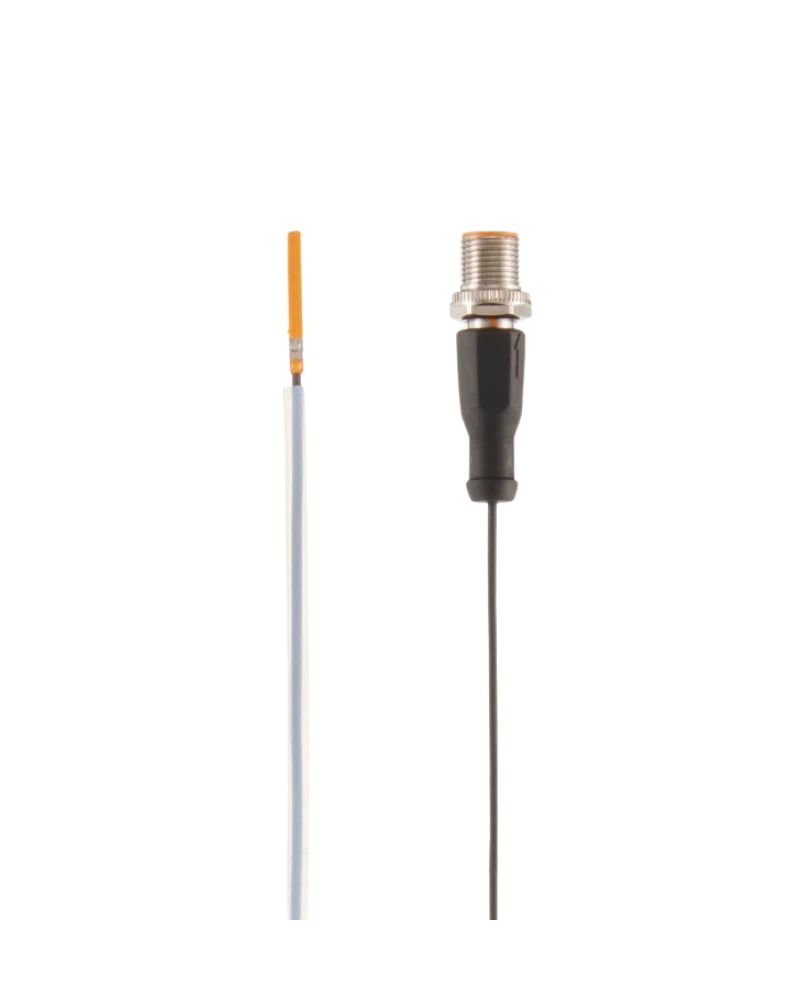

The IFM MK5368 cylinder sensor with AMR cell provides reliable magnetic piston-position detection for C-slot pneumatic cylinders. Its PNP normally-open output operates from 10–30 V DC and supports approximately 2 mT magnetic sensitivity. The compact housing is designed for flush mounting and space-efficient cylinder installation. Its 0.3 m cable, high switching capability, protective functions and IP65/IP67 protection make it suitable for packaging, assembly and automated pneumatic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5368 uses AMR technology for non-contact detection of pneumatic cylinder piston position. The compact sensor design supports installation directly into suitable cylinder grooves. Its magnetic sensing principle allows reliable switching without mechanical wear. The sensor can provide position feedback to PLCs, machine controllers and automation systems.
The sensor provides approximately 2 mT magnetic sensitivity and supports high piston travel speeds. Its PNP normally-open output is suitable for industrial control applications. High switching frequency enables reliable detection during repetitive actuator cycles. Reverse-polarity, short-circuit and overload protection contribute to dependable machine operation.
The MK5368 includes a 0.3 m cable and is designed for compact C-slot installation. Its flush mounting keeps the sensor profile close to the cylinder body. It can be used in packaging machines, assembly systems, pneumatic grippers and material handling equipment. IP65/IP67 protection supports operation in common industrial environments.
AMR sensing cell
C-slot cylinder sensor
PNP normally-open output
10–30 V DC
2 mT sensitivity
High switching frequency
0.3 m cable
Flush mounting
Compact housing
Fastening clamp
Yellow LED
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinders
Packaging machines
Assembly automation
Robotic grippers
Material handling
Pick-and-place systems
Conveyor equipment
Machine automation
Production lines
Industrial control
| Specification | Details |
|---|---|
| Product Code | MK5368 |
| Brand | IFM |
| Product Type | Cylinder sensor with AMR cell |
| Model | MKC3020BBPKG/A/0,3M/ZH/US |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | Approx. 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
