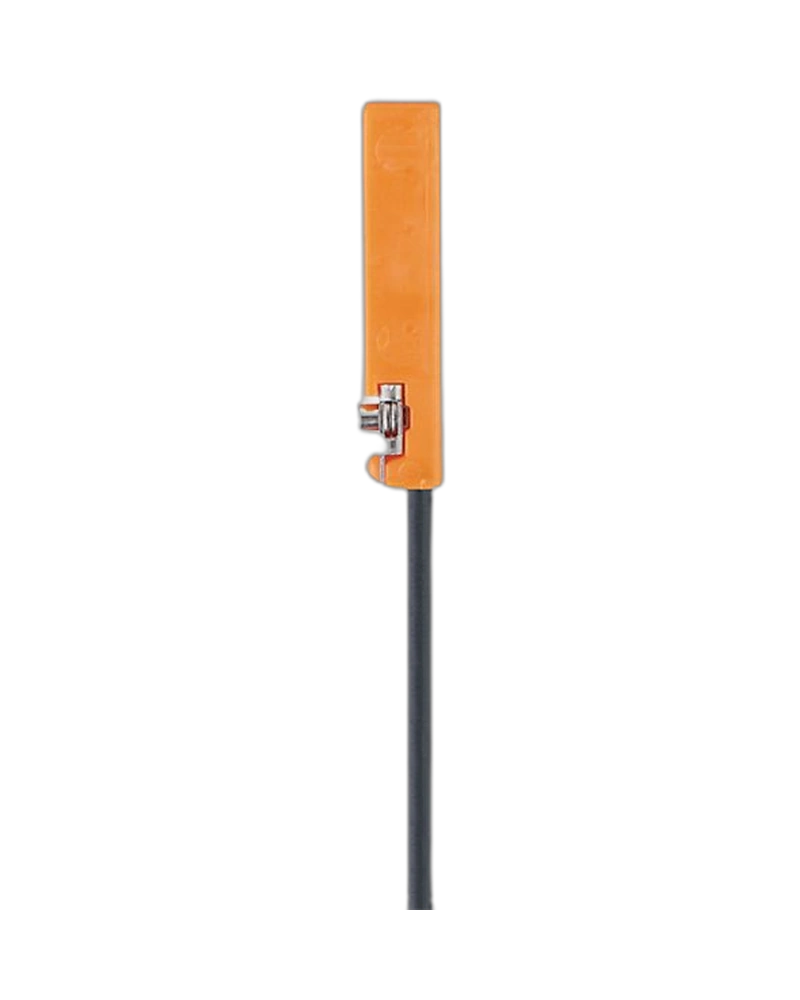

The IFM MK5365 cylinder sensor with GMR cell is designed for precise magnetic detection of pneumatic cylinder piston positions. It provides a PNP/NPN normally-open output and operates from 10–30 V DC. The sensor offers 2.8 mT magnetic sensitivity, high-speed piston detection and low hysteresis for accurate switching. Its compact 26.1 mm housing, stable fastening arrangement and IP65/IP67 protection make it suitable for industrial automation, robotics and pneumatic handling equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5365 provides reliable non-contact position sensing using a GMR magnetic cell. It is designed for pneumatic cylinder applications where compact and repeatable position feedback is required. Its small housing allows installation in restricted spaces. The sensor can be integrated into automated machinery and pneumatic control systems.
The sensor provides approximately 2.8 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its PNP/NPN normally-open electrical design provides flexible machine integration. The documented hysteresis is below 0.12 mm and repeatability is below 0.2 mm. These characteristics support precise position detection during repetitive actuator movement.
The MK5365 uses a compact fastening clamp and is designed for cylinder installation. Its housing dimensions of approximately 26.1 × 2.8 × 5.5 mm allow space-efficient mounting. The sensor is suitable for pneumatic automation, robotic actuators and material handling systems. IP65/IP67 protection supports reliable operation in industrial environments.
GMR cell
PNP/NPN output
Normally-open function
10–30 V DC
2.8 mT sensitivity
High-speed piston detection
Low hysteresis
Repeatability below 0.2 mm
Compact dimensions
Fastening clamp
Yellow LED
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinders
Robotic actuators
Packaging machinery
Assembly automation
Material handling
Pick-and-place systems
Conveyor systems
Machine control
Production lines
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5365 |
| Brand | IFM |
| Product Type | Cylinder sensor with GMR cell |
| Model | MKC2028BARKG/G/ZH |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 4 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <0.12 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Mounting | Fastening clamp |
| Connection | Model-specific cable |
| Manufacturer | IFM electronic |
