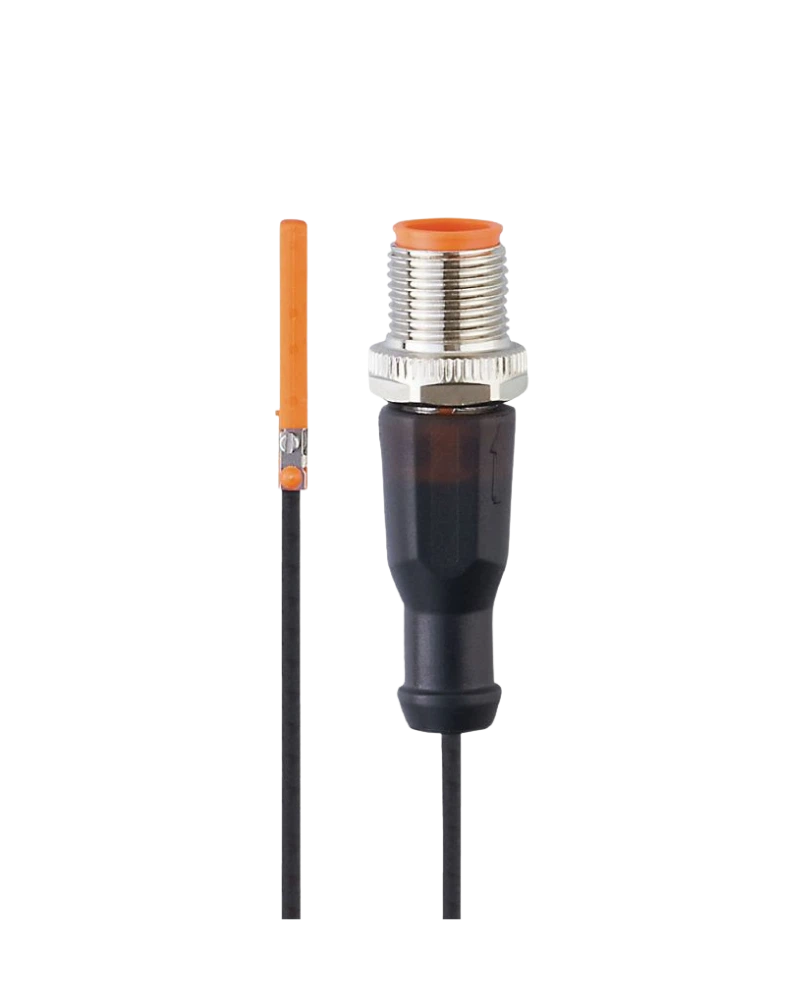

The IFM MK5363 cylinder sensor with GMR cell is designed for accurate and reliable piston-position detection in pneumatic automation systems. Its PNP/NPN normally-open output operates from 10–30 V DC and provides approximately 2.8 mT magnetic sensitivity. The sensor supports high-speed piston travel and compact installation. Its 0.3 m connection cable, robust housing, electrical protection and IP65/IP67 protection make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5363 uses GMR magnetic sensing to detect the position of pneumatic cylinder pistons. It provides non-contact detection, reducing mechanical wear and supporting dependable long-term operation. Its compact housing allows installation in space-constrained actuator assemblies. The PNP/NPN output configuration offers flexibility when connecting to different control architectures.
The sensor operates from 10–30 V DC and has approximately 2.8 mT magnetic sensitivity. Its switching system supports rapid piston movement and repetitive machine cycles. Hysteresis is below 0.12 mm in the documented specification, with repeatability below 0.2 mm. Electrical protection features help safeguard the sensor against common industrial wiring faults.
The MK5363 uses a compact mounting arrangement and 0.3 m cable connection. Its design supports stable installation in pneumatic cylinder profiles. The sensor can be used in packaging, assembly, robotics and material handling systems. Its robust construction and IP65/IP67 protection make it suitable for factory automation environments.
GMR sensing cell
PNP/NPN electrical design
Normally-open output
10–30 V DC
2.8 mT sensitivity
High-speed sensing
0.3 m cable
Compact housing
Low hysteresis
Repeatability below 0.2 mm
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Non-contact operation
Pneumatic cylinder monitoring
Packaging machines
Assembly equipment
Robotic actuators
Material handling
Conveyor systems
Pick-and-place systems
Machine automation
Industrial production
Automated handling
| Specification | Details |
|---|---|
| Product Code | MK5363 |
| Brand | IFM |
| Product Type | Cylinder sensor with GMR cell |
| Model | MKC2028BARKG/G/0.3M/ZH/US |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 4 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <0.12 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Mounting | Screw fastening |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
