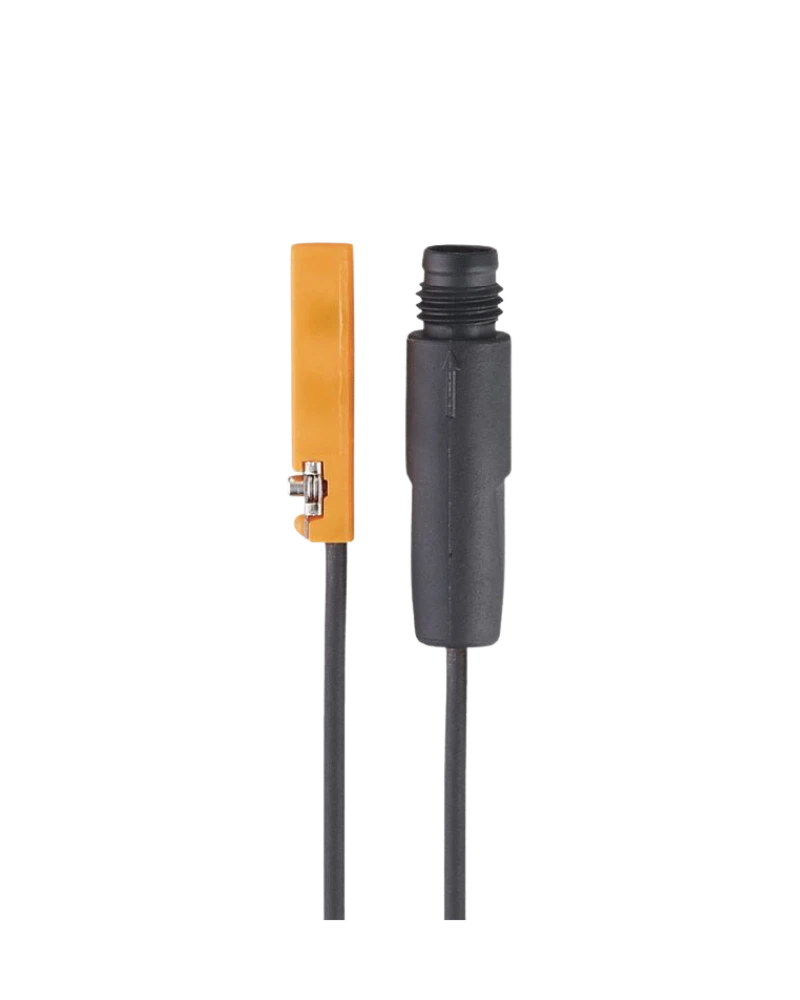

The IFM MK5362 cylinder sensor with GMR cell provides accurate magnetic piston-position detection for pneumatic cylinders. It uses a PNP/NPN normally-open output and operates from 10–30 V DC, providing flexible integration with industrial control systems. Its 2.8 mT magnetic sensitivity, high-speed detection and compact housing support reliable automation. The 0.3 m cable with M8 connector and patented screw mounting method provide stable positioning and convenient strain relief.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5362 is a GMR-based cylinder sensor designed for reliable detection of pneumatic piston positions. Its magnetic sensing element enables non-contact monitoring without mechanical contact with the moving actuator. The sensor features a compact housing suitable for space-limited cylinder installations. Its mounting design provides stable positioning during machine operation.
The sensor provides approximately 2.8 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its PNP/NPN normally-open switching arrangement allows flexible connection to compatible control systems. The sensor supports repeatable detection with low hysteresis. Short-circuit and overload protection improve reliability in industrial automation applications.
The MK5362 features a patented screw-based mounting method designed to provide stable positioning and strain relief. Its 0.3 m cable and M8 connector offer a compact connection solution. This makes the sensor suitable for pneumatic cylinders, packaging machinery, material handling and robotic equipment. Its compact design helps reduce the installation footprint around the actuator.
GMR sensing cell
PNP/NPN output
Normally-open switching
10–30 V DC supply
2.8 mT magnetic sensitivity
High-speed piston detection
0.3 m cable
M8 connector
Patented screw mounting
Stable positioning
Strain relief
Compact housing
Reverse polarity protection
Short-circuit protection
Overload protection
Pneumatic cylinders
Packaging machinery
Assembly equipment
Robotic actuators
Material handling
Pick-and-place systems
Conveyor equipment
Industrial automation
Machine tools
Production machinery
| Specification | Details |
|---|---|
| Product Code | MK5362 |
| Brand | IFM |
| Product Type | Cylinder sensor with GMR cell |
| Model | MKC2028BARKG/G/0.3M/ZH/AS |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 4 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <0.12 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Mounting | Screw fastening |
| Cable Length | 0.3 m |
| Connector | M8 |
| Manufacturer | IFM electronic |
