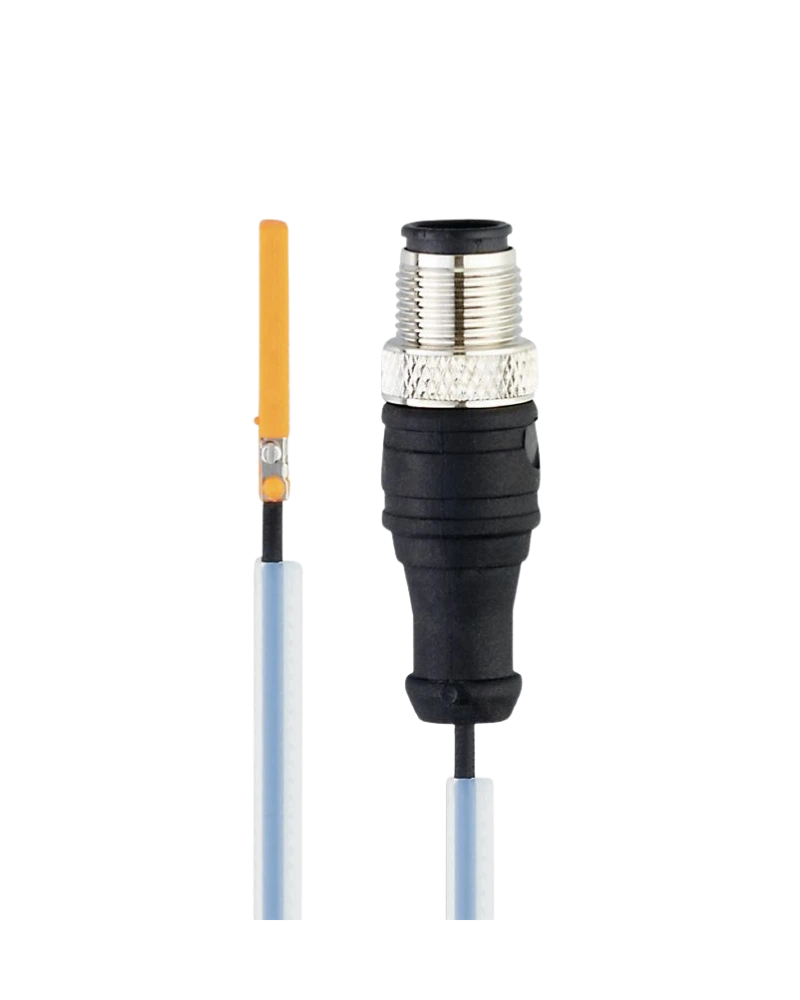

The IFM MK5357 C-slot cylinder sensor uses GMR magnetic sensing for reliable piston-position detection in pneumatic cylinders. It features a PNP normally-open output, 10–30 V DC operating voltage, 2.8 mT magnetic sensitivity and switching frequencies up to 10 kHz. The flush-mountable housing and 0.3 m PUR cable provide convenient installation. IP65/IP67 protection, reverse-polarity protection and short-circuit protection support dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5357 is a compact GMR cylinder sensor designed for non-contact position detection. It is intended for C-slot pneumatic cylinders where accurate piston feedback is required. The sensor detects the magnetic field of the piston and provides a reliable electrical switching signal. Its flush-mountable design helps maintain a compact cylinder installation.
The sensor provides 2.8 mT magnetic sensitivity and supports travel speeds above 10 m/s. Its switching frequency can reach 10 kHz for high-speed pneumatic applications. The PNP normally-open output is suitable for industrial PLC and controller inputs. Its IP65/IP67 protection and integrated electrical protection functions improve operational reliability.
The MK5357 uses a 0.3 m PUR cable with connector and is flush mountable. Its compact PA housing and stainless-steel fastening clamp provide secure installation. The sensor is suitable for automated packaging, assembly, material handling and robotic equipment. It is particularly useful where fast and repeatable pneumatic cylinder feedback is required.
GMR cylinder sensor
C-slot mounting
PNP normally-open output
10–30 V DC
2.8 mT sensitivity
10 kHz switching frequency
Travel speed above 10 m/s
0.3 m PUR cable
Flush mountable
PA housing
Stainless-steel clamp
Yellow LED
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Pneumatic cylinder position detection
Packaging automation
Assembly machinery
Robotic systems
Material handling
Pick-and-place equipment
Conveyor systems
Machine sequencing
Production lines
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5357 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/0,3M/ZH/US |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Clamp Material | Stainless steel |
| Cable | PUR |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
