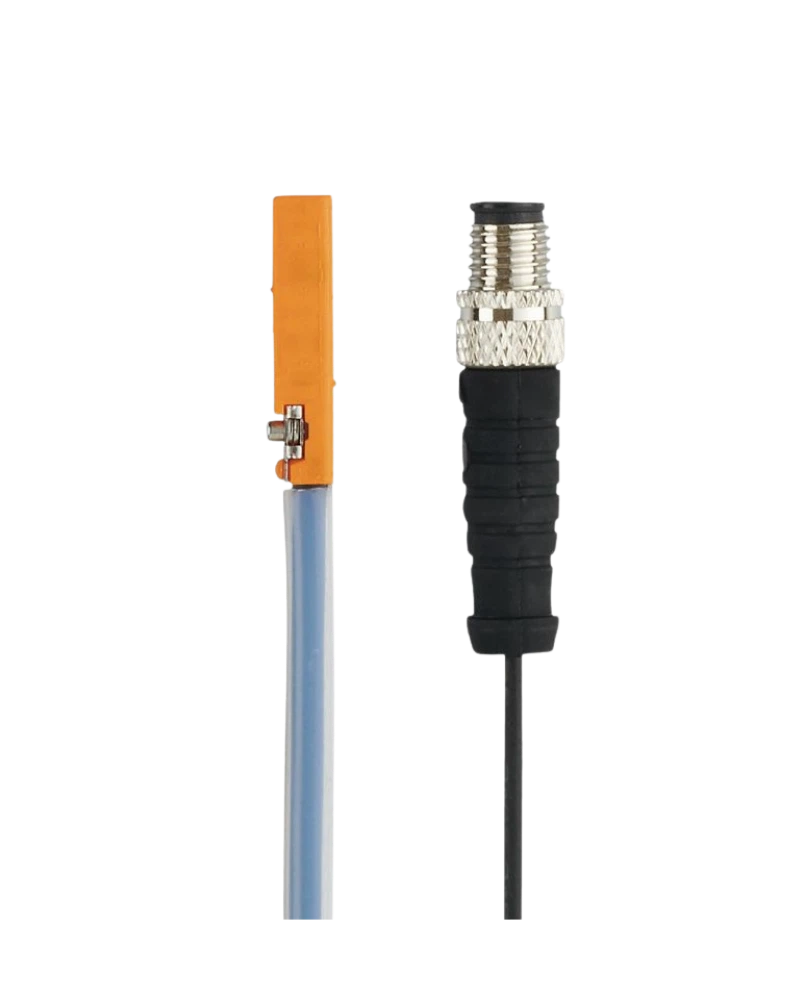

The IFM MK5354 C-slot cylinder sensor is a GMR-based magnetic sensor designed for accurate and fast piston-position detection. It operates from 10–30 V DC and provides a PNP normally-open output with approximately 2.8 mT magnetic sensitivity. Its high switching frequency supports rapid pneumatic actuator movement, while the compact C-slot design enables easy installation. The 0.3 m cable, robust housing and IP65/IP67 protection make it suitable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5354 provides reliable non-contact position sensing for pneumatic cylinders. Its GMR sensing element detects the magnetic field from the cylinder piston and generates a switching signal for control systems. The C-slot design allows installation directly in compatible cylinder profiles. Its compact size helps reduce installation space requirements.
The sensor provides approximately 2.8 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its high-frequency switching capability makes it suitable for repetitive automated cylinder movement. The PNP normally-open output provides convenient PLC integration. Electrical protection features help protect the sensor during abnormal operating conditions.
The MK5354 is supplied with a 0.3 m cable and designed for C-slot installation. Its compact housing and fastening arrangement simplify installation and adjustment. The sensor can be used in packaging, assembly, robotic and material-handling equipment. Its IP65/IP67 protection supports dependable operation in industrial environments.
GMR magnetic sensing
C-slot mounting
PNP normally-open output
10–30 V DC
2.8 mT sensitivity
High switching frequency
0.3 m cable
Compact housing
Flush mounting
Fast installation
LED indication
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinder monitoring
Packaging machines
Assembly equipment
Robotic systems
Material handling
Pick-and-place equipment
Conveyor systems
Machine automation
Production lines
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | MK5354 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/0,3M/ZH/ASR |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
