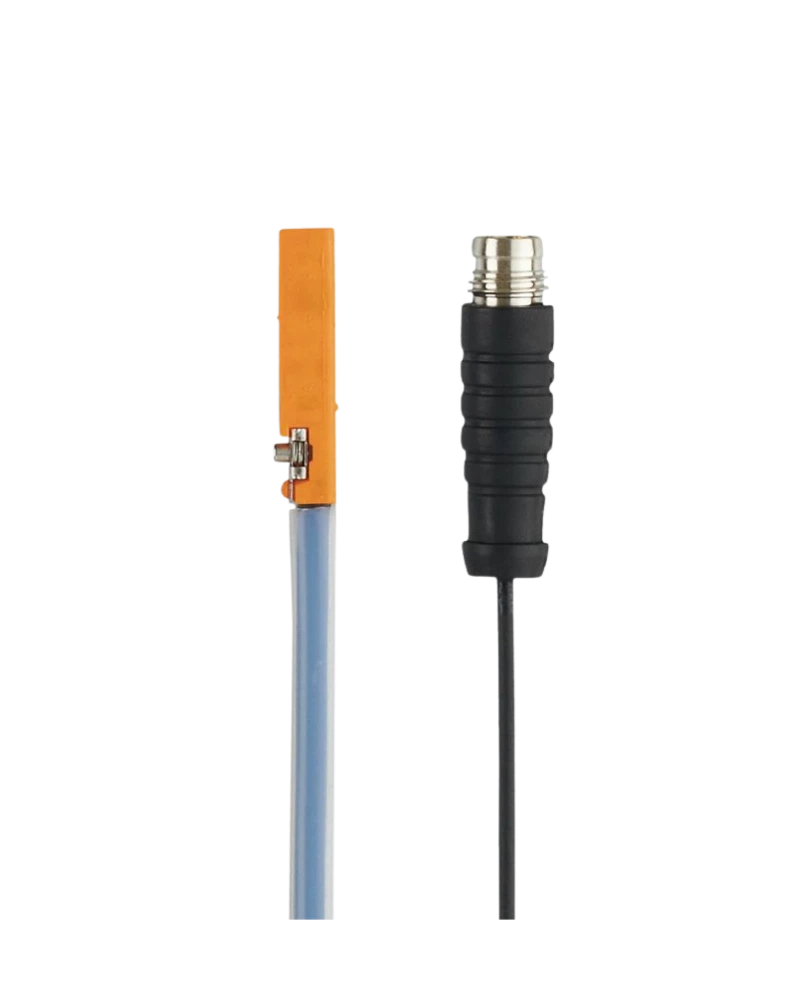

The IFM MK5353 C-slot cylinder sensor provides reliable magnetic piston-position detection using GMR technology. Its compact construction is designed for C-slot pneumatic cylinders and supports fast switching for automated motion control. The sensor operates from 10–30 V DC and provides a PNP normally-open output with approximately 2.8 mT magnetic sensitivity. The 0.3 m cable and IP65/IP67 protection provide convenient integration into industrial automation machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5353 is a compact GMR-based cylinder sensor developed for non-contact piston-position detection. It can be installed directly into C-slot pneumatic cylinders and provides reliable switching feedback. The sensor is designed to work with industrial control systems and PLC inputs. Its compact construction makes it suitable for applications where installation space is restricted.
The sensor provides approximately 2.8 mT magnetic sensitivity and supports high piston travel speeds. Its PNP normally-open output is suitable for standard automation control circuits. High switching frequency allows reliable detection during repetitive cylinder operation. Electrical protection functions help maintain stable performance in demanding machine environments.
The MK5353 is supplied with a 0.3 m cable and is designed for easy C-slot mounting. Its compact body helps maintain a low installation profile around the cylinder. The sensor is suitable for packaging, assembly, robotics, material handling and pneumatic automation. IP65/IP67 protection supports dependable operation in industrial environments.
GMR sensing technology
C-slot cylinder sensor
PNP normally-open output
10–30 V DC supply
2.8 mT sensitivity
High-speed switching
0.3 m cable
Compact housing
Flush installation
Fast mounting
LED indication
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinders
Packaging machinery
Assembly systems
Robotic automation
Material handling
Conveyor systems
Pick-and-place equipment
Machine control
Production automation
Industrial machinery
| Specification | Details |
|---|---|
| Product Code | MK5353 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/0,3M/ZH/AS |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
