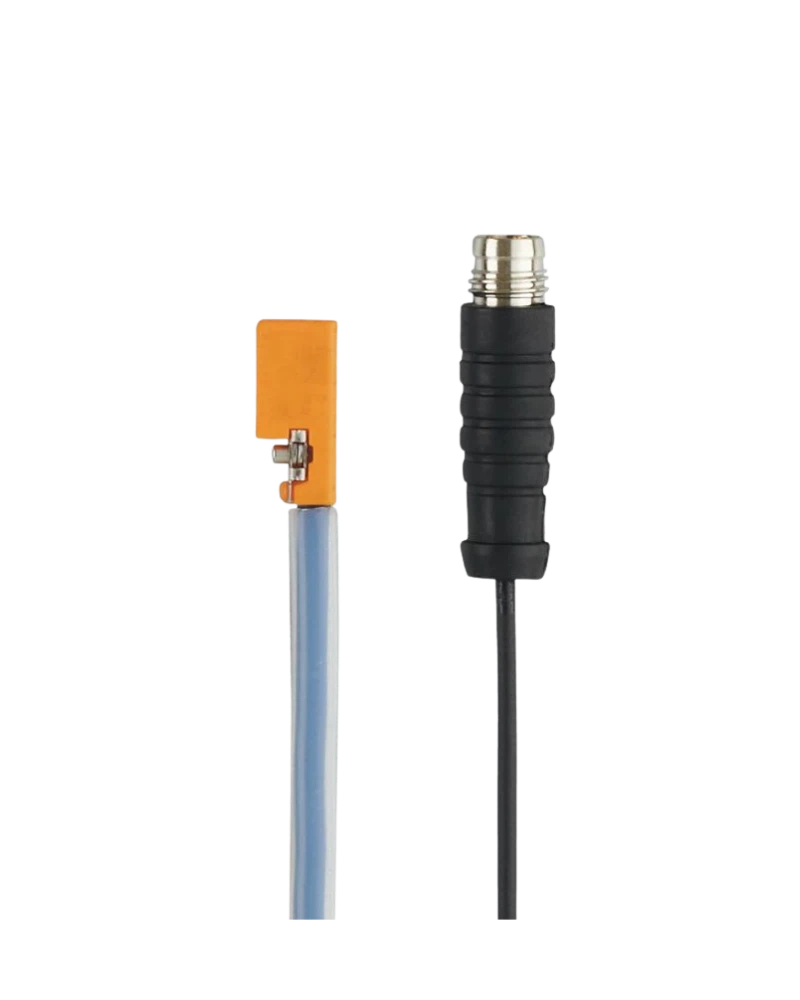

The IFM MK5352 C-slot cylinder sensor is designed for fast magnetic piston-position detection in pneumatic cylinders. Its GMR sensing technology provides approximately 2.8 mT sensitivity and supports high-speed switching for automated actuator movement. The sensor uses a PNP normally-open output and operates from 10–30 V DC. Its 0.3 m cable, compact housing and IP65/IP67 protection provide dependable installation and operation in industrial automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5352 provides non-contact piston-position detection using magnetic GMR technology. Its C-slot design allows the sensor to be integrated directly into compatible pneumatic cylinder profiles. The sensor produces a reliable switching signal for PLCs and automation controllers. Its compact form factor is suitable for machinery where sensor space is limited.
The GMR sensing element provides approximately 2.8 mT magnetic sensitivity and supports high-speed piston movement. The PNP normally-open output enables direct switching to compatible control inputs. High switching frequency supports rapid actuator sequencing. Reverse-polarity, short-circuit and overload protection contribute to dependable industrial operation.
The sensor is designed for easy C-slot installation and includes a 0.3 m cable for connection. Its compact housing allows it to remain close to the cylinder body. The sensor is suitable for packaging machines, assembly equipment, material handling systems and robotic pneumatic actuators. IP65/IP67 protection supports use in typical factory environments.
GMR magnetic sensing
C-slot mounting
PNP normally-open output
10–30 V DC operation
2.8 mT sensitivity
High switching frequency
0.3 m cable
Compact housing
Fast installation
Non-contact detection
Low maintenance
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinder position sensing
Packaging systems
Assembly machinery
Robotic actuators
Material handling
Pick-and-place machines
Conveyor systems
Production lines
Machine automation
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | MK5352 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028-BPKG/G/0,3M/ZH/AS |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
