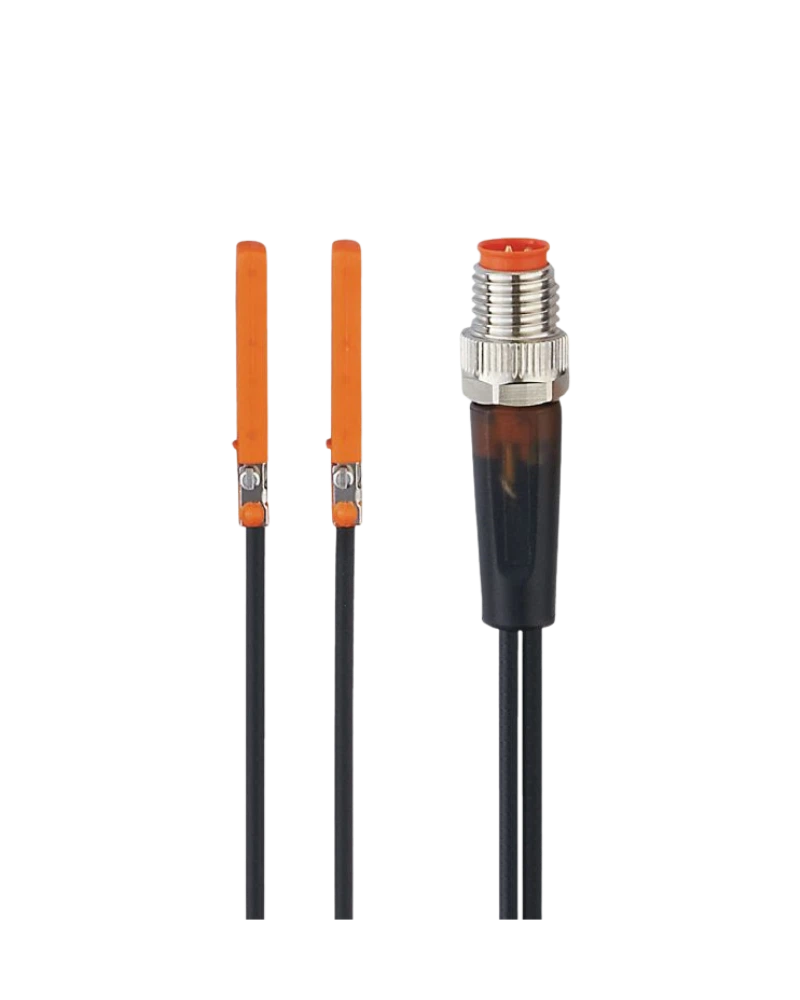

The IFM MK5350 C-slot cylinder sensor is an AMR-based sensor designed for precise position detection on short-stroke pneumatic cylinders. Its very low hysteresis supports accurate switching-point detection, while its high switching frequency enables reliable operation in fast automated systems. The sensor is designed for easy installation into C-slots using a self-locking fastening arrangement. Its compact design makes it suitable for small grippers, packaging machines and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5350 is designed for accurate position sensing on short-stroke pneumatic cylinders and compact actuators. Its AMR magnetic sensing technology detects the cylinder piston without physical contact. The compact construction enables installation in restricted spaces. The sensor is suitable for automated machinery where precise switching points are important.
The sensor provides approximately 2 mT magnetic sensitivity and is designed for high-frequency switching. Its low hysteresis supports accurate piston-position detection and repeatable switching. The sensor operates from a 10–30 V DC supply and provides a PNP normally-open output. Protection functions help maintain reliable performance during electrical disturbances.
The MK5350 can be easily fitted into a compatible C-slot using its self-locking fastening arrangement. This allows quick mounting and adjustment during machine commissioning. Its compact construction is suitable for short-stroke cylinders and small grippers. It is widely suited to packaging, assembly, robotic and pneumatic automation systems.
AMR sensing element
C-slot cylinder sensor
Precise switching-point detection
Very low hysteresis
High switching frequency
PNP normally-open output
10–30 V DC
2 mT magnetic sensitivity
Self-locking fastening
Compact housing
Easy top installation
Fast adjustment
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Short-stroke cylinders
Small pneumatic grippers
Packaging machines
Assembly systems
Robotic equipment
Material handling
Pick-and-place systems
Machine automation
Conveyor systems
Production equipment
| Specification | Details |
|---|---|
| Product Code | MK5350 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020BBPKG/A/0,3/ZH/ASR/2X |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | Low |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Mounting | C-slot |
| Housing Material | PA |
| Fastening | Self-locking clamp |
| Variant | 2X |
| Manufacturer | IFM electronic |
