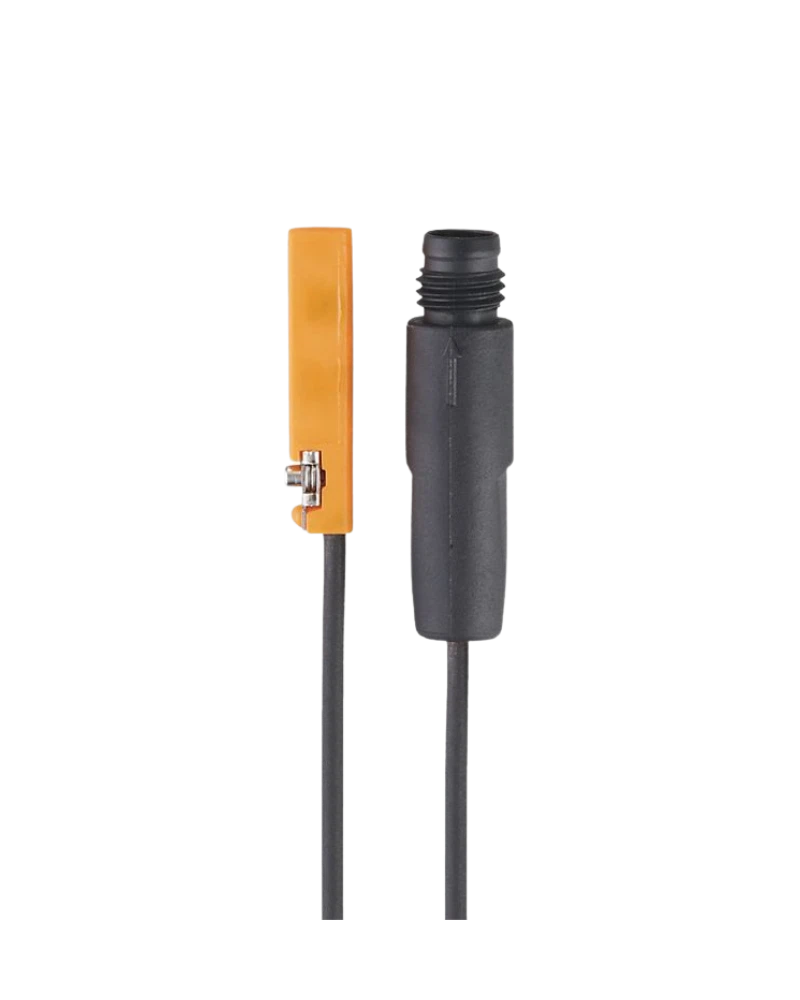

The IFM MK5343 cylinder sensor with AMR cell is designed for accurate magnetic position detection in C-slot pneumatic cylinders. Its PNP normally-open output operates from 10–30 V DC and provides approximately 2 mT magnetic sensitivity with switching frequencies up to 5 kHz. The sensor is flush mountable and supplied with a short 0.15 m PUR cable. Its compact construction, yellow LED indication and IP65/IP67 protection support reliable industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5343 uses AMR magnetic sensing technology to detect piston position without mechanical contact. This provides dependable feedback for pneumatic cylinders and automated actuators. Its compact C-slot housing is designed for space-efficient installation. The sensor can be connected to PLCs and machine controllers through its electrical output.
The sensor provides approximately 2 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its PNP normally-open output can switch at frequencies up to 5 kHz. Low hysteresis and repeatable magnetic detection help provide consistent actuator-position feedback. Reverse-polarity, short-circuit and overload protection improve sensor reliability.
The MK5343 is flush mountable and supplied with a 0.15 m PUR cable for compact machine installations. Its short cable length is useful where the sensor is positioned close to a connection point. The sensor is suitable for pneumatic automation, packaging, assembly and material handling. IP65/IP67 protection supports typical industrial operating environments.
AMR sensing cell
C-slot cylinder sensor
PNP normally-open output
10–30 V DC operation
2 mT magnetic sensitivity
5 kHz switching frequency
0.15 m PUR cable
Flush mounting
Yellow LED
Compact housing
Fast switching
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Pneumatic cylinders
Short-stroke actuators
Packaging machinery
Assembly equipment
Robotic systems
Material handling
Pick-and-place equipment
Conveyor systems
Production automation
Machine control
| Specification | Details |
|---|---|
| Product Code | MK5343 |
| Brand | IFM |
| Product Type | Cylinder sensor with AMR cell |
| Model | MKC3020BBPKG/A/0,15M/ZH/AS |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | Approx. 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Mounting | Flush |
| Housing Material | PA |
| Cable | PUR |
| Cable Length | 0.15 m |
| Manufacturer | IFM electronic |
