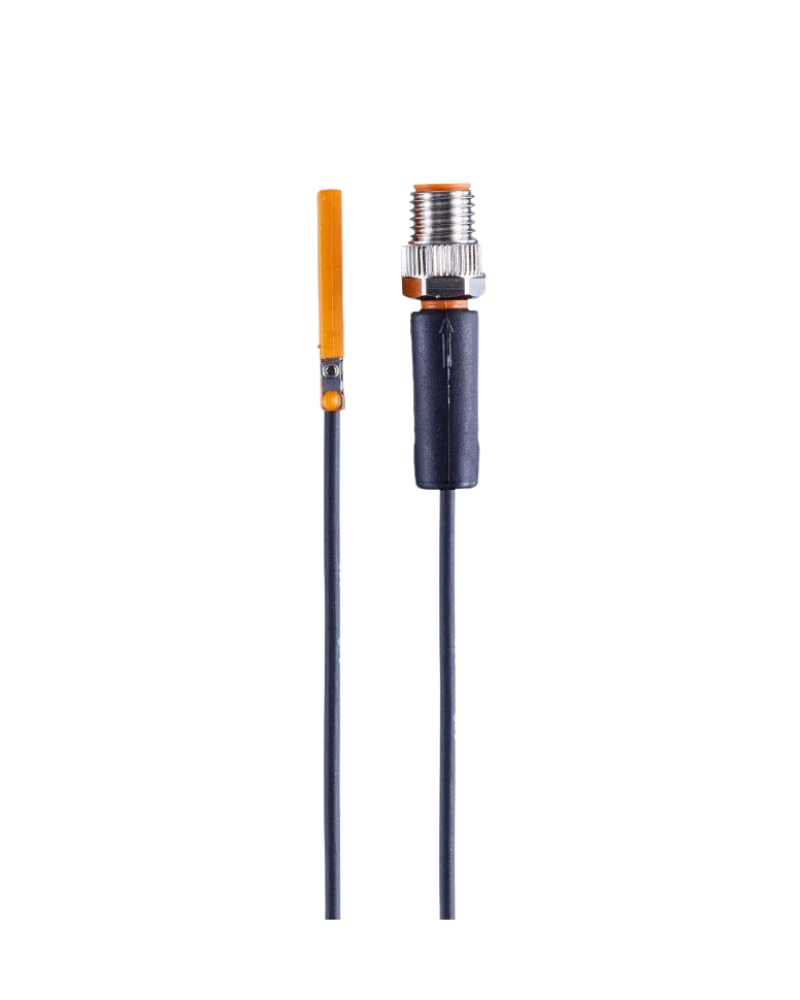

The IFM MK5338 C-slot cylinder sensor uses GMR magnetic sensing for accurate and high-speed piston-position detection. Its PNP normally-open output operates from 10–30 V DC and supports a switching frequency up to 10 kHz. The sensor provides approximately 2.8 mT magnetic sensitivity, travel speeds above 10 m/s and repeatability below 0.2 mm. Its compact C-slot housing, 0.3 m cable and IP65/IP67 protection make it suitable for demanding automation applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5338 is designed for non-contact piston-position monitoring in C-slot pneumatic cylinders. Its GMR cell detects the magnetic field of the piston and provides a reliable electrical switching signal. The compact housing makes it suitable for automated machinery where installation space is limited. It can be integrated with PLC inputs and industrial control systems.
The sensor provides 2.8 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its switching frequency can reach 10 kHz, supporting rapid actuator movement. The approximately 1.5 mm hysteresis and repeatability below 0.2 mm help maintain consistent switching. Integrated electrical protection supports reliable operation during machine faults and wiring disturbances.
The MK5338 uses a compact C-slot mounting arrangement and a 0.3 m cable with connector. Its flush installation helps keep the sensor protected within the cylinder profile. The sensor is suitable for packaging, assembly, robotic handling and automated production equipment. Its IP65/IP67 protection is appropriate for typical industrial environments.
GMR magnetic sensing
C-slot cylinder sensor
PNP normally-open output
10–30 V DC operation
2.8 mT sensitivity
10 kHz switching frequency
Travel speed above 10 m/s
0.3 m cable
Flush mounting
Compact housing
1.5 mm hysteresis
Repeatability below 0.2 mm
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Pneumatic cylinder monitoring
Packaging equipment
Assembly machinery
Robotic automation
Material handling
Pick-and-place machines
Conveyor systems
Production lines
Machine control
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5338 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028-BPKG/G/0,3M/ZH/ASR |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | Approx. 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
