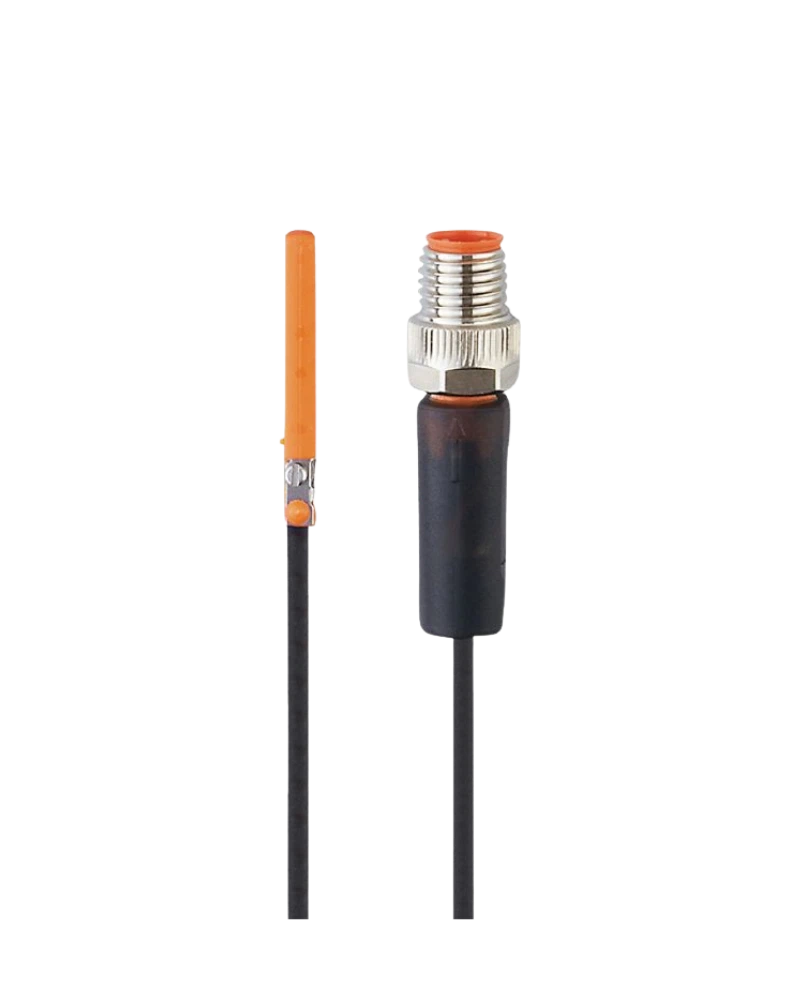

The IFM MK5335 C-slot cylinder sensor is a GMR-based magnetic sensor designed for fast and accurate piston-position detection in pneumatic cylinders. It provides a PNP normally-open output with 2.8 mT magnetic sensitivity and switching frequencies up to 10 kHz. The compact flush-mountable housing supports installation in C-slot cylinders, while IP65/IP67 protection helps withstand industrial environments. Its high-speed response makes it suitable for automated pneumatic systems and production machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5335 provides dependable magnetic position sensing for pneumatic cylinders used in automated equipment. Its GMR cell detects the magnetic field generated by the cylinder piston without physical contact. The compact design allows convenient installation within a C-slot. This makes the sensor useful where accurate position feedback and limited installation space are both important.
The sensor provides approximately 2.8 mT magnetic sensitivity and supports piston speeds above 10 m/s. Its PNP normally-open output can switch at frequencies up to 10 kHz, making it suitable for fast actuator movements. Hysteresis is approximately 1.5 mm with repeatability below 0.2 mm. Protection against reverse polarity, short circuits and overload contributes to reliable operation.
The MK5335 is designed for flush mounting and uses a fastening clamp for secure positioning. Its compact housing can be installed directly in compatible C-slot pneumatic cylinders. The sensor is suitable for packaging, assembly, robotics, material handling and automated production equipment. IP65/IP67 protection helps support operation in industrial environments.
GMR sensing element
C-slot cylinder sensor
PNP normally-open output
10–30 V DC operation
2.8 mT sensitivity
10 kHz switching frequency
Travel speed above 10 m/s
Flush mounting
Compact housing
Fastening clamp
Low hysteresis
Repeatable switching
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Pneumatic cylinder position sensing
Packaging machinery
Assembly automation
Robotic actuators
Material handling
Pick-and-place systems
Conveyor automation
Production lines
Machine control
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | MK5335 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/ZH/ASR |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Mounting | Flush |
| Connection | Cable/connector variant |
| Manufacturer | IFM electronic |
