The IFM MK5330 C-slot cylinder sensor is designed for precise piston-position detection on short-stroke pneumatic cylinders and small grippers. Its AMR magnetic sensing element provides accurate switching with approximately 2 mT sensitivity and a switching frequency of up to 5 kHz. The sensor uses a PNP normally-open output and operates from 10–30 V DC. Its compact housing, 0.3 m cable and IP65/IP67 protection make it ideal for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

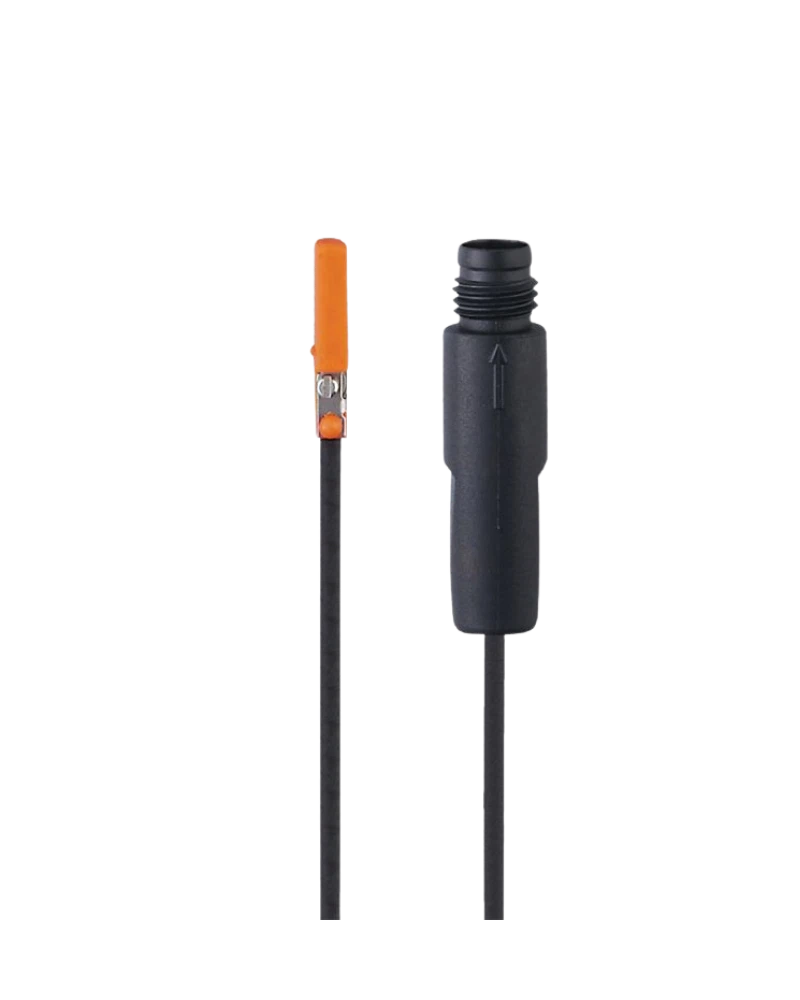

The MK5330 is a compact magnetic cylinder sensor designed for exact switching-point detection. It is particularly useful on short-stroke cylinders where installation space is restricted. The AMR sensing principle detects the magnetic field of the cylinder piston without mechanical contact. This provides dependable position feedback for automated pneumatic systems.
The sensor offers 2 mT magnetic sensitivity and supports piston travel speeds above 10 m/s. Its PNP normally-open output provides a direct switching signal for suitable control systems. A switching frequency up to 5 kHz enables reliable detection during rapid cylinder movement. The sensor also provides reverse-polarity, short-circuit and overload protection for dependable industrial operation.
The MK5330 has a short housing for installation into C-slot cylinders and small grippers. Its fastening clamp allows quick mounting and adjustment. The 0.3 m cable provides convenient connection to nearby control wiring. The sensor is suitable for packaging machines, assembly automation, pneumatic handling equipment and compact robotic mechanisms.
AMR magnetic sensing
C-slot installation
Short housing
PNP normally-open output
10–30 V DC
2 mT magnetic sensitivity
5 kHz switching frequency
0.3 m cable
Fastening clamp
Compact design
High-speed switching
Low hysteresis
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Short-stroke cylinders
Small grippers
Packaging systems
Assembly machines
Robotic handling
Material handling
Pneumatic automation
Conveyor systems
Machine automation
Production equipment
| Specification | Details |
|---|---|
| Product Code | MK5330 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020-BPKG/A/0,3M/ZH/AS |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing | PA |
| Mounting | Flush |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
