The IFM MK5329 C-slot cylinder sensor is designed for accurate switching-point detection on short-stroke pneumatic cylinders and compact grippers. Its AMR magnetic sensing technology provides approximately 2 mT sensitivity with a switching frequency of up to 5 kHz. The PNP normally-open output operates from 10–30 V DC and provides reliable PLC-compatible feedback. Its short housing, flush mounting and IP65/IP67 protection make it suitable for compact industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

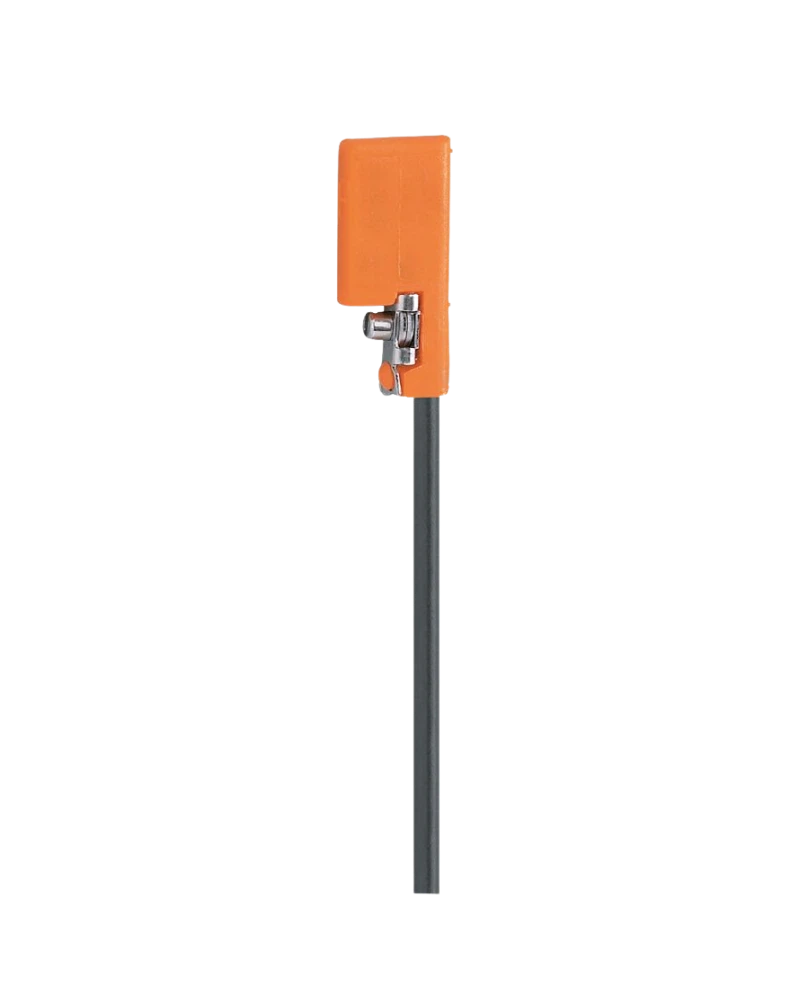

The MK5329 is a compact magnetic cylinder sensor developed for precise piston-position detection. It is particularly suitable for short-stroke cylinders where conventional sensors may require more installation space. Its AMR sensing element detects the piston magnet without physical contact. The sensor can be mounted directly into the cylinder groove and adjusted to the required switching point.
The sensor provides a PNP normally-open output with a switching frequency of up to 5 kHz. Its 2 mT magnetic sensitivity and travel speed above 10 m/s support fast actuator detection. Approximately 1 mm hysteresis and less than 0.2 mm repeatability help maintain stable switching points. Reverse-polarity, short-circuit and overload protection improve operating reliability.
The MK5329 uses a short housing designed for installation in short-stroke cylinders and small grippers. Its self-locking mounting arrangement enables quick installation and adjustment. The sensor can be inserted from the top of the cylinder groove for convenient mounting. It is suitable for packaging, assembly, robotics and pneumatic handling equipment.
AMR magnetic sensor
C-slot mounting
Short housing
PNP normally-open output
10–30 V DC operation
2 mT sensitivity
5 kHz switching frequency
Travel speed above 10 m/s
Flush mounting
Self-locking fastening
Low hysteresis
Repeatability below 0.2 mm
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Short-stroke cylinders
Small pneumatic grippers
Packaging machinery
Assembly equipment
Robotic automation
Pick-and-place systems
Machine tools
Material handling
Conveyor systems
Production automation
| Specification | Details |
|---|---|
| Product Code | MK5329 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020-BPKG/A/ZH |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Fastening Clamp | Stainless steel |
| Manufacturer | IFM electronic |
