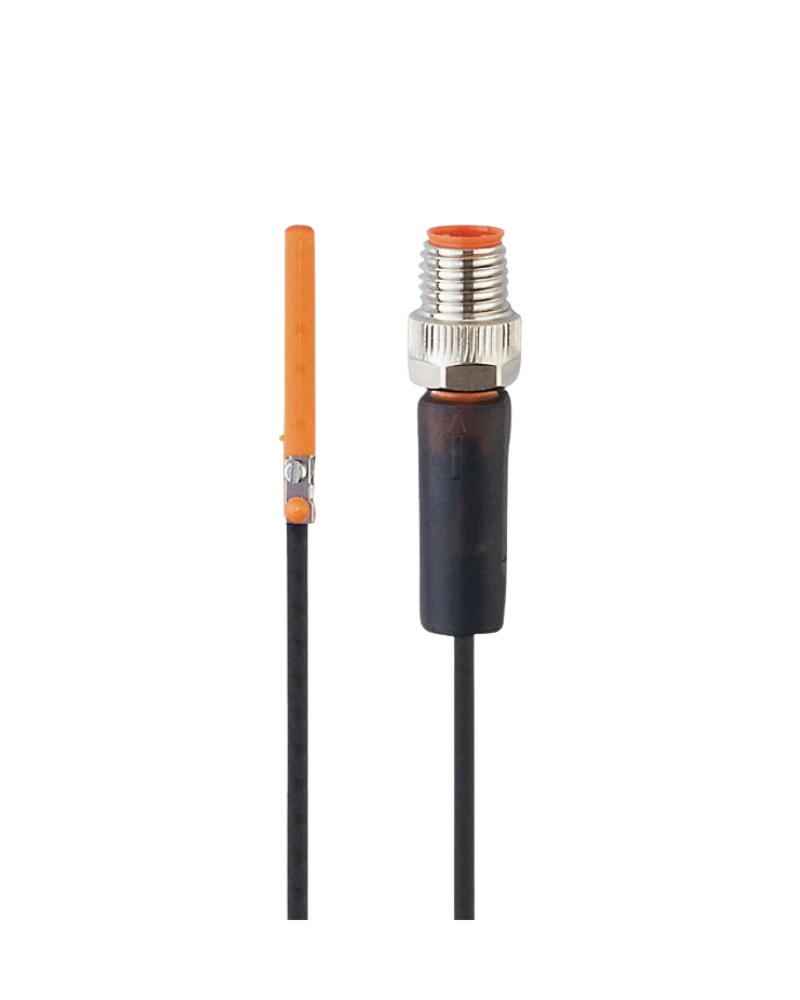

The IFM MK5328 C-slot cylinder sensor is an AMR-based magnetic sensor designed for accurate position detection on pneumatic cylinders. Its compact housing is suitable for short-stroke cylinders and small grippers where installation space is limited. The sensor provides a PNP normally-open output, operates from 10–30 V DC and supports switching frequencies up to 5 kHz. Its 0.3 m cable, low hysteresis and IP65/IP67 protection provide reliable industrial performance
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5328 provides non-contact detection of piston position in C-slot pneumatic cylinders. Its AMR sensing element responds to the magnetic field of the cylinder piston and generates a reliable switching signal. The compact sensor design allows installation in restricted spaces. This makes the sensor useful for automated actuators, small grippers and short-stroke pneumatic mechanisms.
The sensor operates with a 10–30 V DC supply and uses a PNP normally-open switching output. It provides approximately 2 mT magnetic sensitivity and supports piston speeds above 10 m/s. A switching frequency up to 5 kHz allows the sensor to follow rapid actuator movement. Its approximately 1 mm hysteresis and repeatability below 0.2 mm support consistent switching.
The MK5328 is designed for easy installation directly into a C-slot using its fastening clamp. The 0.3 m cable allows convenient connection to machine control wiring. Its compact construction is especially useful in small pneumatic actuators and short-stroke applications. IP65/IP67 protection and robust materials support reliable operation in industrial automation environments.
AMR sensing technology
C-slot cylinder sensor
PNP normally-open output
10–30 V DC supply
2 mT magnetic sensitivity
5 kHz switching frequency
Travel speed above 10 m/s
0.3 m cable
Compact construction
Low hysteresis
Repeatability below 0.2 mm
Fast mounting
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Short-stroke pneumatic cylinders
Small pneumatic grippers
Packaging automation
Assembly machinery
Robotic systems
Pick-and-place equipment
Material handling
Machine automation
Conveyor systems
Production lines
| Specification | Details |
|---|---|
| Product Code | MK5328 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020BBPKG/A/0,3M/ZH/ASR |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | 25.8 × 2.8 × 5 mm |
| Housing Material | PA |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
