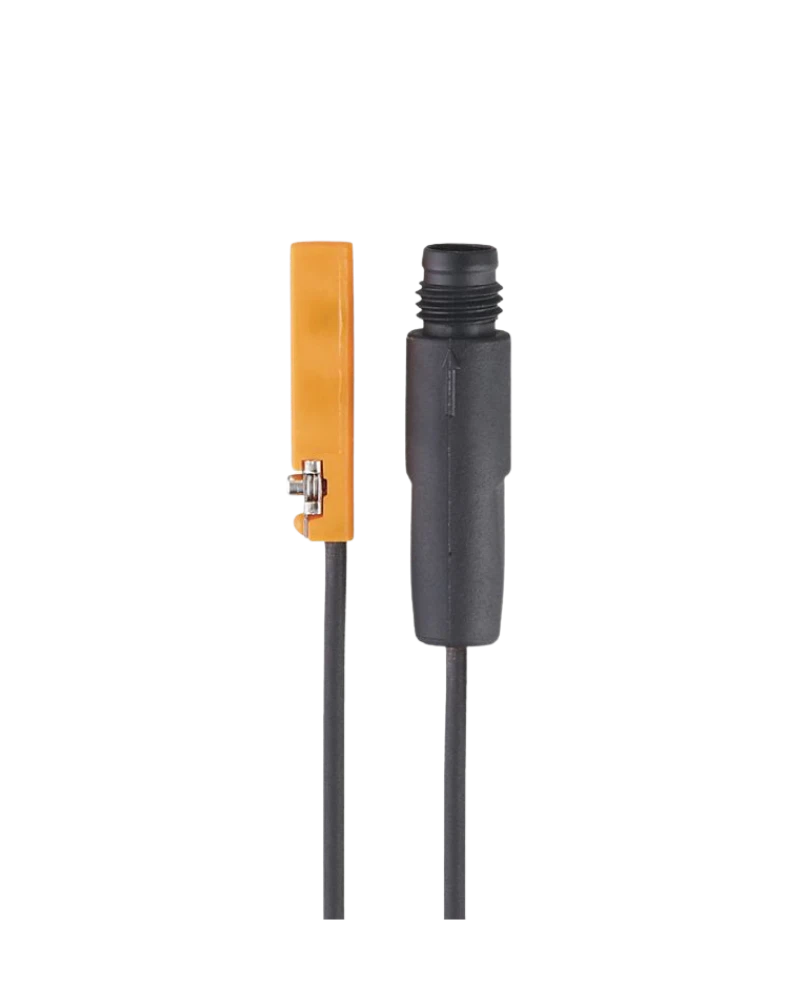

The IFM MK5326 C-slot cylinder sensor provides precise magnetic position detection for pneumatic cylinders, especially compact and short-stroke actuators. Its AMR sensing element offers approximately 2 mT magnetic sensitivity with fast switching performance. The sensor operates from 10–30 V DC and provides a PNP normally-open output. A 0.3 m cable and compact housing simplify installation, while IP65/IP67 protection supports dependable operation in industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5326 is designed for accurate cylinder piston-position detection using AMR magnetic sensing technology. Its compact C-slot construction allows the sensor to be installed directly into compatible pneumatic cylinders. The non-contact sensing principle provides reliable switching without mechanical contact with the moving piston. This makes it suitable for repetitive industrial automation operations.
The MK5326 provides a PNP normally-open output with a switching frequency of up to 5 kHz. Its magnetic response sensitivity is approximately 2 mT and it supports piston travel speeds above 10 m/s. Low hysteresis and repeatability below 0.2 mm help maintain dependable position detection. The sensor also incorporates short-circuit, overload and reverse-polarity protection.
The sensor is supplied with a 0.3 m PUR cable and is designed for convenient C-slot installation. Its compact dimensions make it suitable for short-stroke cylinders and space-restricted machinery. IP65/IP67 protection provides resistance against common industrial environmental conditions. Typical applications include packaging machines, assembly equipment, pneumatic grippers and automated handling systems.
AMR magnetic sensing
C-slot cylinder mounting
PNP normally-open output
10–30 V DC supply
2 mT magnetic sensitivity
5 kHz switching frequency
Travel speed above 10 m/s
0.3 m cable
Compact housing
Stainless-steel fastening clamp
Low hysteresis
High repeatability
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Pneumatic cylinder monitoring
Short-stroke actuator detection
Packaging machines
Assembly automation
Robotic grippers
Material handling
Pick-and-place systems
Conveyor automation
Industrial machinery
Production equipment
| Specification | Details |
|---|---|
| Product Code | MK5326 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020BBPKG/A/0,3M/ZH/AS |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Dimensions | Approx. 26.1 × 2.8 × 5.5 mm |
| Housing Material | PA |
| Cable | PUR |
| Cable Length | 0.3 m |
| Manufacturer | IFM electronic |
