The IFM MK5325 C-slot cylinder sensor is a compact AMR-based magnetic sensor designed for precise piston-position detection on short-stroke pneumatic cylinders and small grippers. It uses a PNP normally-open output and operates from 10–30 V DC. Its compact flush-mountable housing, 2 mT magnetic sensitivity and switching frequency up to 5 kHz provide dependable position feedback. The sensor is suitable for industrial automation, packaging, assembly and pneumatic handling systems
Explore performance details, construction highlights, applications, and technical information in one clear overview.

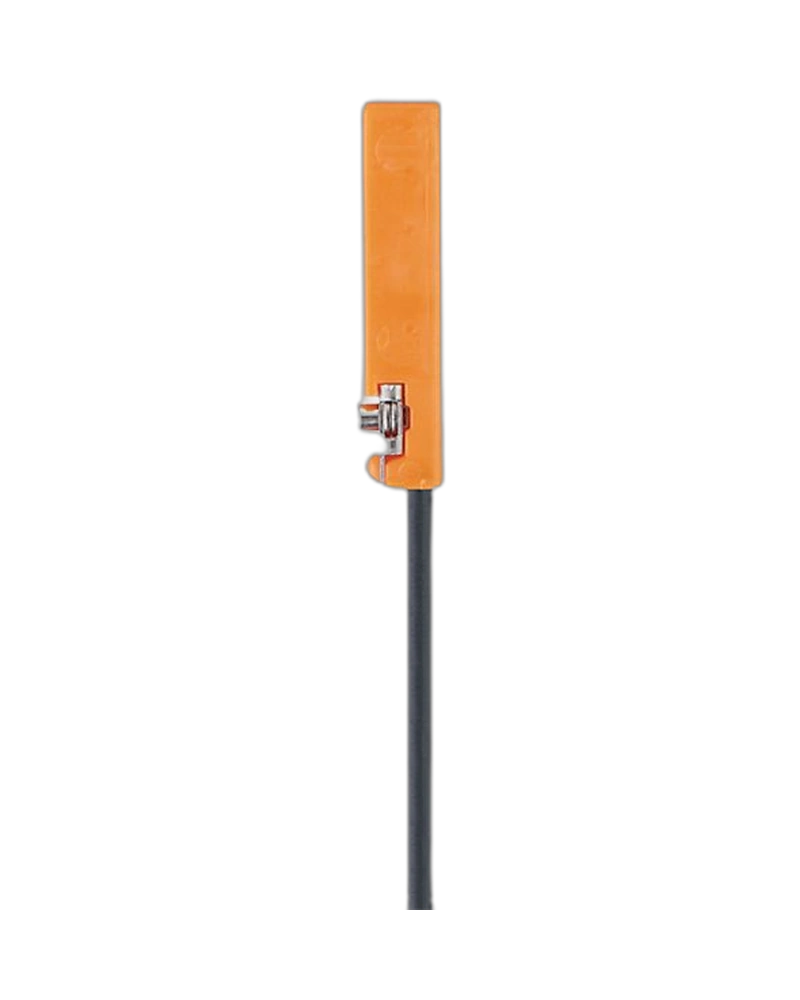

The MK5325 is designed for accurate position detection where compact cylinder sensors are required. Its AMR sensing technology detects the magnetic field generated by a pneumatic cylinder piston. The compact housing can be fitted into C-slot cylinders and small pneumatic grippers. Its low-profile design helps conserve installation space while maintaining reliable switching performance.
The sensor operates from 10–30 V DC and provides a PNP normally-open output. Its 2 mT magnetic sensitivity allows reliable detection of suitable cylinder magnets. The switching frequency of up to 5 kHz supports rapid actuator movement and machine sequencing. Integrated reverse-polarity, short-circuit and overload protection improves operational reliability.
The MK5325 uses a flush-mountable C-slot design and includes a fastening clamp for secure positioning. Its cable connection is suitable for direct connection to compatible control systems. The sensor can be used on short-stroke cylinders, compact grippers and automated handling equipment. Its IP65/IP67 protection supports reliable operation in industrial environments.
AMR sensing element
C-slot cylinder sensor
PNP normally-open output
10–30 V DC operation
2 mT magnetic sensitivity
Up to 5 kHz switching frequency
Travel speed above 10 m/s
Flush mounting
Compact housing
Fastening clamp
Yellow LED indication
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Short-stroke cylinders
Pneumatic grippers
Packaging machinery
Assembly systems
Robotic handling
Machine automation
Material handling
Conveyor equipment
Production lines
Industrial actuators
| Specification | Details |
|---|---|
| Product Code | MK5325 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3020BBPKG/A/ZH |
| Sensor Technology | AMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 5 kHz |
| Magnetic Sensitivity | 2 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Mounting | Flush |
| Fastening Clamp | Stainless steel |
| Connection | Cable |
| Manufacturer | IFM electronic |
