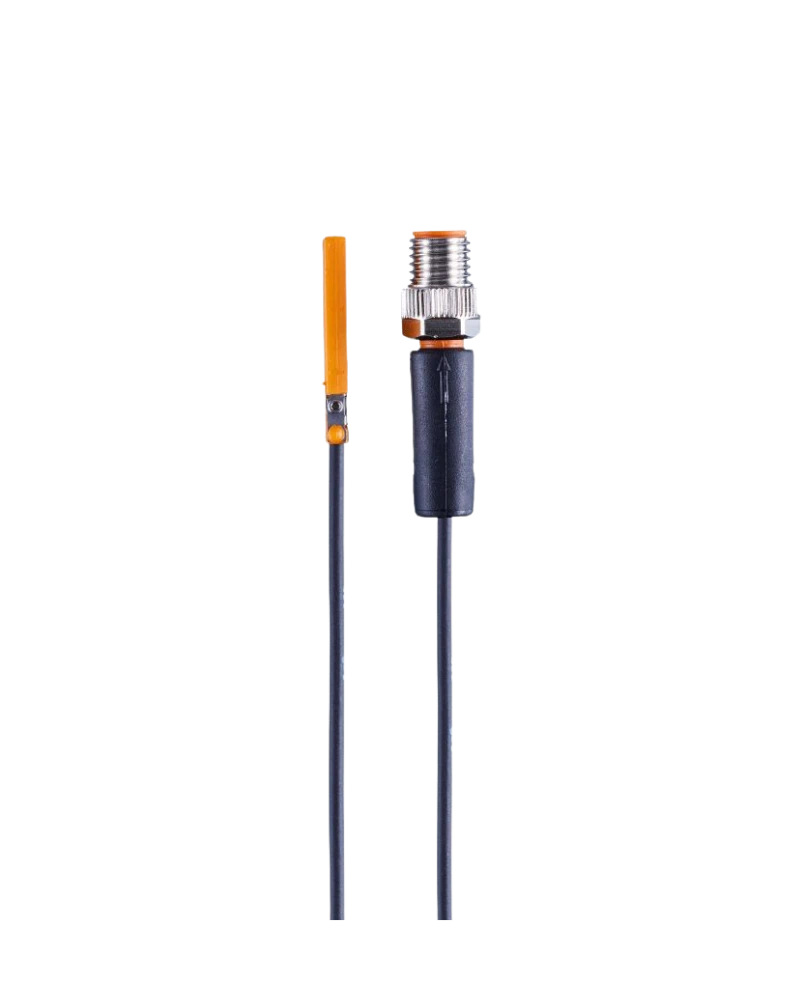

The IFM MK5322 C-slot cylinder sensor is designed for fast and accurate piston-position detection in pneumatic cylinders. Its GMR sensing technology provides reliable magnetic switching with high repeatability and fast response. The sensor features a PNP normally-open output and operates on 10–30 V DC. A 0.5 m cable and compact C-slot mounting design simplify installation, while IP65/IP67 protection supports reliable operation in industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5322 provides dependable position feedback for pneumatic cylinders used in automated machinery. Its GMR sensing element detects the magnetic field of a cylinder piston without physical contact. This non-contact operation reduces mechanical wear and supports long service life. The compact C-slot housing makes it suitable for space-constrained cylinder installations and automated actuator systems.
The sensor offers approximately 2.8 mT magnetic sensitivity and can detect piston movement at speeds above 10 m/s. Its PNP normally-open output provides a simple switching signal to automation controllers. A switching frequency of up to 10 kHz supports high-speed pneumatic applications. Low hysteresis and repeatability below 0.2 mm help provide consistent position feedback.
The MK5322 is designed for flush mounting in C-slot pneumatic cylinders. Its 0.5 m cable provides additional installation flexibility between the cylinder and connection point. The sensor incorporates reverse-polarity, short-circuit and overload protection. It is suitable for packaging, assembly, material handling, robotics and other automated pneumatic applications.
C-slot cylinder design
GMR magnetic sensing
PNP normally-open output
10–30 V DC operation
2.8 mT magnetic sensitivity
Switching frequency up to 10 kHz
Travel speed above 10 m/s
0.5 m cable
Compact housing
Flush mounting
Low hysteresis
High repeatability
Reverse polarity protection
Short-circuit protection
IP65/IP67 protection
Pneumatic cylinder position detection
Packaging machinery
Assembly automation
Material handling equipment
Robotic actuators
Conveyor systems
Machine tools
Production lines
Pick-and-place systems
Automated handling equipment
| Specification | Details |
|---|---|
| Product Code | MK5322 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/0,5M/ZH/ASR |
| Sensor Technology | GMR |
| Sensing Principle | Magnetic |
| Cylinder Profile | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Fastening Clamp | Stainless steel |
| Cable Length | 0.5 m |
| Connection | Cable with connector |
| Manufacturer | IFM electronic |
