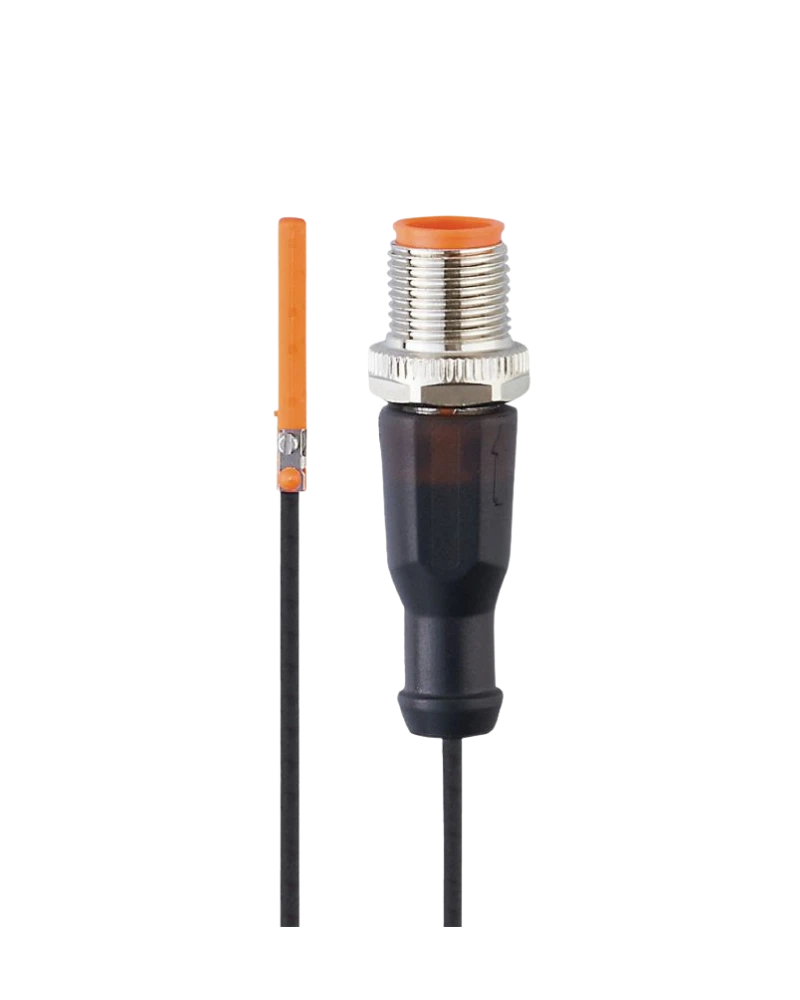

The IFM MK5317 C-slot cylinder sensor is designed for reliable position detection on pneumatic cylinders with C-shaped mounting slots. Its compact housing allows easy installation directly into the cylinder groove while providing accurate magnetic detection of piston position. The sensor operates from 10–30 V DC and uses a durable PUR cable with an M12 connector. Its IP65/IP67 protection and robust construction make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5317 provides dependable piston-position detection for pneumatic cylinder systems used in automated machinery. Its compact C-slot design allows the sensor to be installed directly into compatible cylinder profiles without requiring bulky mounting arrangements. The magnetic sensing principle detects the permanent magnet integrated into the cylinder piston. This enables reliable position feedback for machine sequencing, actuator control and automated motion monitoring.
The sensor combines a compact plastic housing with a stainless-steel fastening clamp for secure positioning inside the cylinder slot. Its magnetic sensing technology supports rapid detection while maintaining repeatable switching performance. The PNP normally-open output can be connected directly to suitable PLC inputs and automation controllers. A yellow LED provides convenient visual indication of output status during commissioning and maintenance.
The MK5317 is designed for flush mounting in C-slot pneumatic cylinders and provides convenient installation using its integrated fastening arrangement. The 1 m PUR cable with M12 connector simplifies connection to industrial control systems. Its IP65/IP67 protection supports operation in typical industrial environments. The sensor is suitable for automated machinery, pneumatic handling systems, packaging equipment and production-line actuators.
C-slot cylinder sensor
Magnetic piston position detection
Compact flush-mountable housing
PNP normally-open output
10–30 V DC operating voltage
1 m PUR cable
M12 A-coded connector
Yellow LED output indication
Reverse polarity protection
Short-circuit protection
Overload protection
IP65/IP67 protection
Stainless-steel fastening clamp
Fast piston-position detection
Suitable for pneumatic cylinders
Pneumatic cylinder position monitoring
Industrial automation machinery
Packaging machines
Material handling systems
Assembly equipment
Robotic pneumatic actuators
Conveyor automation
Machine sequencing
Pick-and-place equipment
Production-line automation
| Specification | Details |
|---|---|
| Product Code | MK5317 |
| Brand | IFM |
| Product Type | C-slot cylinder sensor |
| Model | MKC3028BBPKG/G/1M/ZH/US |
| Sensor Principle | Magnetic |
| Sensor Technology | GMR |
| Cylinder Type | C-slot |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10 kHz |
| Magnetic Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | Approx. 1.5 mm |
| Repeatability | <0.2 mm |
| Ambient Temperature | -25 to 85 °C |
| Protection Rating | IP65/IP67 |
| Housing Material | PA |
| Clamp Material | Stainless steel |
| Cable | PUR |
| Cable Length | 1 m |
| Connector | M12, A-coded |
| Status Indicator | Yellow LED |
| Mounting | Flush mounting |
| Manufacturer | IFM electronic |
