MK5315 is a flush C-slot cylinder sensor with GMR magnetic sensing. It provides a PNP normally open output and operates from 10…30 V DC. The sensor offers 2.8 mT magnetic sensitivity and 10 kHz switching performance. Its 0.5 m cable provides convenient connection length for compact machines. The M8 interface and IP65/IP67 protection support industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5315 detects the magnetic piston position without mechanical contact. Its GMR sensing cell provides reliable switching. The 2.8 mT sensitivity supports stable piston detection. The 10 kHz switching frequency supports fast pneumatic cycles. This makes the sensor suitable for high-speed automated machinery.
The PNP normally open output operates from 10…30 V DC. Current consumption is below 10 mA. Output current capability is 100 mA. Short-circuit and overload protection are included. Reverse polarity protection supports electrical reliability.

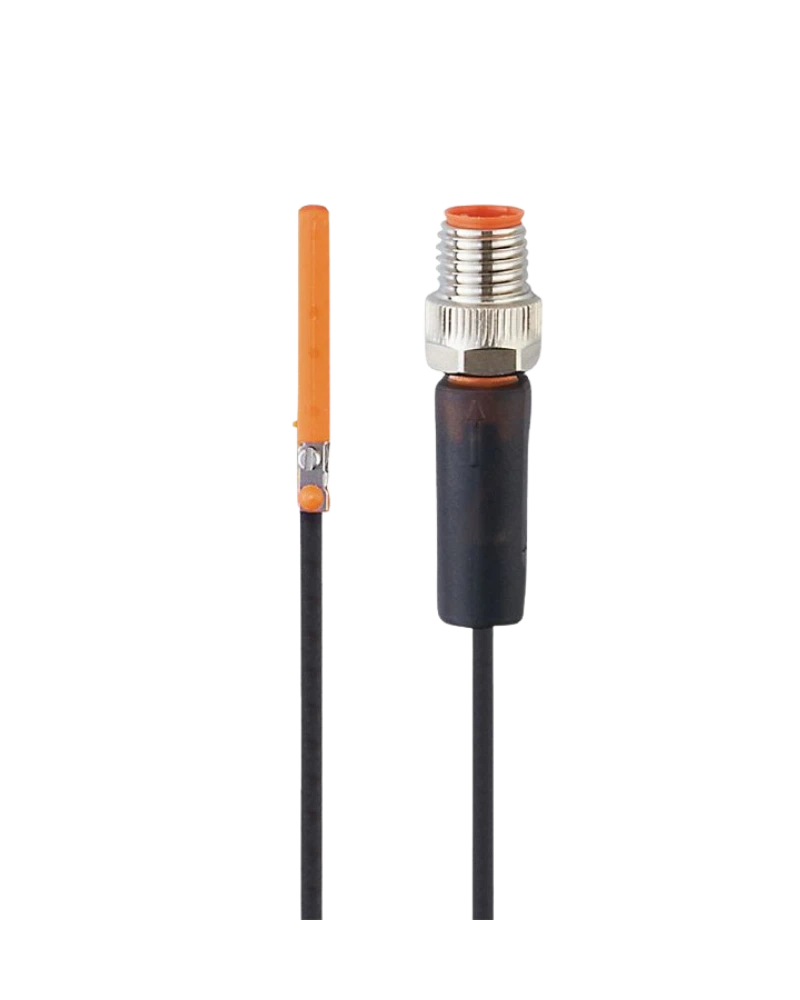

MK5315 uses a flush C-slot housing. Its compact body is designed for narrow cylinder slots. The 0.5 m cable provides flexible wiring. The M8 connector supports industrial connection. A yellow LED provides switching-status indication.
GMR cell
C-slot cylinder sensor
PNP output
Normally open
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
0.5 m cable
M8 connector
Flush mounting
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Short-circuit protection
Overload protection
C-slot cylinders
Pneumatic automation
Robotic machinery
Packaging systems
Assembly lines
Material handling
Machine tools
Factory automation
Pneumatic grippers
Cylinder position feedback
The 10 kHz switching frequency supports rapid cylinder movements. GMR detection provides contactless switching. The 2.8 mT sensitivity supports reliable piston recognition. Low hysteresis improves switching repeatability. This makes MK5315 suitable for high-cycle machinery.
The 0.5 m cable provides convenient connection length. The M8 connector supports standard automation wiring. The flush body minimises interference with machine structures. The stainless-steel clamp supports secure positioning. This simplifies machine installation.
| Specification | MK5315 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5315 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BBPKG/G/0,5M/ZH/ASR |
| Sensor technology | GMR |
| Electrical design | PNP |
| Output function | Normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.5 m PUR |
| Connector | M8 |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
