MK5314 is a flush C-slot cylinder sensor with GMR sensing technology. It provides a PNP normally open output and operates from 10…30 V DC. The sensor offers 2.8 mT magnetic sensitivity and 10 kHz switching frequency. Its compact 26.1 × 2.8 × 5.5 mm body supports flush installation. A 0.3 m PUR cable with M12 connection provides robust industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The GMR cell provides contactless magnetic piston detection. Its 2.8 mT sensitivity supports reliable switching. The 10 kHz frequency supports rapid cylinder movement. The PNP normally open output provides direct PLC integration. This makes MK5314 suitable for automated pneumatic equipment.

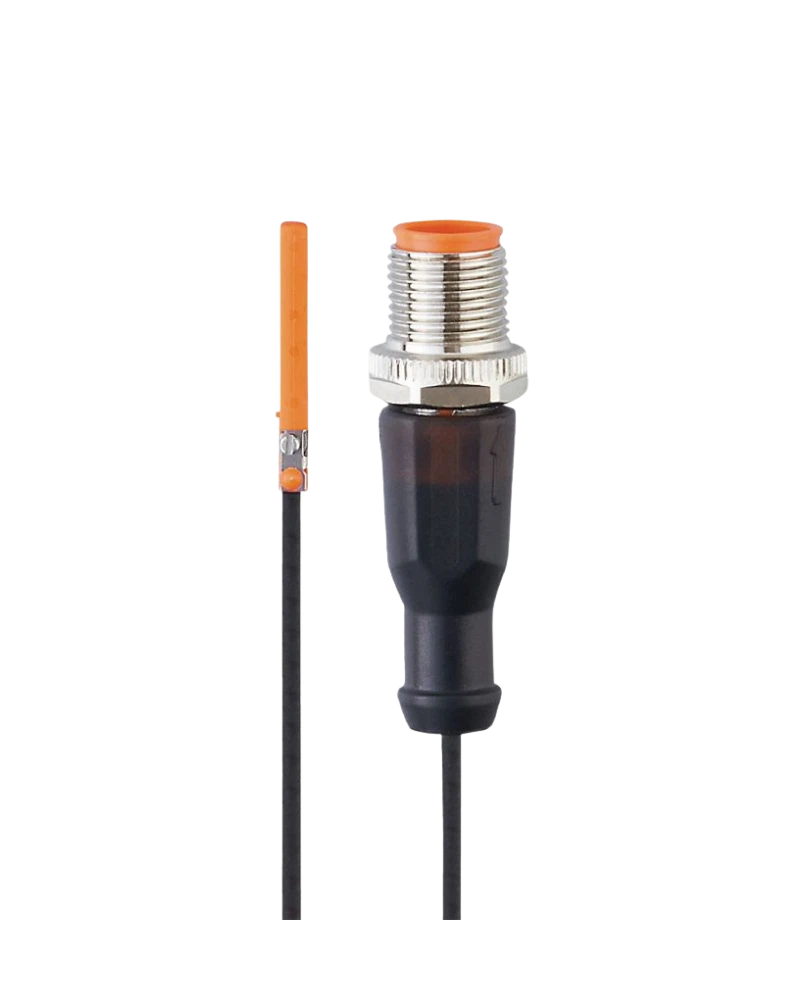

MK5314 uses a 0.3 m PUR cable. The cable terminates in an A-coded M12 connector. The connector uses a rotatable knurled locking nut. This provides a secure industrial connection. The configuration is suitable for machine wiring.
The flush body measures 26.1 × 2.8 × 5.5 mm. The housing is PA with a stainless-steel fastening clamp. IP65/IP67 protection supports industrial environments. A yellow LED provides switching status. The compact design supports narrow C-slot cylinders.
GMR cell
PNP design
Normally open
Flush mounting
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
0.3 m PUR cable
M12 connector
A-coded connection
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Short-circuit protection
Overload protection
C-slot cylinders
Pneumatic automation
Packaging machines
Assembly equipment
Robotics
Material handling
Machine tools
Factory automation
Production lines
Cylinder position sensing
The M12 connector provides a secure machine connection. The rotatable knurled nut supports practical cable routing. The PUR cable provides flexible industrial wiring. The sensor remains compact at the cylinder. This makes MK5314 suitable for automated machinery.
The yellow LED helps technicians verify switching. The GMR cell provides contactless operation. The fastening clamp supports repeatable positioning. The M12 interface simplifies replacement. These features support efficient machine servicing.
| Specification | MK5314 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5314 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BBPKG/G/0,3M/ZH/US |
| Sensor technology | GMR |
| Electrical design | PNP |
| Output function | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M12 A-coded |
| Protection | IP65/IP67 |
