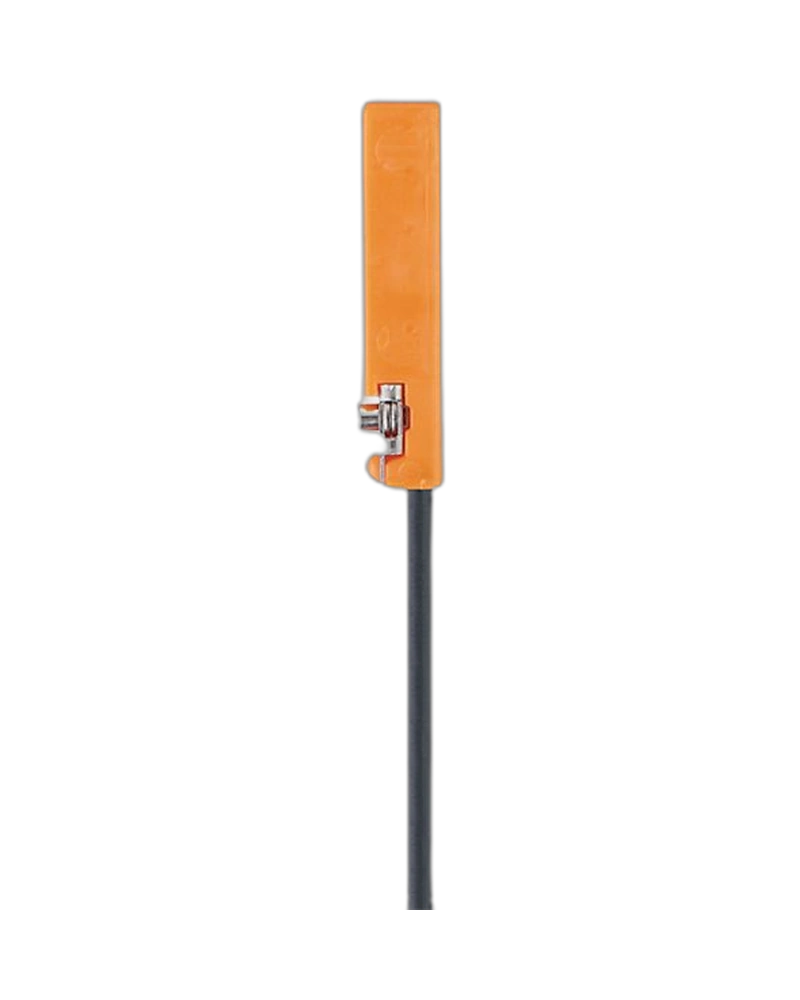

MK5312 is a flush C-slot cylinder sensor with GMR sensing technology. It uses a PNP normally open output for reliable piston-position detection. The sensor operates from 10…30 V DC and supports 10 kHz switching. Its compact 26.1 × 2.8 × 5.5 mm housing supports space-saving installation. A 2 m PUR cable provides extended connection to control equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The GMR cell detects the piston magnet without physical contact. Its 2.8 mT sensitivity supports reliable position switching. The sensor supports fast pneumatic movement. High switching frequency allows rapid machine sequencing. This makes it suitable for demanding automation systems.
MK5312 provides a PNP normally open output. It operates from 10…30 V DC. Current consumption is below 10 mA. The output supports 100 mA continuous current. Short-circuit and overload protection improve electrical reliability.
The 2 m PUR cable provides extended connection reach. This helps when control cabinets are located away from cylinders. The moulded cable supports strain relief. The sensor body remains compact at the cylinder. IP65/IP67 protection supports industrial use.
GMR sensing cell
PNP output
Normally open
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
2 m PUR cable
Flush mounting
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Short-circuit protection
Overload protection
Reverse polarity protection
C-slot cylinders
Large automation machines
Packaging lines
Assembly systems
Robotics
Material handling
Machine tools
Factory automation
Production equipment
Pneumatic grippers
The 2 m cable provides additional installation flexibility. It can reach remote control panels without immediate extension. The PUR cable supports industrial machine routing. The compact sensor stays close to the piston. This makes the sensor useful on larger machines.
The yellow LED provides immediate switching feedback. The GMR cell avoids mechanical contact wear. The fastening clamp supports stable positioning. The long cable reduces additional connection components. This helps simplify maintenance.
| Specification | MK5312 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5312 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BBPKG/G/ZH |
| Sensor technology | GMR |
| Electrical design | PNP |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 2 m PUR |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
| Product category | GMR cylinder sensor |
