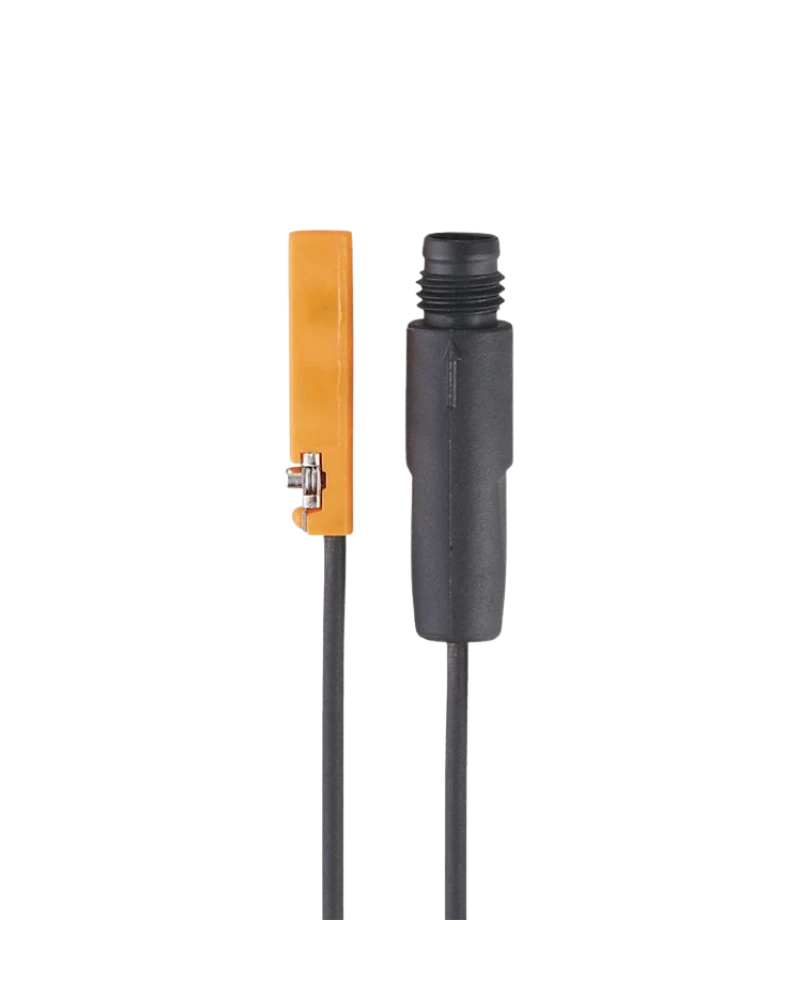

MK5310 is a flush C-slot cylinder sensor with a GMR sensing cell. It provides a PNP normally open output and operates from 10…30 V DC. The sensor supports 10 kHz switching and 2.8 mT magnetic sensitivity. Its 26.1 × 2.8 × 5.5 mm housing provides compact installation. A 0.3 m PUR cable with M8 connector supports industrial automation wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5310 uses GMR technology for reliable piston-position sensing. The 2.8 mT magnetic sensitivity provides dependable switching. The 10 kHz switching frequency supports fast pneumatic cycles. Its PNP normally open output interfaces with common PLC inputs. This makes it suitable for automated cylinder control.
The sensor has a narrow 26.1 × 2.8 × 5.5 mm profile. This allows flush installation in C-slot cylinders. The stainless-steel fastening clamp maintains mechanical position. The PA housing provides lightweight construction. A yellow LED provides visible switching feedback.
MK5310 operates from 10…30 V DC. Current consumption is below 10 mA. Its output supports 100 mA continuous current. Short-circuit and overload protection are integrated. IP65/IP67 protection supports industrial environments.
GMR cell
PNP design
Normally open
C-slot mounting
Flush installation
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
0.3 m PUR cable
M8 connector
26.1 × 2.8 × 5.5 mm
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
C-slot cylinders
Pneumatic automation
Robotics
Packaging machinery
Assembly equipment
Material handling
Machine tools
Factory automation
Pneumatic grippers
Position detection
The GMR cell provides contactless magnetic detection. The narrow housing fits compact C-slot cylinders. High switching frequency supports rapid pneumatic sequences. The sensor provides repeatable position feedback. This makes MK5310 suitable for high-cycle machines.
The yellow LED allows quick status checking. The M8 connection simplifies cable replacement. The self-locking fastening arrangement supports sensor adjustment. The moulded PUR cable provides strain relief. This reduces maintenance effort.
| Specification | MK5310 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5310 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BBPKG/G/0,3M/ZH/AS |
| Sensor technology | GMR |
| Electrical design | PNP |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
