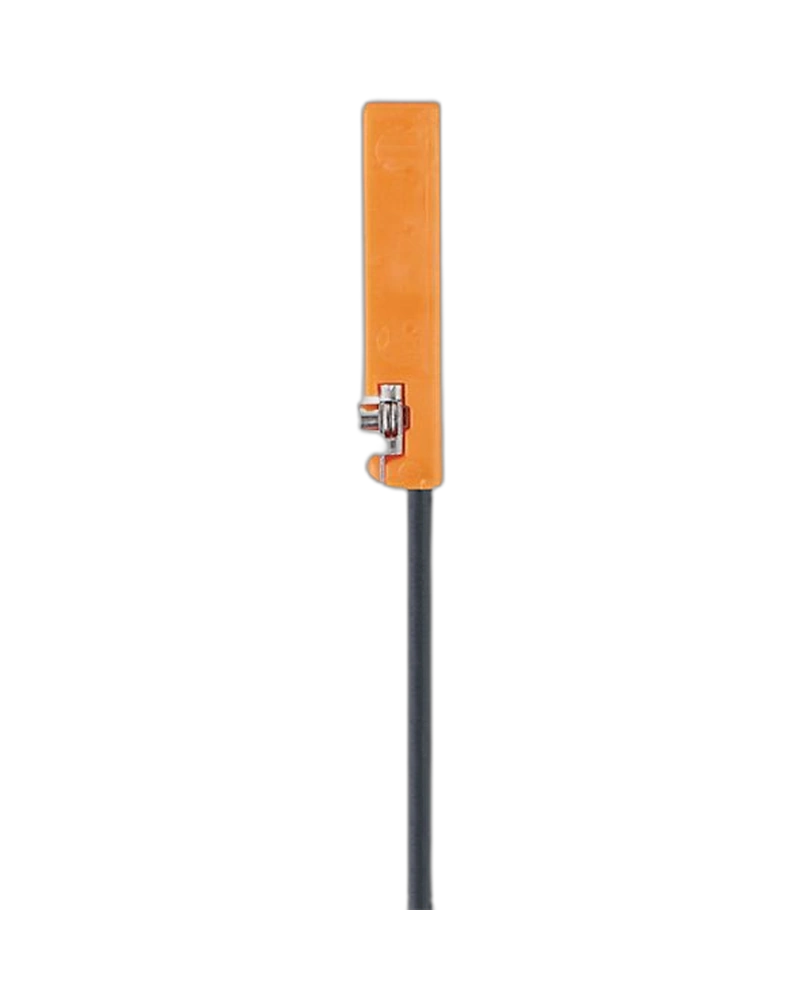

MK5309 is a flush C-slot cylinder sensor with a GMR sensing cell. It uses an NPN normally open output and operates from 10…30 V DC. The sensor provides 2.8 mT magnetic sensitivity and 10 kHz switching frequency. Its 26.1 × 2.8 × 5.5 mm compact housing supports flush installation. The 2 m cable provides extended machine connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5309 uses GMR technology for contactless piston detection. The 2.8 mT magnetic sensitivity supports reliable switching. Its 10 kHz frequency allows fast pneumatic movement detection. The NPN output is suitable for sinking-input control systems. This provides dependable machine feedback.
The 2 m cable provides extended connection reach. This is useful when the control cabinet is positioned away from the cylinder. It reduces the need for additional cable extensions. The sensor remains compact at the machine. This makes MK5309 useful for larger automation systems.
The sensor uses a flush C-slot design. Its PA housing and stainless-steel fastening clamp provide mechanical support. The yellow LED indicates switching status. IP65/IP67 protection supports industrial conditions. The compact profile allows installation in restricted spaces.
GMR cell
NPN output
Normally open
C-slot mounting
Flush installation
10…30 V DC
<10 mA
100 mA output
10,000 Hz
2.8 mT sensitivity
2 m cable
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Short-circuit protection
Overload protection
C-slot cylinders
Large automation machines
Packaging systems
Assembly equipment
Robotics
Material handling
Machine tools
Factory automation
Pneumatic grippers
Position monitoring
The 2 m cable provides additional installation reach. It is suitable for machines with remote control cabinets. The direct cable connection reduces extra connection points. This can simplify machine wiring. The sensor remains compact at the cylinder.
The narrow body fits directly into C-slot cylinder arrangements. Flush installation reduces interference with surrounding machine components. GMR sensing provides contactless operation. The LED supports commissioning. This provides a practical compact sensor solution.
| Specification | MK5309 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5309 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BANKG/G/ZH |
| Sensor technology | GMR |
| Electrical design | NPN |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 2 m |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
