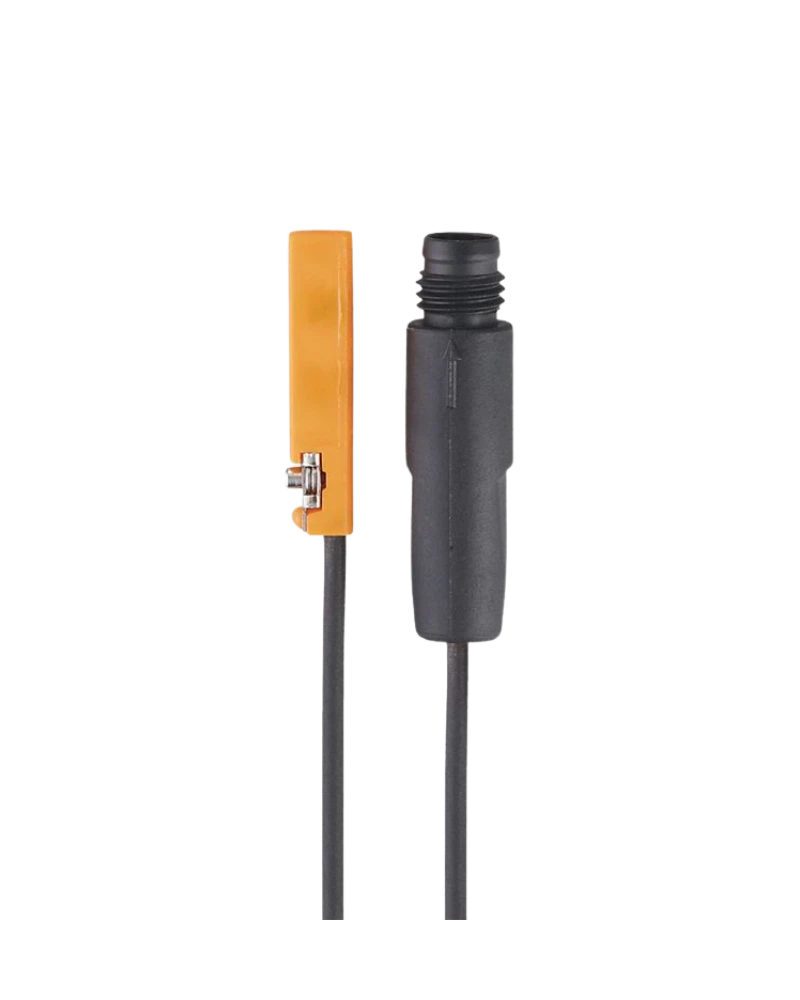

MK5308 is a flush C-slot cylinder sensor using a GMR sensing cell. It provides an NPN normally open output and operates from 10…30 V DC. The sensor supports 10 kHz switching and 2.8 mT magnetic sensitivity. Its compact 26.1 × 2.8 × 5.5 mm housing is designed for flush mounting. A 0.3 m PUR cable with M8 connector provides industrial connectivity.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5308 uses a GMR cell for magnetic piston detection. The 2.8 mT sensitivity provides reliable switching. Its 10 kHz switching frequency supports high-speed pneumatic movement. The NPN normally open output provides sinking-type switching. This makes the sensor suitable for compact automation.
The sensor is designed for flush installation in C-slot cylinders. Its 26.1 × 2.8 × 5.5 mm dimensions provide a narrow profile. This helps maintain clearance around the cylinder. The stainless-steel clamp provides mechanical retention. The yellow LED indicates switching status.
The sensor operates from 10…30 V DC. Current consumption is below 10 mA. The output supports 100 mA continuous current. Short-circuit and overload protection are included. IP65/IP67 protection supports industrial installations.
GMR cell
C-slot sensor
NPN design
Normally open
Flush mounting
10…30 V DC
<10 mA
100 mA output
10,000 Hz switching
2.8 mT sensitivity
0.3 m PUR cable
M8 connector
26.1 × 2.8 × 5.5 mm
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
C-slot cylinders
Compact pneumatic systems
Small machines
Robotic automation
Packaging machinery
Assembly equipment
Material handling
Machine tools
Factory automation
Pneumatic grippers
The narrow profile is suitable for C-slot cylinders where clearance is limited. Flush installation keeps the sensor close to the cylinder body. GMR sensing provides contactless detection. The compact dimensions support small pneumatic assemblies. This makes MK5308 useful for dense machine layouts.
The sensor provides short-circuit and overload protection. Reverse polarity protection supports electrical safety. The moulded cable provides strain relief. IP65/IP67 protection supports industrial environments. The visible LED assists maintenance and commissioning.
| Specification | MK5308 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5308 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028BANKG/G/0,3M/ZH/AS |
| Sensor technology | GMR |
| Electrical design | NPN |
| Output function | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 26.1 × 2.8 × 5.5 mm |
| Mounting | Flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
