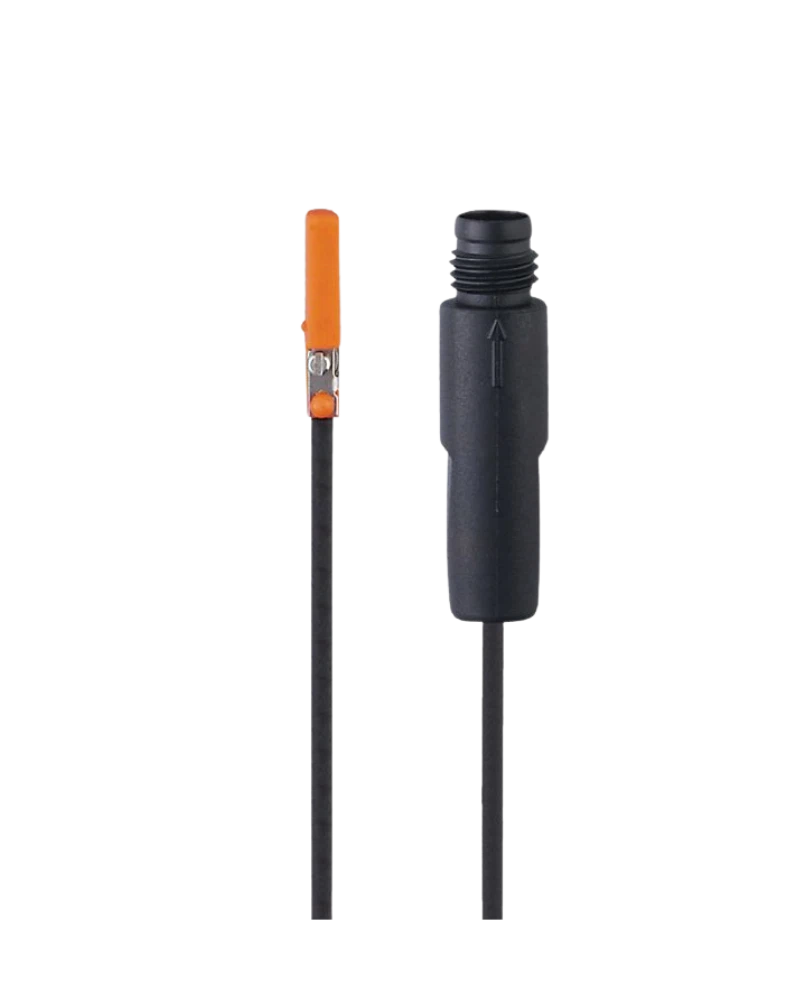

MK5307 is a compact C-slot cylinder sensor with an NPN normally open output. It provides reliable piston-position detection for pneumatic cylinders. The sensor operates from 10…30 V DC and supports 10 kHz switching. Its 0.3 m cable and M8 connector provide compact machine integration. The short housing is suitable for short-stroke cylinders and small grippers.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5307 is designed for short installation spaces. Its compact housing fits C-slot cylinders and small grippers. The self-locking fixture supports quick adjustment. The moulded cable provides strain relief. The visible switching LED assists commissioning.
The sensor uses an NPN normally open output. It operates from 10…30 V DC. Output current reaches 100 mA. Short-circuit and overload protection are included. This supports dependable integration with suitable PLC inputs.
MK5307 provides 10 kHz switching performance. Its 2.8 mT sensitivity supports reliable magnetic piston detection. Travel speed capability exceeds 10 m/s. Hysteresis remains below 1.5 mm. Repeatability is better than 0.2 mm.
C-slot sensor
NPN output
Normally open
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
10 m/s travel speed
0.3 m cable
M8 connector
Short housing
Self-locking fixture
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Short-stroke cylinders
Small grippers
Pneumatic automation
Robotic systems
Packaging equipment
Assembly machines
Machine tools
Material handling
Factory automation
Cylinder position detection
The compact design is suitable for short-stroke pneumatic cylinders. It can also be used on small pneumatic grippers. The short cable helps maintain a compact installation. The self-locking fixture supports quick positioning. This makes MK5307 practical for space-limited automation.
The visible LED makes switching status easy to verify. The mounting mechanism allows straightforward adjustment. The M8 connection simplifies replacement. The cable design supports reliable strain relief. These features reduce maintenance effort.
| Specification | MK5307 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5307 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028-ANKG/G/0,3M/ZH/AS |
| Sensor principle | Magnetic |
| Electrical design | NPN |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Mounting | Non-flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
