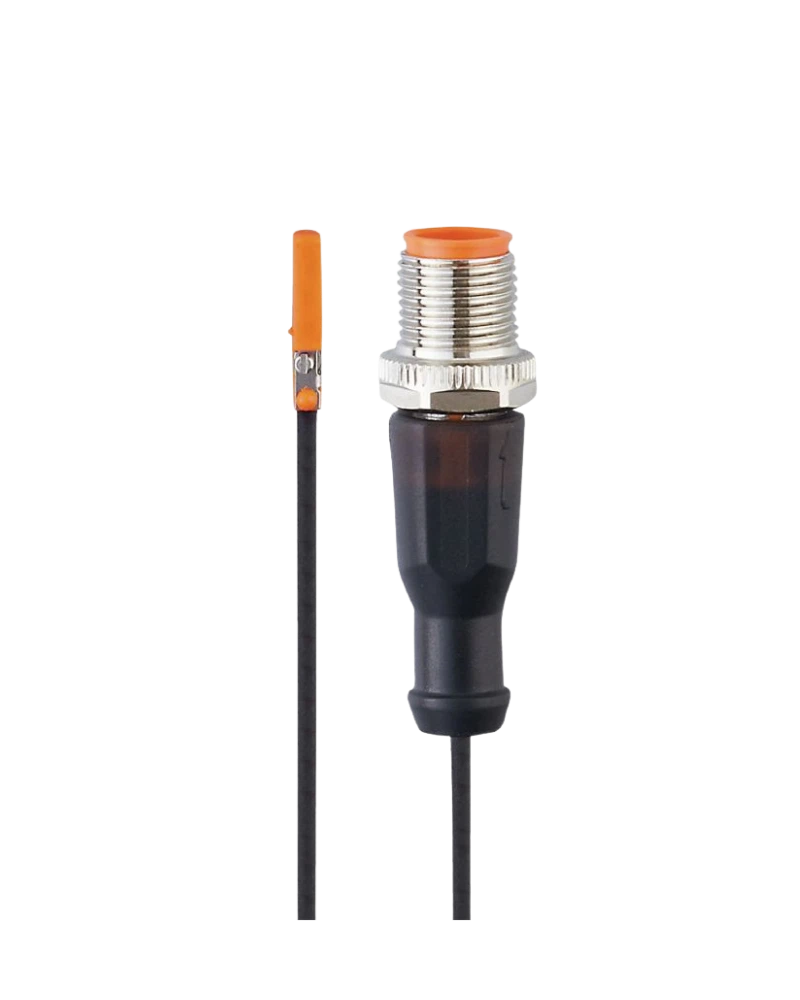

MK5304 is a non-flush C-slot cylinder sensor with a PNP normally open output. It operates from 10…30 V DC and supports 10 kHz switching frequency. The sensor provides 2.8 mT magnetic sensitivity and 100 mA output capability. Its 17.5 × 2.8 × 7.7 mm housing provides compact installation. A 0.3 m connection with M12 interface supports industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5304 is designed for reliable piston detection in C-slot cylinders. Magnetic sensing eliminates mechanical contact. The 2.8 mT sensitivity supports reliable switching. The 10 kHz switching frequency supports rapid pneumatic movements. This makes the sensor suitable for high-speed automation.
The sensor operates from 10…30 V DC. Current consumption remains below 10 mA. Its PNP normally open output supports 100 mA. Short-circuit and overload protection are included. Reverse polarity protection supports dependable operation.
MK5304 uses a compact non-flush C-slot housing. The dimensions are 17.5 × 2.8 × 7.7 mm. The body uses PA with a stainless-steel fastening clamp. The connection uses a 0.3 m cable and M12 connector. IP65/IP67 protection supports industrial conditions.
C-slot sensor
PNP output
Normally open
10…30 V DC
<10 mA
100 mA output
10 kHz switching
2.8 mT sensitivity
0.3 m cable
M12 connector
PA housing
Stainless-steel clamp
Non-flush mounting
Yellow LED
IP65/IP67
Short-circuit protection
Overload protection
C-slot cylinders
Pneumatic machinery
Packaging lines
Assembly automation
Robotic systems
Material handling
Machine tools
Production equipment
Factory automation
Cylinder position monitoring
The non-flush design provides straightforward C-slot installation. The M12 connector offers robust industrial connection. The compact housing minimises installation space. The yellow LED provides status indication. This supports efficient machine commissioning.
Magnetic detection provides contactless piston sensing. The high switching frequency supports rapid pneumatic cycles. The 2.8 mT sensitivity provides dependable detection. Low hysteresis improves position repeatability. This helps maintain accurate automated movement sequences.
| Specification | MK5304 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5304 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028-BPKG/G/0,3M/ZH/US |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output function | Normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Voltage drop | 2.5 V |
| Output current | 100 mA |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 17.5 × 2.8 × 7.7 mm |
| Mounting | Non-flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m |
| Connector | M12 |
| Protection | IP65/IP67 |
