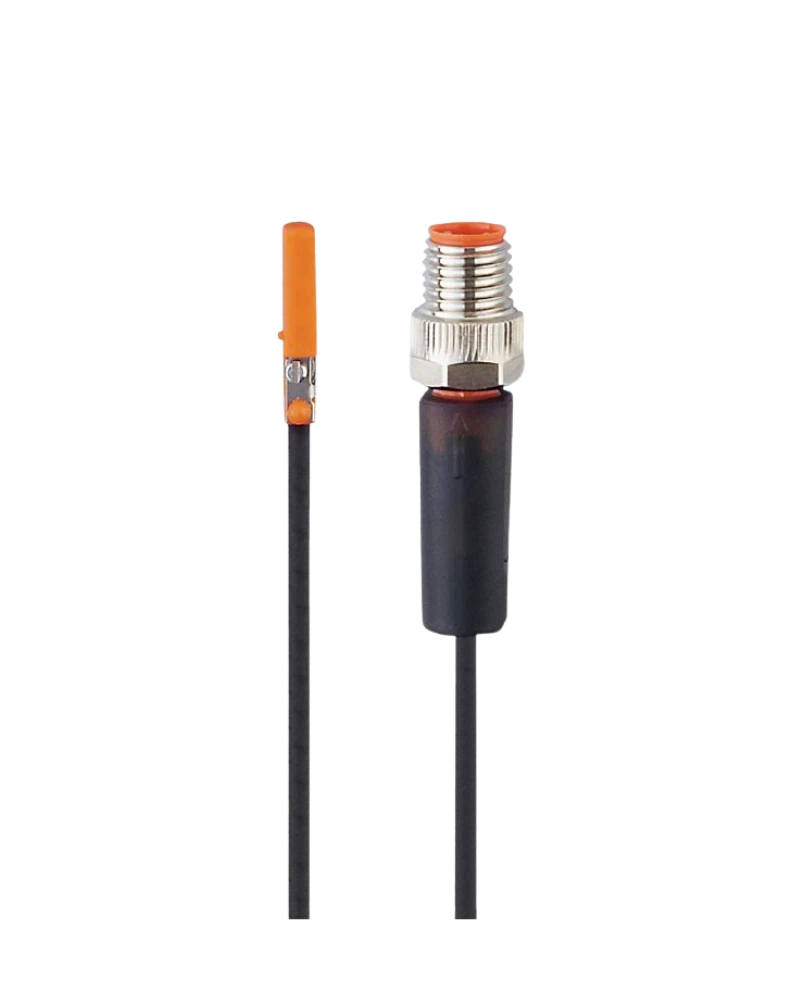

MK5302 is a C-slot cylinder sensor with a PNP normally open output. It provides 2.8 mT magnetic sensitivity for reliable piston-position detection. The sensor operates from 10…30 V DC and supports 10 kHz switching. Its compact housing is designed for non-flush C-slot installation. A 0.3 m PUR cable and M8 connection support industrial machine wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5302 detects the magnetic piston position without mechanical contact. The 2.8 mT sensitivity supports reliable switching. Its high switching frequency supports rapid pneumatic cycles. The normally open PNP output is suitable for PLC inputs. This makes the sensor useful for automated cylinder control.
The sensor accepts 10…30 V DC. Current consumption is below 10 mA. The output supports 100 mA continuous current. Short-circuit and overload protection are provided. Reverse polarity protection further supports reliable operation.
The C-slot housing is compact and suitable for non-flush installation. A 0.3 m cable provides direct connection to machine wiring. The M8 interface provides standard industrial connectivity. A stainless-steel clamp secures the sensor. IP65/IP67 protection supports industrial environments.
C-slot cylinder sensor
PNP output
Normally open
10…30 V DC
<10 mA consumption
100 mA output
10,000 Hz switching
2.8 mT sensitivity
0.3 m PUR cable
M8 connector
Non-flush mounting
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Reverse polarity protection
Short-circuit protection
Overload protection
Pneumatic cylinders
Automation machinery
Packaging equipment
Assembly machines
Robotics
Material handling
Machine tools
Production lines
Factory automation
Pneumatic grippers
Contactless magnetic detection eliminates mechanical switch wear. High-frequency operation supports rapid piston movement. The 2.8 mT sensitivity provides reliable detection. Low hysteresis supports repeatable switching. This helps maintain consistent machine sequences.
The compact construction makes sensor replacement straightforward. The M8 connector supports easy connection handling. LED indication helps confirm switching status. The stainless-steel clamp supports secure positioning. This reduces setup effort during maintenance.
| Specification | MK5302 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5302 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028-BPKG/G/0,3M/ZH/ASR |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 17.5 × 2.8 × 7.7 mm |
| Mounting | Non-flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Protection | IP65/IP67 |
